• LAN (RJ45): Allows wired network management, fast configuration transfers, and multi-sign connection over local networks.
• USB / U-Disk: Used for offline updates via FAT32 flash drives without needing an active network line.
• Serial (RS232 / RS485): Provides industrial integration for fixed control panels or legacy setups.
• Uses PowerLED software to manage multi-area partitioning, time/temperature displays, scrolling animations, and border effects.
• Supports wide ranges of scanning configurations (typically static up to 1/16 or 1/32 scan modes depending on the board) matching common HUB08, HUB12, and HUB75 matrix panels.
1.Correctly configuring the parameters of the LED control card is the primary and essential step to make the LED display screen function properly.The LED control card cannot function properly without any parameter settings.
2.If you are replacing the old control card, you must reconfigure the parameters in the controller program for the new LED display control card.

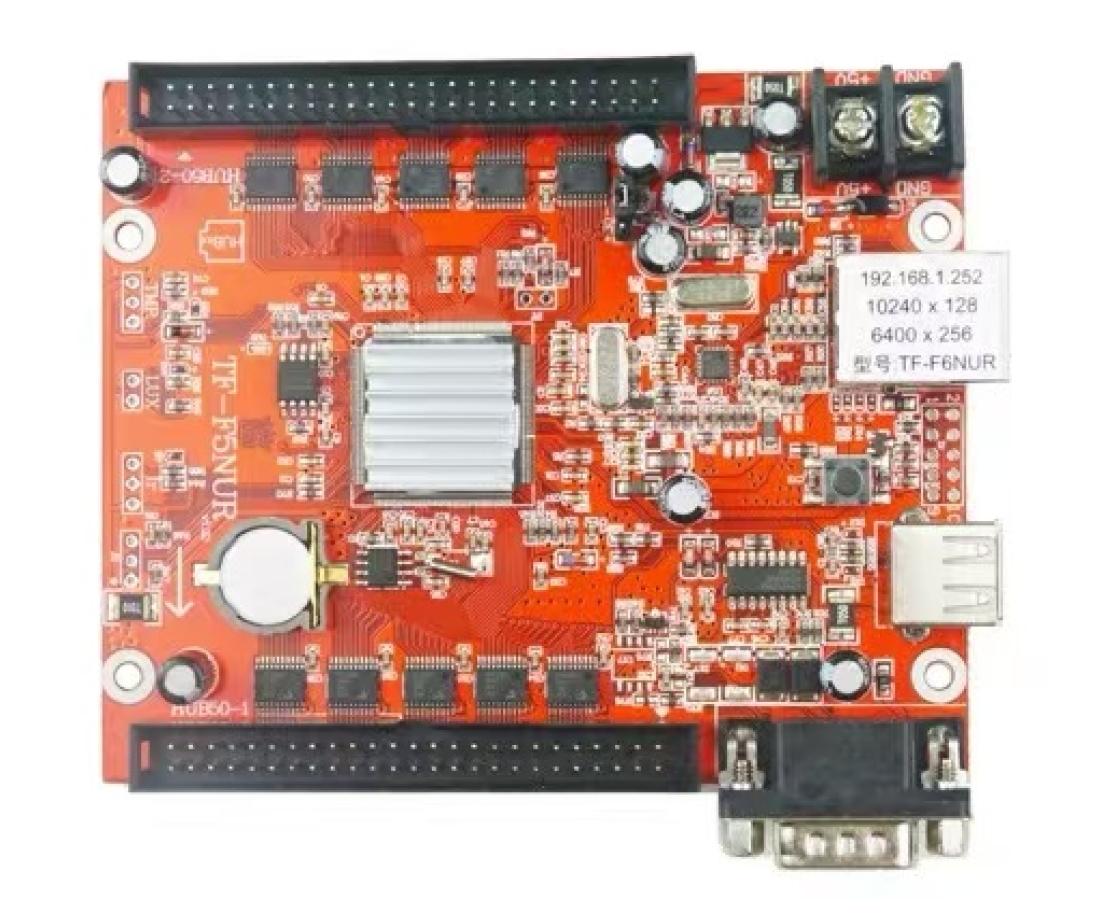

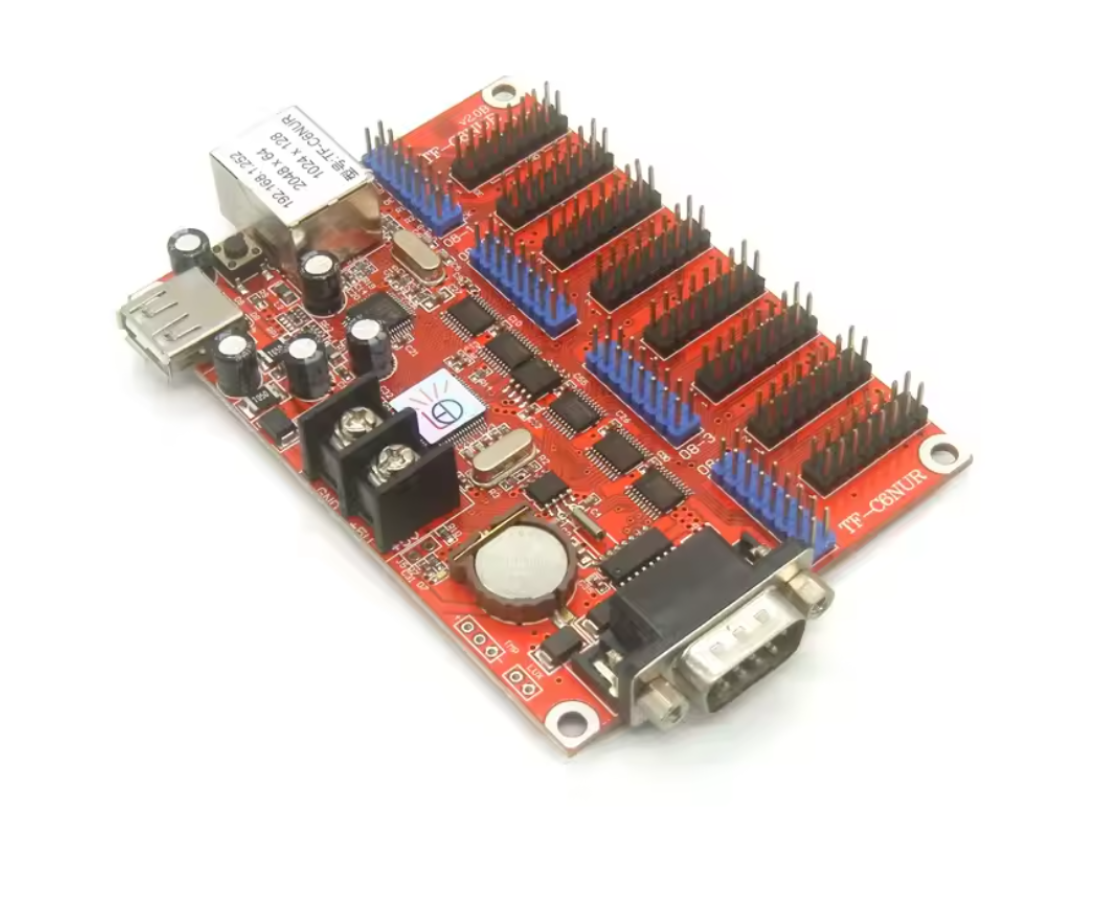

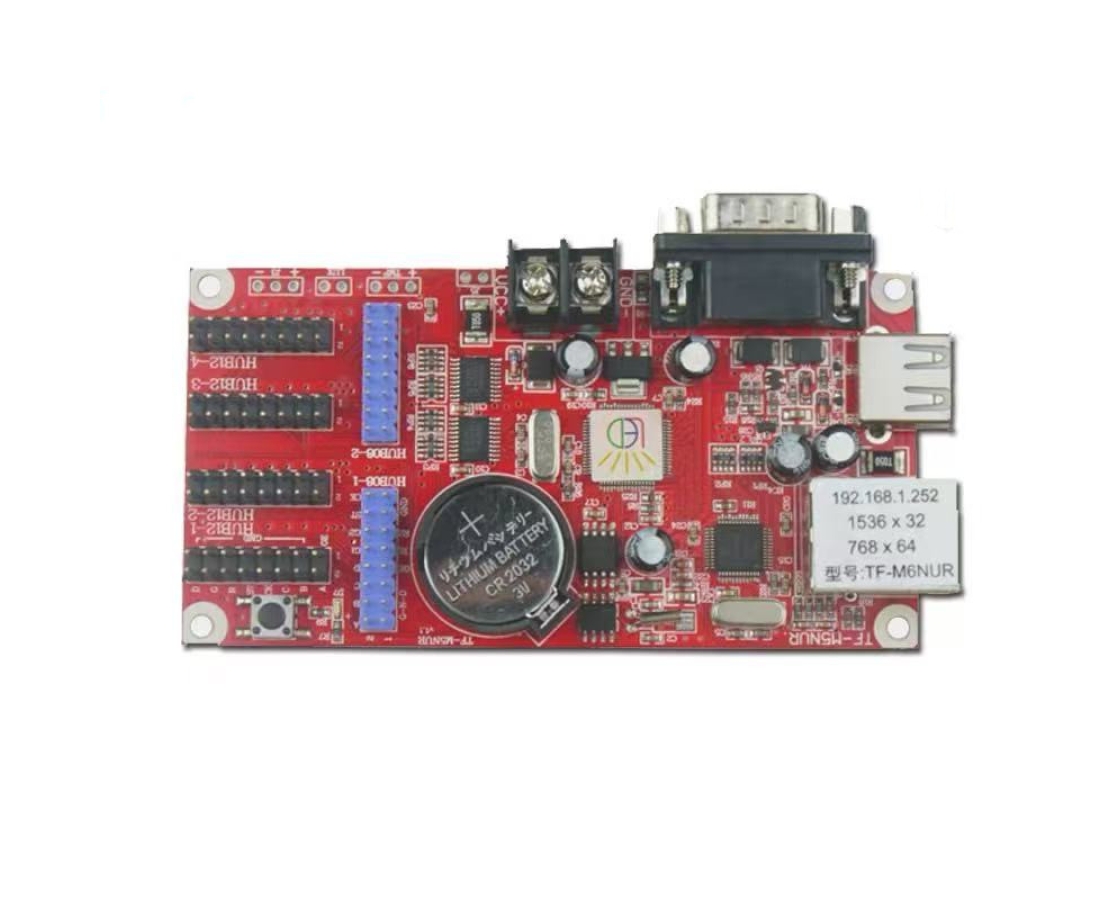

TF-M6NUR | C6NUR | F6NUR LED display controller
Communication: LAN / USB port,for updating program by U-disk(don't use USB extenstion cable)
Scanning mode: support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Day timer:0-9999 days
Timer :HH/MM/SS , Clock frame embeded
Temperature & Humidity display support (Optional: need additional temperature & humidity sensor), brightness sensor support
Storage capacity:2M
Program number:Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.（Quantity in storage space under the premise of memory）
Display:rain,fountain,scroll and much more
Border:support many Color border,Picture border
Flash format:support GIF,SWF
Image format:support BMP,JPG,GIF,WMF,ICO
Brightness:Level 16 highlighted,support manual
Test buttons:Test buttons on-board,can switch over to test mode and color test mode.
Electrical parameters:+5V DC(4.5V～6V),Power consumption<0.5W
Working temperature:-30℃～70℃
