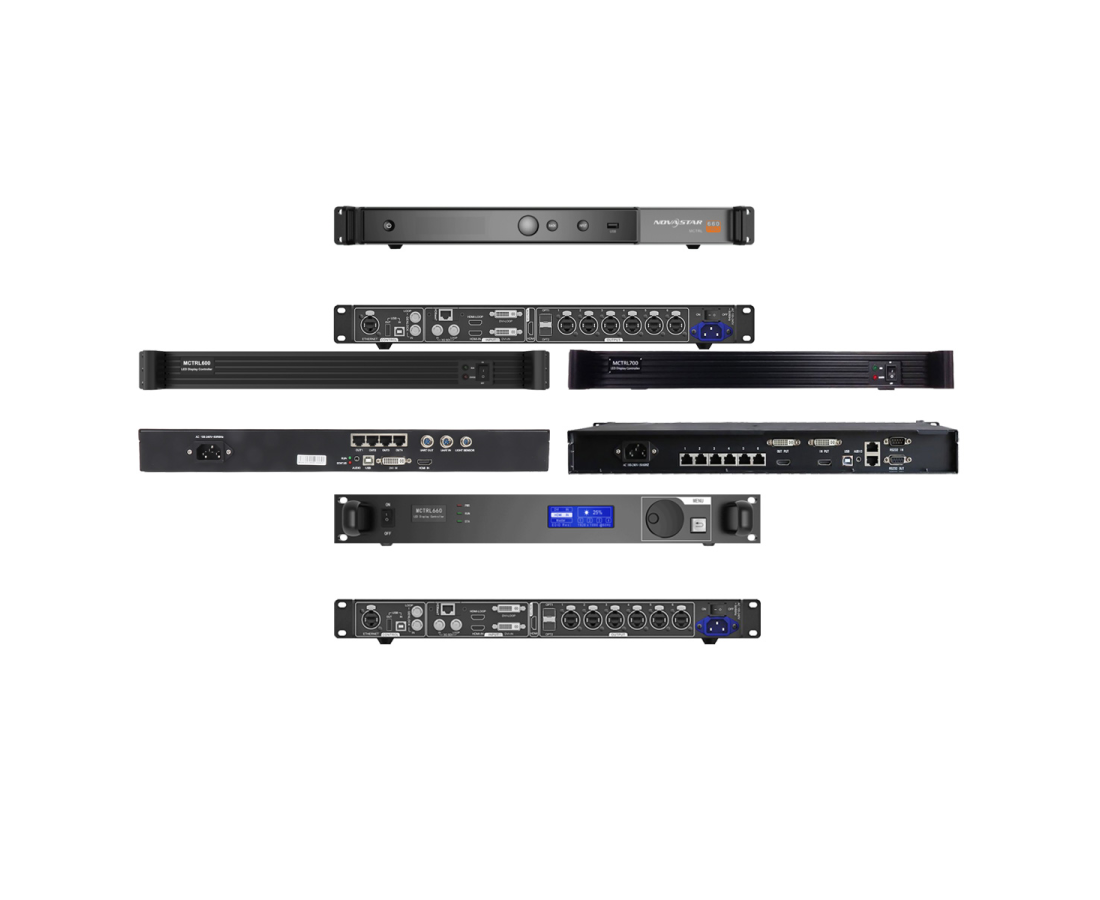

NovaStar Mctrl Series LED Sending Box MCTRL300 | MCTRL600 | MCTRL660 | MCTRL700

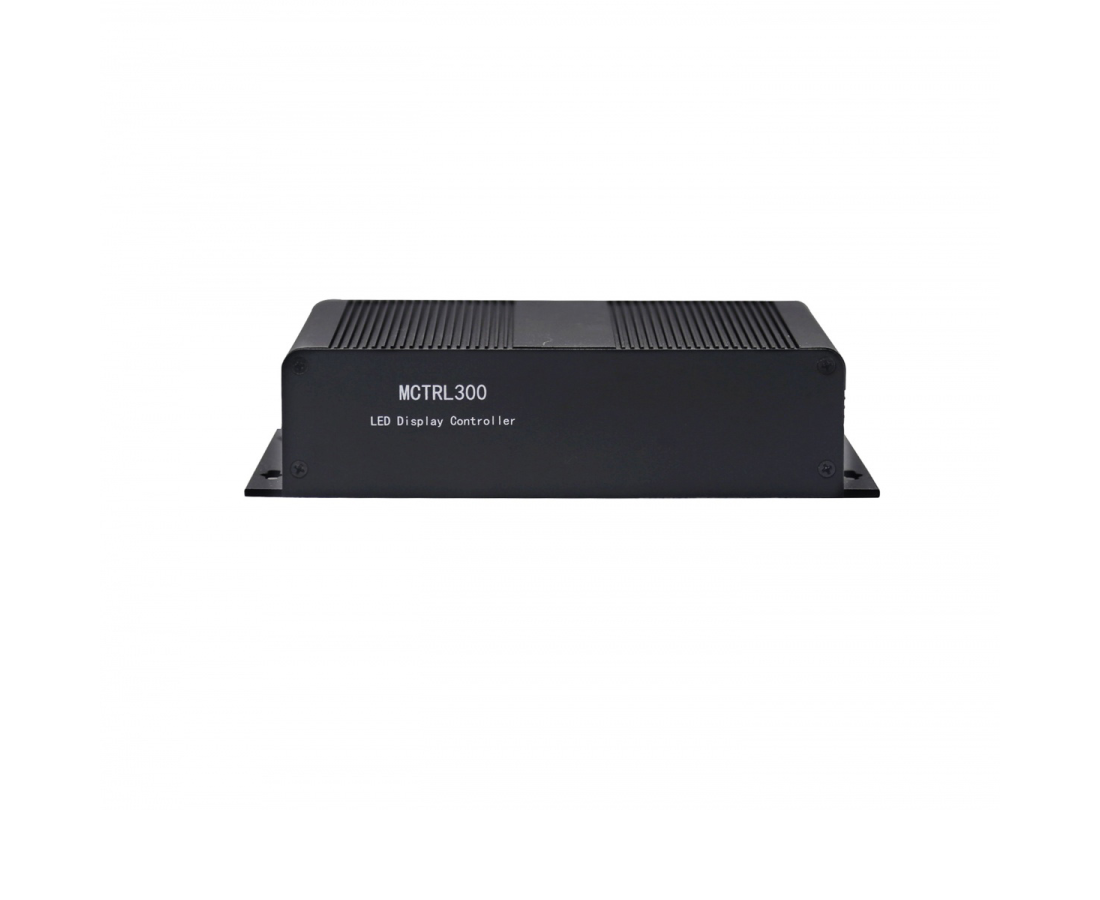

1. Mctrl300 LED Display Controller Features:

1). 1 × DVI input
2). 1 × audio input
3). 1 × type-B USB control port
4). ART control ports to cascade devices for uniform control.
5). Dual Ethernet outputs.
6). Supports the new generation of NovaStar calibration technology, which is fast and efficient.
7). 1 × light sensor connector.
8). Supports resolutions up to 2048×668@60Hz and downward compatibility.
9). Supports a variety of video formats.

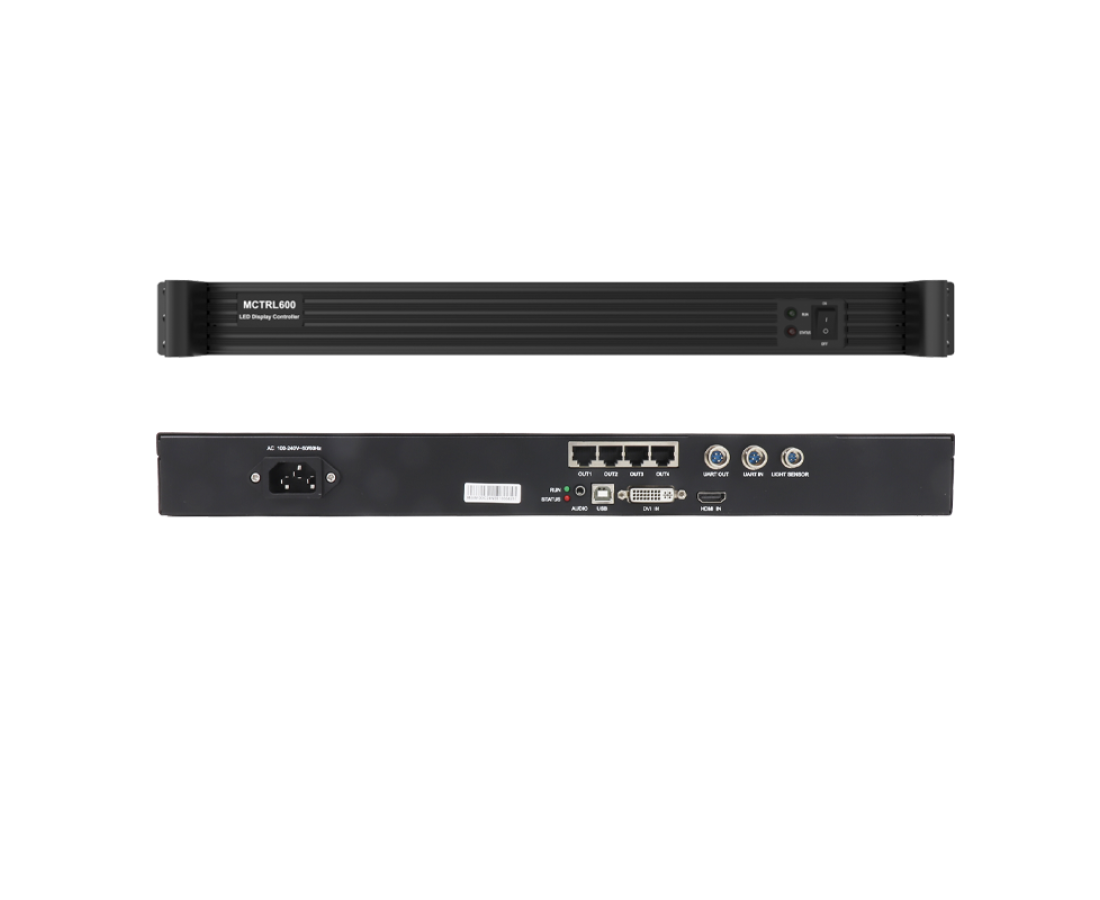

2. MCTRL600 Independent Controller Features:

1). 1 × DVI input
2). 1 × HDMI 1.3 input
3). 1 × audio input
4). 1 × light sensor connector
5). Supports resolutions up to 1920×1200@60Hz and downward compatibility.
6). 4 ×RJ45Gigabit Ethernet outputs, each up to 650,000 pixels.
7). 1 × type-B USB control port.
8). UART IN and UART OUT control ports for device cascading.
9). Supports the new generation of NovaStar calibration technology, which is fast and efficient.
10). Supports a variety of video formats.

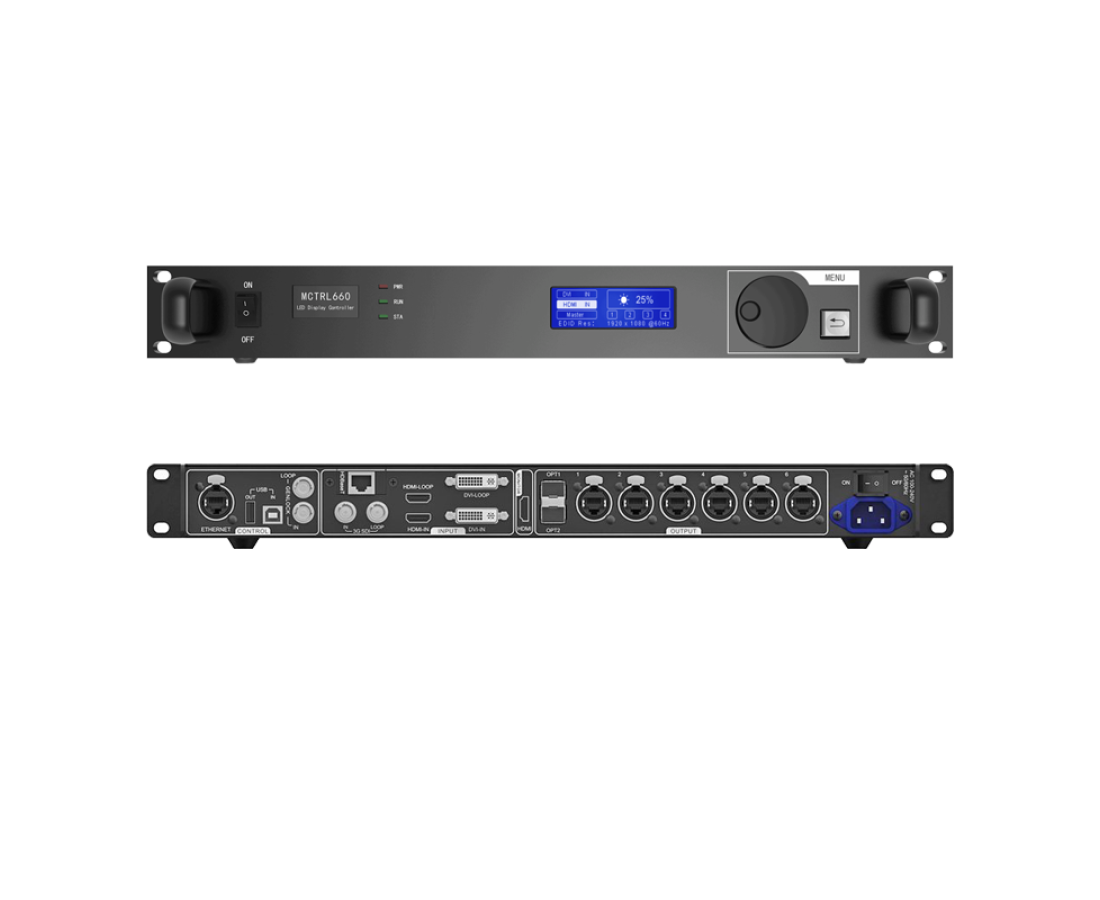

3. MCTRL660 Independent Controller Features:

1). 1 × DVI input
2). 1 × HDMI input
3). 4 × Gigabit Ethernet outputs
4). Supports the new generation of NovaStar calibration technology, which is fast and efficient.
5). Supports resolutions up to 1920×1200@60Hz and downward compatibility.
6). Multiple controllers can be cascaded.
7). Supports 18-bit grayscale processing and display.
8). Manual screen brightness adjustment, which is fast and convenient.
9). Quick screen configuration without using a computer.
10). Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.
11). Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.
12). Supports a variety of video formats.

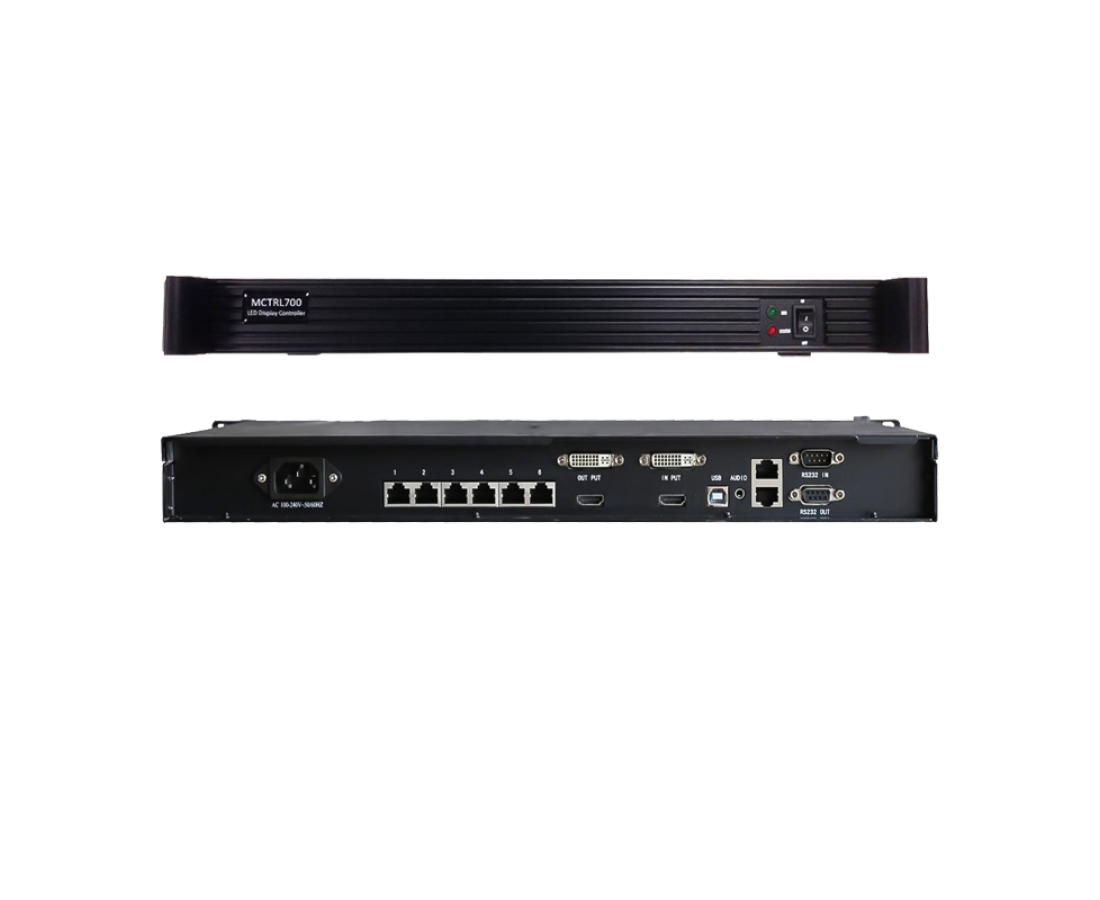

4. MCTRL700 Independent Controller Features:

1). 3 × Input connectors
a. 1×SL-DVI (IN-OUT)
b. 1×HDMI 1.3 (IN-OUT)
c. 1×AUDIO
2). 6×Gigabit Ethernet outputs
3). 1×Type-B USB control port
4). 2×UART control ports
5). Used for device cascading. Up to 20 devices can be cascaded.
6). Pixel level brightness and chroma calibration.
7) Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
