NovaStar CMS130 | CMS260 All‑in‑One LED Display Video Processor Description

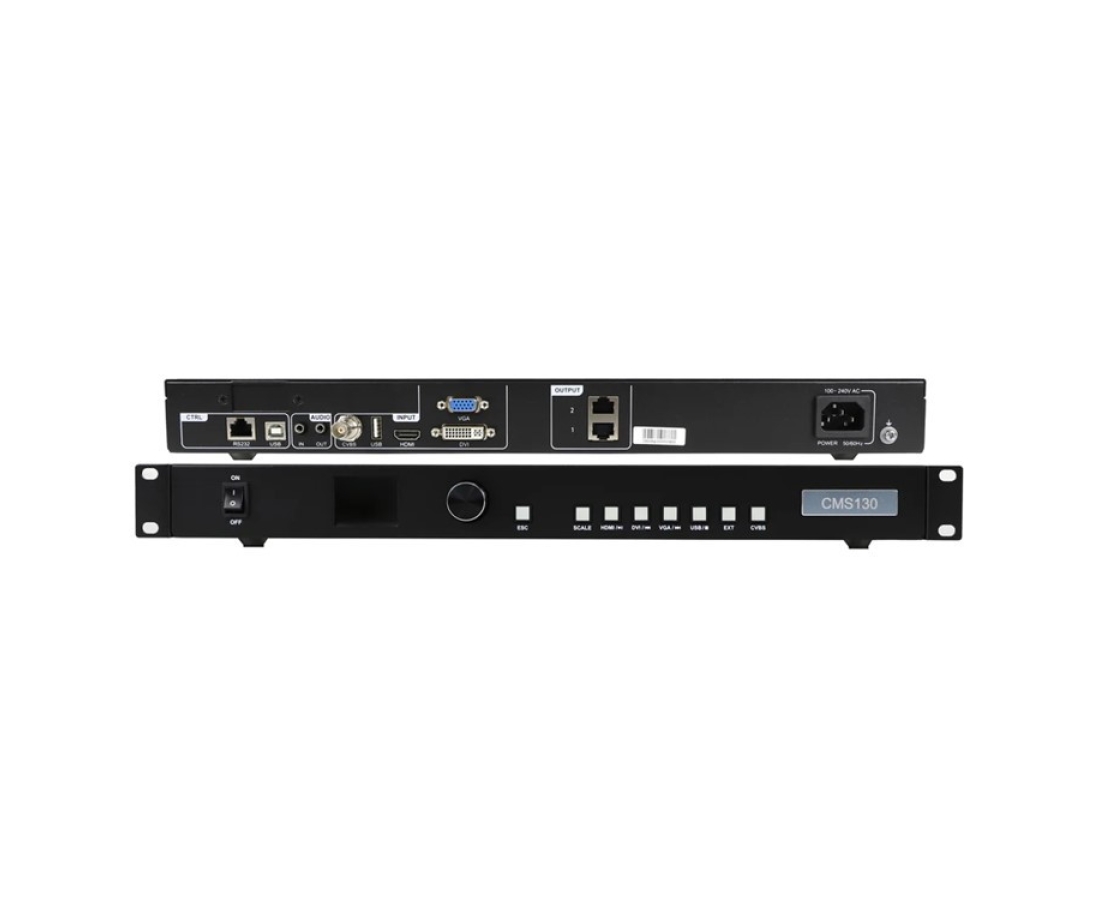

The CMS130 is engineered to simplify on-site operations while providing precise control over LED screen performance. It supports multiple input types, customizable display scaling, independent audio management, and quick configuration features, enabling flexible setup and high-quality visual output.

Product Features:
• Multiple input connectors: 1× DVI, 1× HDMI 1.3, 1× VGA, 1× USB, 1× CVBS
• Flexible layer management: Adjustable layer position and size, input cropping supported
• Easy source switching: Press the input source buttons for instant switching between sources
• Independent audio output: Supports external audio integration
• EDID management: Ensures compatibility with a variety of input devices
• Personalized image scaling: Full screen, pixel-to-pixel, and custom options
• Quick LED screen configuration: Efficient setup and adjustment of display parameters
• Dual Ethernet outputs: 2× Ethernet ports, supporting up to 1.3 million pixels
• Preset management: Save and load up to 6 user-defined presets
• LED color adjustment: Control brightness, Gamma, and other color parameters
• Central control support: Can be managed via central control devices for large-scale deployments
• Industrial-grade durability: Reliable operation in complex operational environments

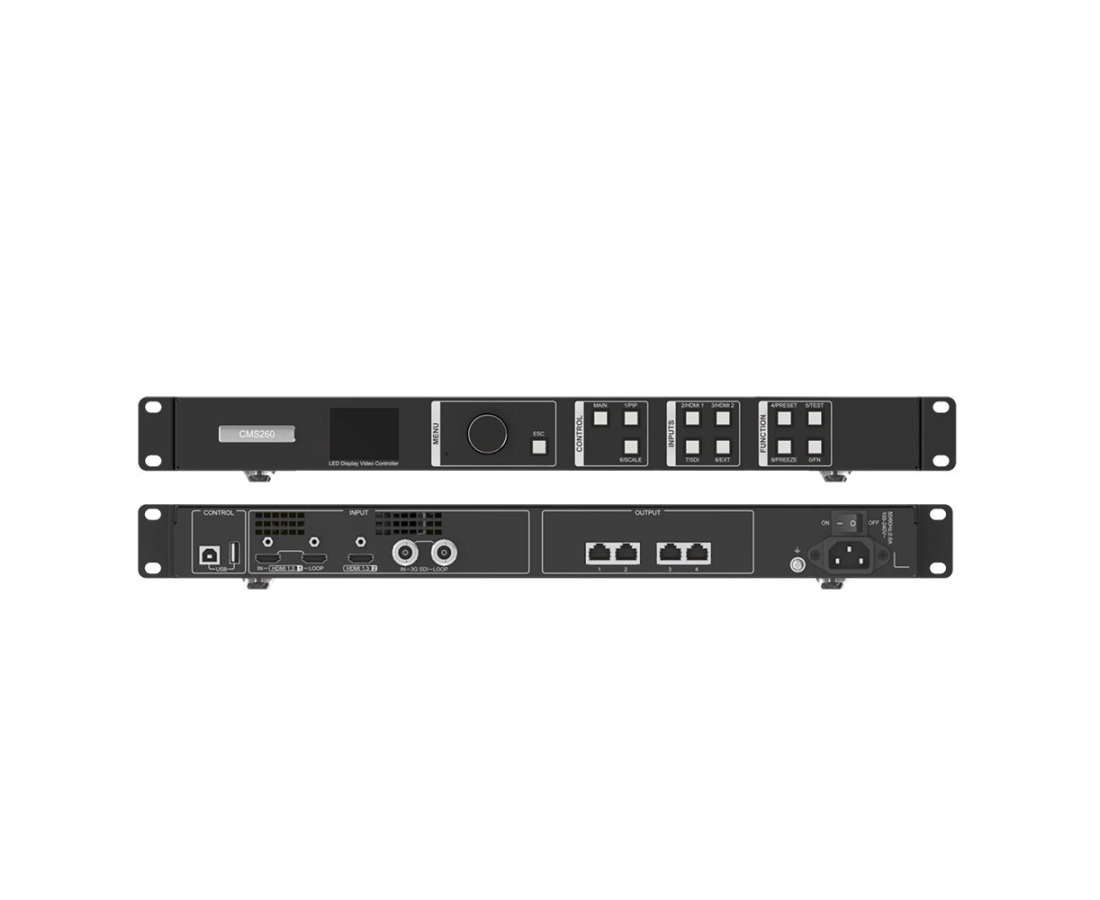

The NovaStar CMS260 All‑in‑One LED Display Video Processor is a highly integrated controller that combines video processing and LED display control into one unit. With support for up to 2.6 million pixels and output dimensions up to 3840×3840, the CMS260 is built for fine‑pitch LED walls, rental stages, events, and professional installations. It offers ultra‑low latency, flexible cascading, sophisticated image scaling, and calibration features—enabling seamless and high‑quality visual performance in demanding environments.

Product Features:
• Industry‑standard inputs: 1×HDMI1.3 (IN & LOOP), 1×HDMI1.3, 1×3G‑SDI (IN & LOOP)
• 4×Gigabit Ethernet output ports, driving up to 2.6million pixels with max width/height of 3840 pixels
• Audio in via HDMI, audio out via multifunction card; output volume adjustment supported
• 2 Layers: adjustable size, position, and priority of layer content
• SuperViewIII image quality processing: stepless output scaling, free input cropping, one‑click full screen
• Hot backup support: device backup, Ethernet port backup, input source hot backup
• Cascading support: up to 4 units can link for an ultra‑large screen mosaic
• Pixel‑level brightness & chroma calibration: works with NovaLCT and calibration software to remove color and brightness inconsistencies
• Output image quality management: brightness, saturation, contrast, hue, gamma adjustment
• Preset saving/loading: up to 10 user‑defined presets for quick setup
• Ethernet port backup test: validate pre‑stored images and backup links without unplugging cables
• Easy operation: front panel knob, buttons, TFT status display; USB Type‑B for debugging; fan‑free design
• Dimensions: 482.6×250×50.1 mm, net weight approx. 3.2kg; power consumption about 28W
• Operating environment: –20°C to +60°C, humidity 0%–80% RH (non‑condensing)
• Storage environment: –20°C to +70°C, humidity 0%–95% RH (non‑condensing)
• Certifications: CE, FCC, RoHS
