C-Power new 5 series large size controller
4096*512 pixels,more powerful function with lower price, which make them much higher cost-performance and more competitive in the market.
C-Power new 3 series large size controller
2048*128 pixels,more powerful function with lower price, which make them much higher cost-performance and more competitive in the market.

Categories:LED Controller System

Add To Basket Get A Quote

Product Description

【Product Introduction】

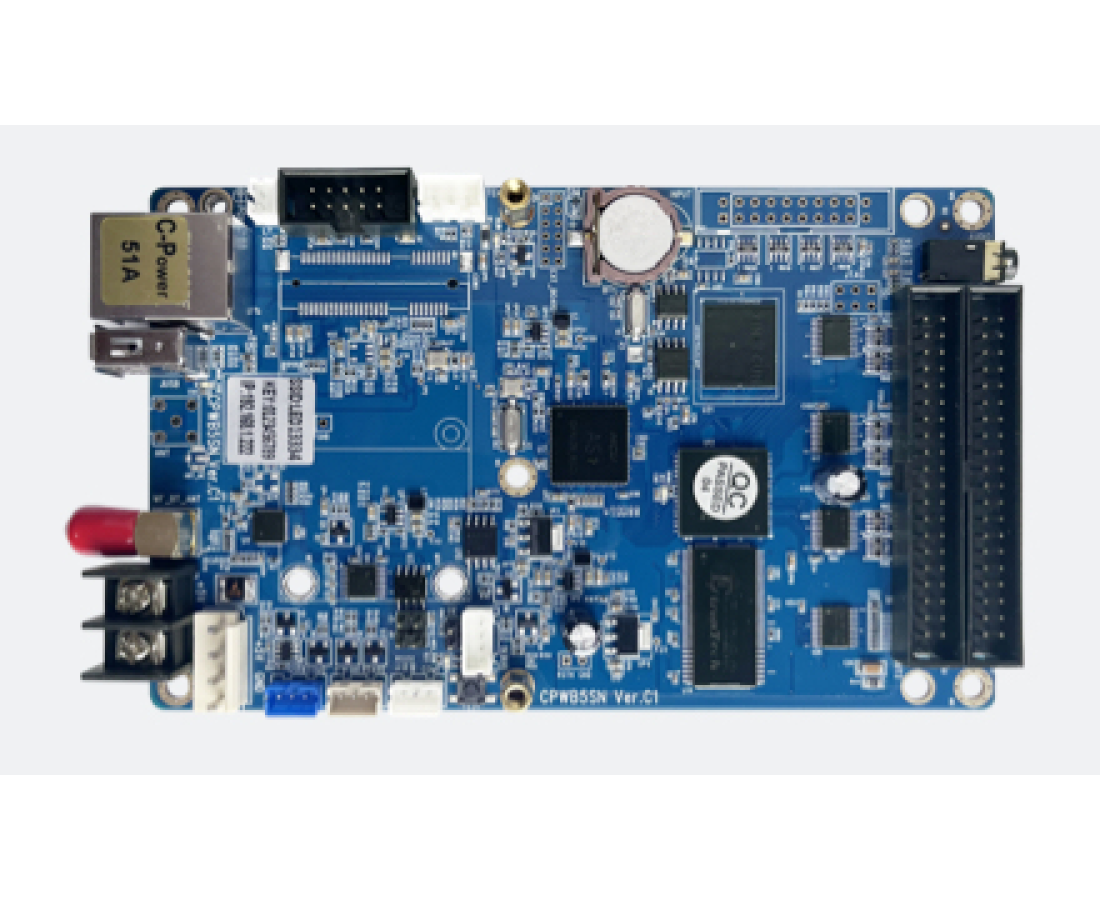

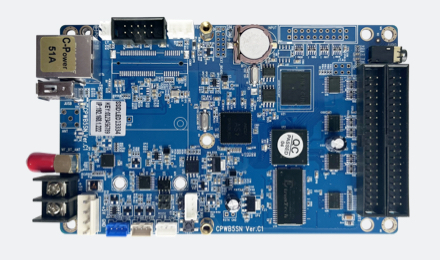

C-Power 5series large size card is the newly released newest 7 color controller of Shenzhen Lumen Electronics Co.,ltd.
C-Power 5series large size card is more powerful with lower price, which make them much higher cost-performance and more competitive in the market.
C-Power 5series large size card support smart setting, easily to set all kinds of LED display.
C-Power 5series large size card and C-Power full series products the same, with the same external protocol and secondary development interface.
C-Power 5series large size card different versions:

【Feature and Specification】

Control size (full , mono/RG color)	4096*512pixels, 7 color （mono/dual color）
Memory	Total size: 8GByte（64Gbit)
Program	Support mp3, TTS voice playback Supports animation(swf,gif) , picture, text, clock, temperature, etc. Text program edit in any language, any font and any size, free adjust Transparent text and clock program can be edit to cover photo or video More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc., With multi-program mode. Stores up to 512 programs to the Led screen. With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance. Supports programs played at the appointed period (for example: week, hour, minute )
Separate window mode	Supports the segmentation of up to ten playing windows for each program. Supports playing the content in different formats for each playing window.
Affiliated features	With real-time clock (RTC) management and setting, support digital and analogue clock. Supports environmental data programs like temperature, etc. Supports sensors installed externally (32-grade brightness)
Font library	128MB font library space The card can be stored different font library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc., Up to 32 different font libraries can be stored and displayed at the same time We supply font library edit tools and update tools Support Hong Kong supplementary character fonts, Hindi
Standard software	LedCenter V5.5.6 or above
Standard communication mode	TCP/IP ,USB ,RS232/485; Optional:4G/5G,WIFI
InDa remote & keyboard	Program list edit and display control by infrared controller or keyboard
External communication components	Supports various wireless communication modes: ZigBee, RF...
Others	Provides customized development interface andits manual. Provides demonstration program and source codeforcustomized development Besides, provides “Wireless information issue”version.

【Product Introduction】

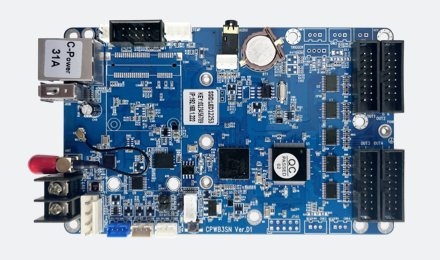

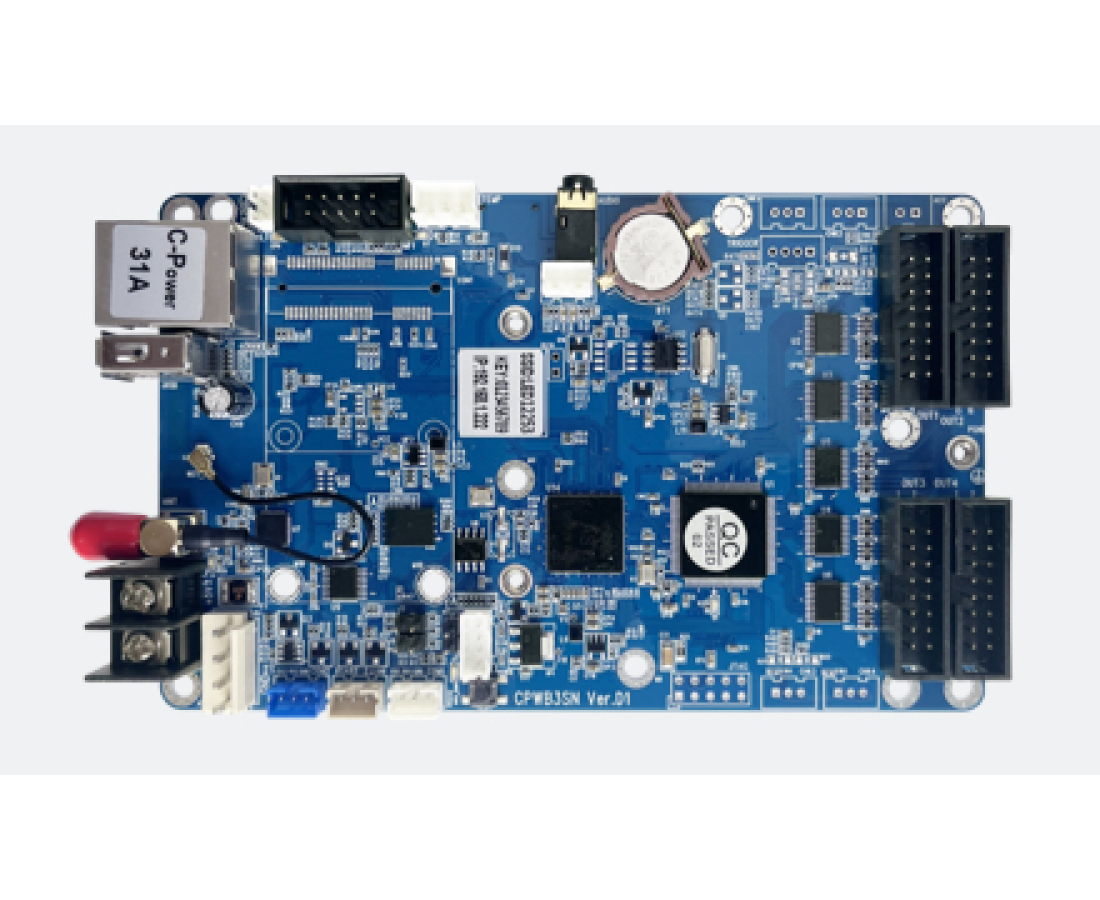

C-Power 3series 7 color card is the newly released newest 7 color large size controller of Shenzhen Lumen Electronics Co.,ltd.
C-Power 3series 7 color card is more powerful with lower price, which make them much higher cost-performance and more competitive in the market.
C-Power 3series 7 color card support smart setting, easily to set all kinds of LED display.
C-Power 3series 7 color card and C-Power full series products the same, with the same external protocol and secondary development interface.
C-Power 3series card different versions:

【Feature and Specification】

Control size (full , mono/RG color)	2048*128 pixels, 7 color （mono/dual color）
Memory	Total size: 256MByte（2Gbit)
Program	All programs are transmitted by compression package, and then decompressed on control card. Supports video program Supports animation(swf,gif) , picture, text, clock, temperature, etc. Text program edit in any language, any font and any size, free adjust Transparent text and clock program can be edit to cover photo or video More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc., With multi-program mode. Stores up to 512 programs to the Led screen. With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance. Supports programs played at the appointed period (for example: week, hour, minute )
Separate window mode	Supports the segmentation of up to ten playing windows for each program. Supports playing the content in different formats for each playing window.
Affiliated features	With real-time clock (RTC) management and setting, support digital and analogue clock. Supports environmental data programs like temperature, etc. Supports sensors installed externally (32-grade brightness)
Font library	The card can be stored different font library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc., Up to 32 different font libraries can be stored and displayed at the same time We supply font library edit tools and update tools Support Hong Kong supplementary character fonts, Hindi
Standard software	LedCenter V5.5.6 or above
Standard communication mode	TCP/IP ,USB ,RS232/485; Optional:4G/5G,WIFI
InDa remote & keyboard	Program list edit and display control by infrared controller or keyboard
External communication components	Supports various wireless communication modes: ZigBee, RF...
Others	Provides customized development interface andits manual. Provides demonstration program and source codeforcustomized development Besides, provides “Wireless information issue”version.
