• Programming & Updates: Support program updates via a USB flash drive (U-disk) without needing a constant PC connection.
• Connectivity Options: Many models (like TF-S6UW0) include Wi-Fi support for wireless text and layout management using mobile apps like PowerLED LTS, alongside serial RS232 or LAN ports on select series.
• Module Compatibility: Designed to work with common LED panel hubs such as HUB08 and HUB12 for monochrome, dual-color, or full-color modules (e.g., P10, F3.75, F5.0).
• Display Functions: Support text, graphics, time, date, temperature sensors, and dozens of animation or scrolling effects.
1.Correctly configuring the parameters of the LED control card is the primary and essential step to make the LED display screen function properly.The LED control card cannot function properly without any parameter settings.
2.If you are replacing the old control card, you must reconfigure the parameters in the controller program for the new LED display control card.

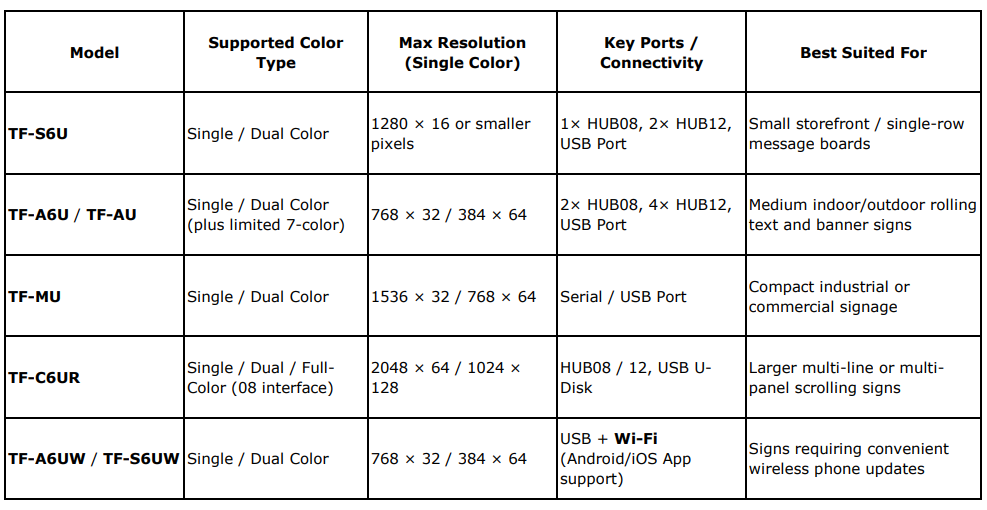

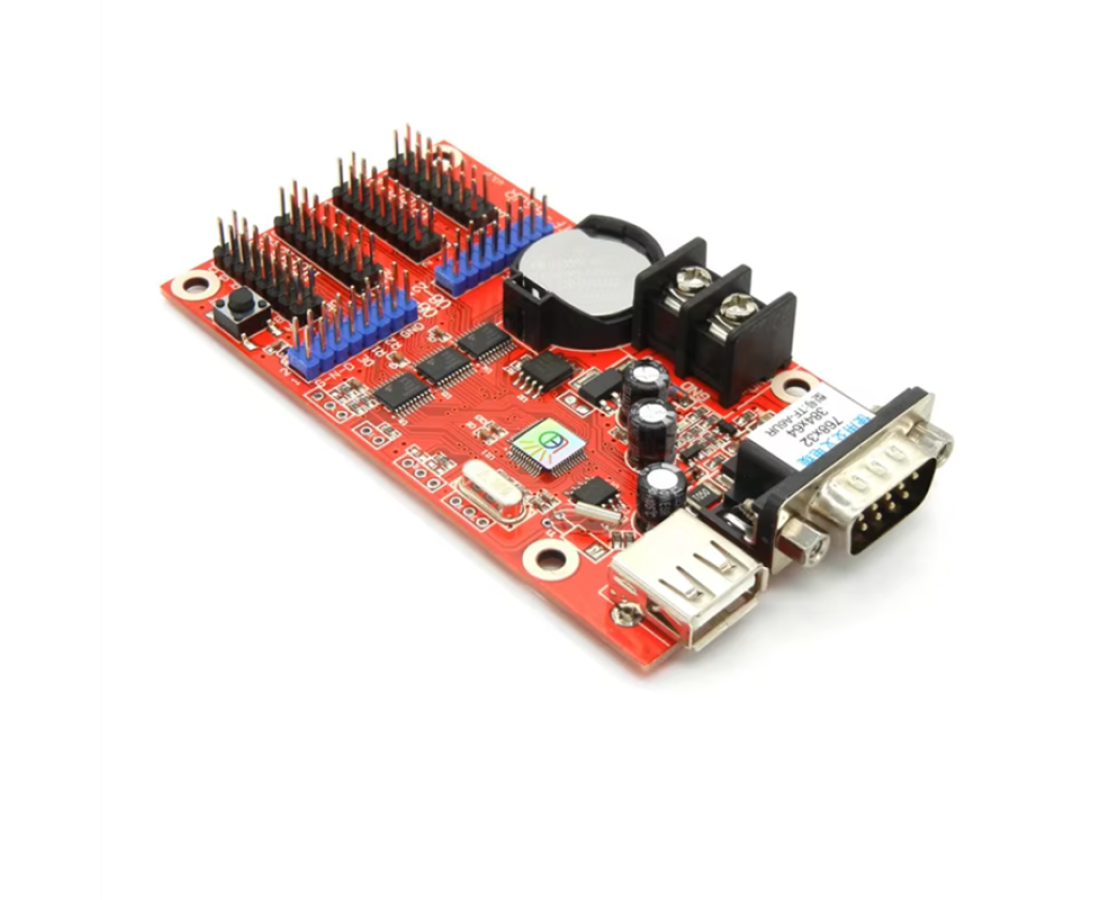

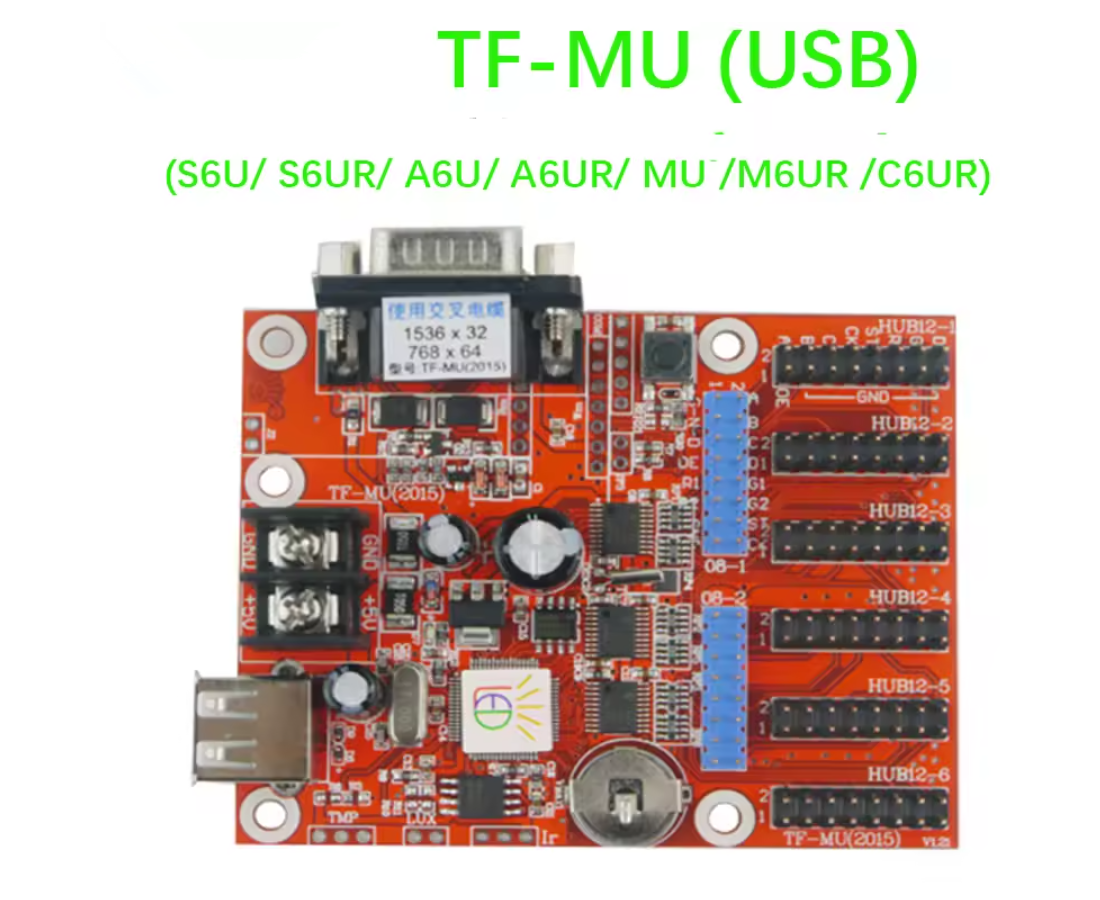

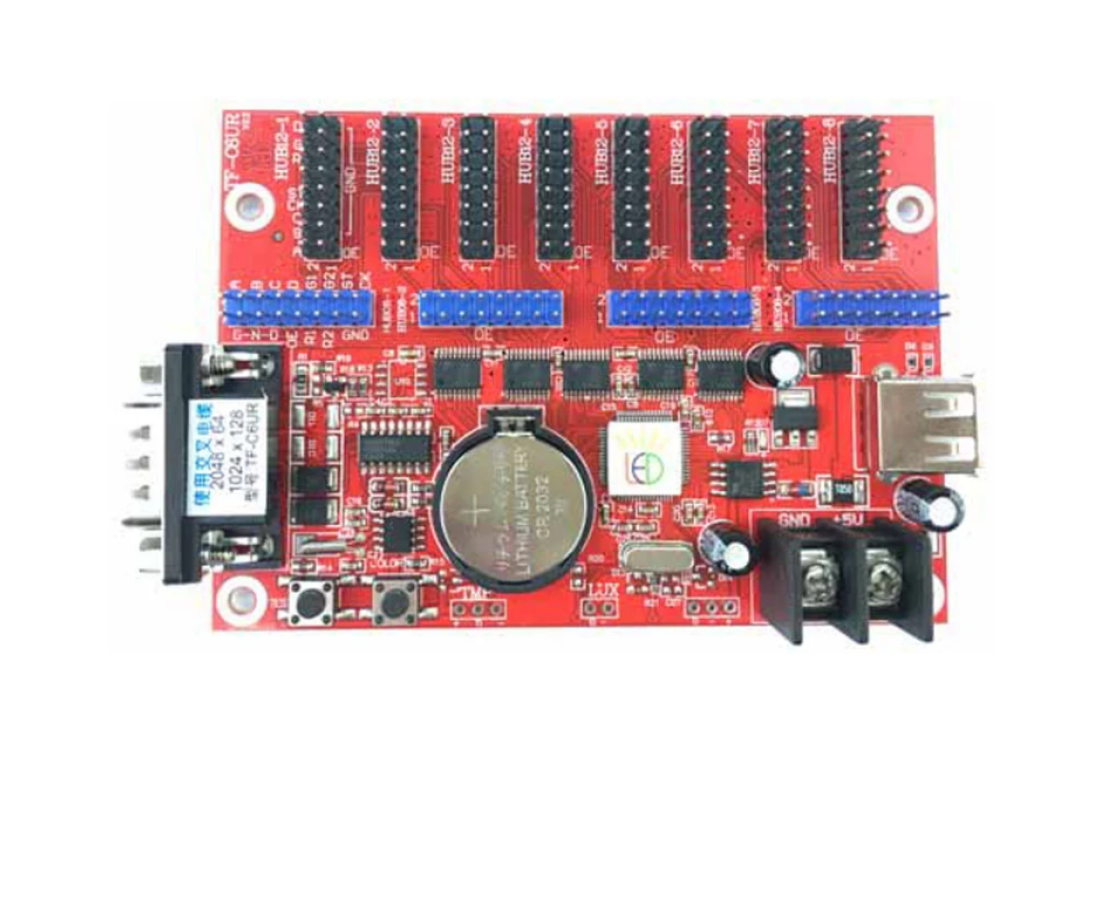

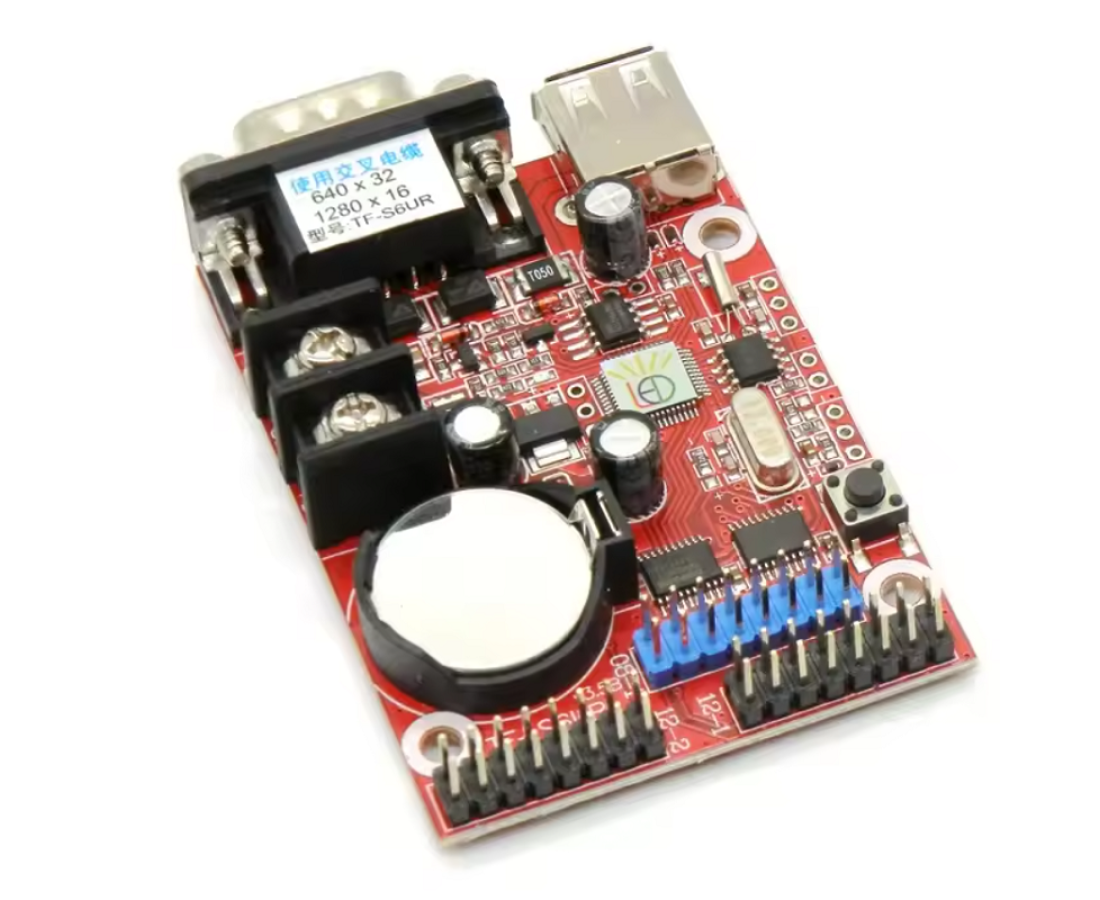

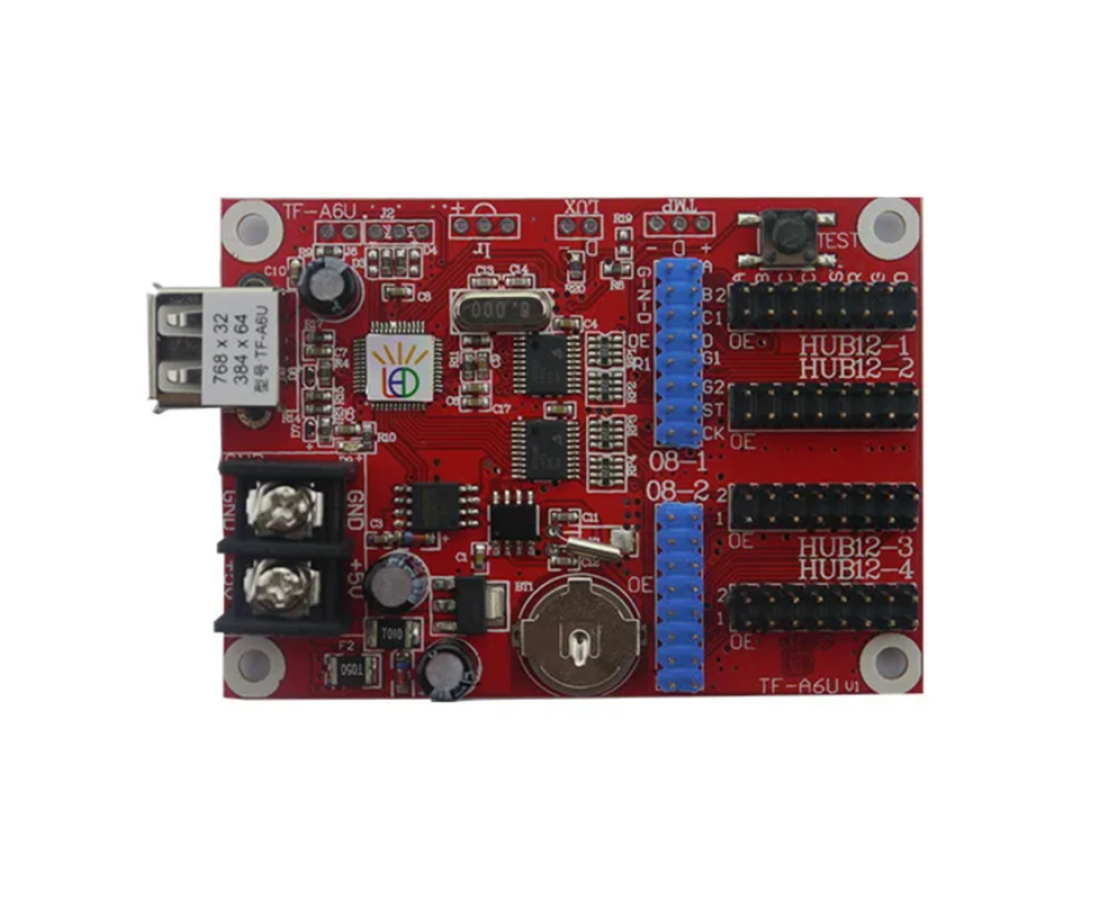

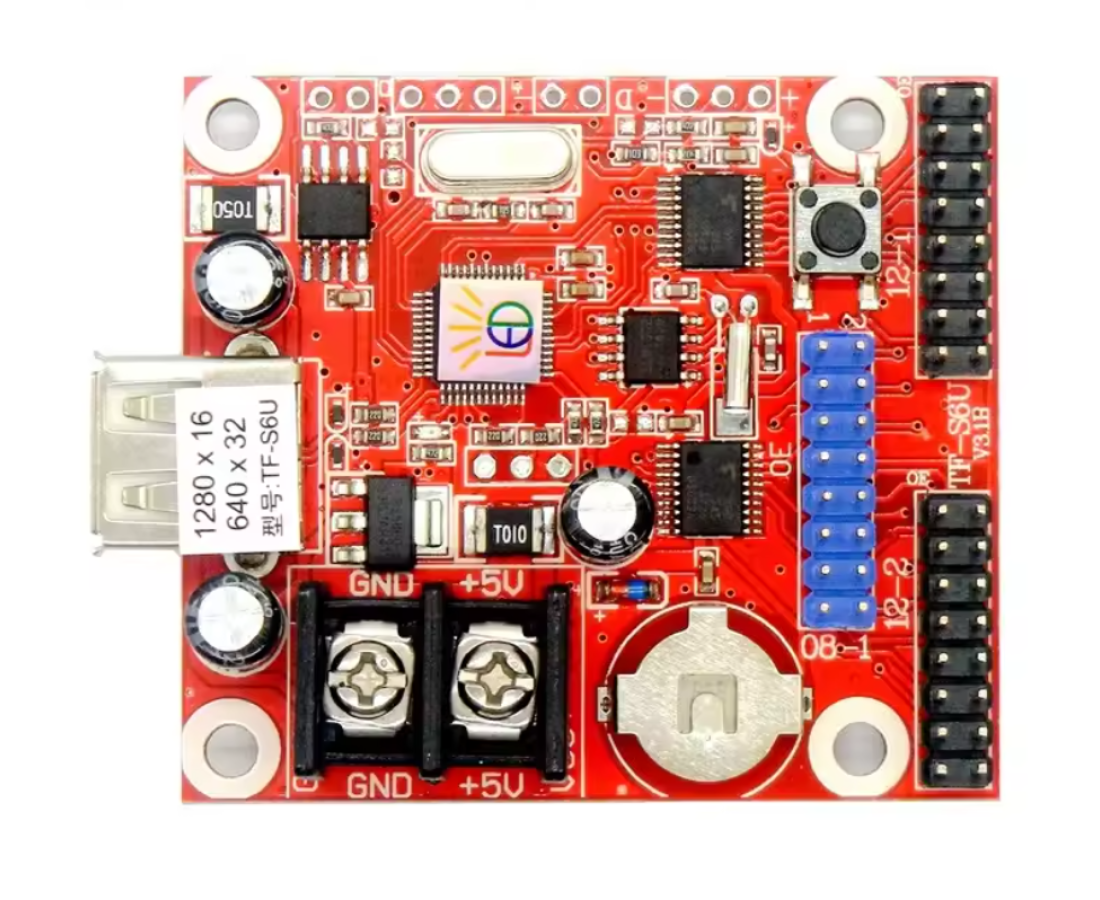

TF-S6U | S6UR | A6U| MU | C6UR | F6UR LED display controller
Communication: USB port,for updating program by U-disk(don't use USB extenstion cable)
Scanning mode: support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Day timer:0-9999 days
Timer :HH/MM/SS , Clock frame embeded
Temperature & Humidity display support (Optional: need additional temperature & humidity sensor), brightness sensor support
Storage capacity:2M
Program number:Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.（Quantity in storage space under the premise of memory）
Display:rain,fountain,scroll and much more
Border:support many Color border,Picture border
Flash format:support GIF,SWF
Image format:support BMP,JPG,GIF,WMF,ICO
Brightness:Level 16 highlighted,support manual
Test buttons:Test buttons on-board,can switch over to test mode and color test mode.
Electrical parameters:+5V DC(4.5V～6V),Power consumption<0.5W
Working temperature:-30℃～70℃
