• Communication: Wireless Wi-Fi (via the PowerLED LTS or PC software) combined with a USB port for U-disk offline updates.
• Default Wi-Fi Credentials: Network SSID typically starts with TF-** with default password 88888888 (resettable via the board's test/reset button or a U-disk configuration file).
• Software: Uses PowerLED (PC) or PowerLED LTS (mobile app) for layout, partition editing, border effects, and clock/text scheduling.
• Sensors: Optional add-ons include temperature and humidity sensors plugged directly into extension pins.
1.Correctly configuring the parameters of the LED control card is the primary and essential step to make the LED display screen function properly.The LED control card cannot function properly without any parameter settings.
2.If you are replacing the old control card, you must reconfigure the parameters in the controller program for the new LED display control card.

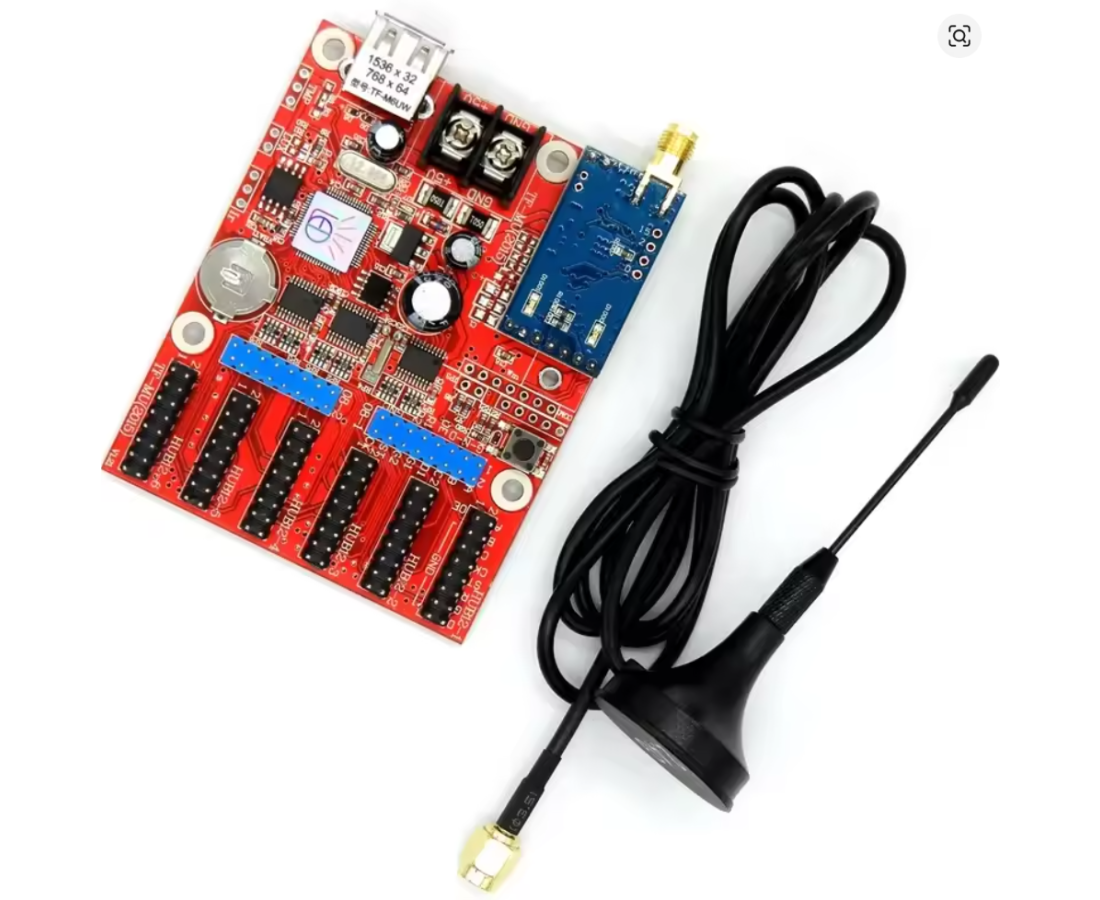

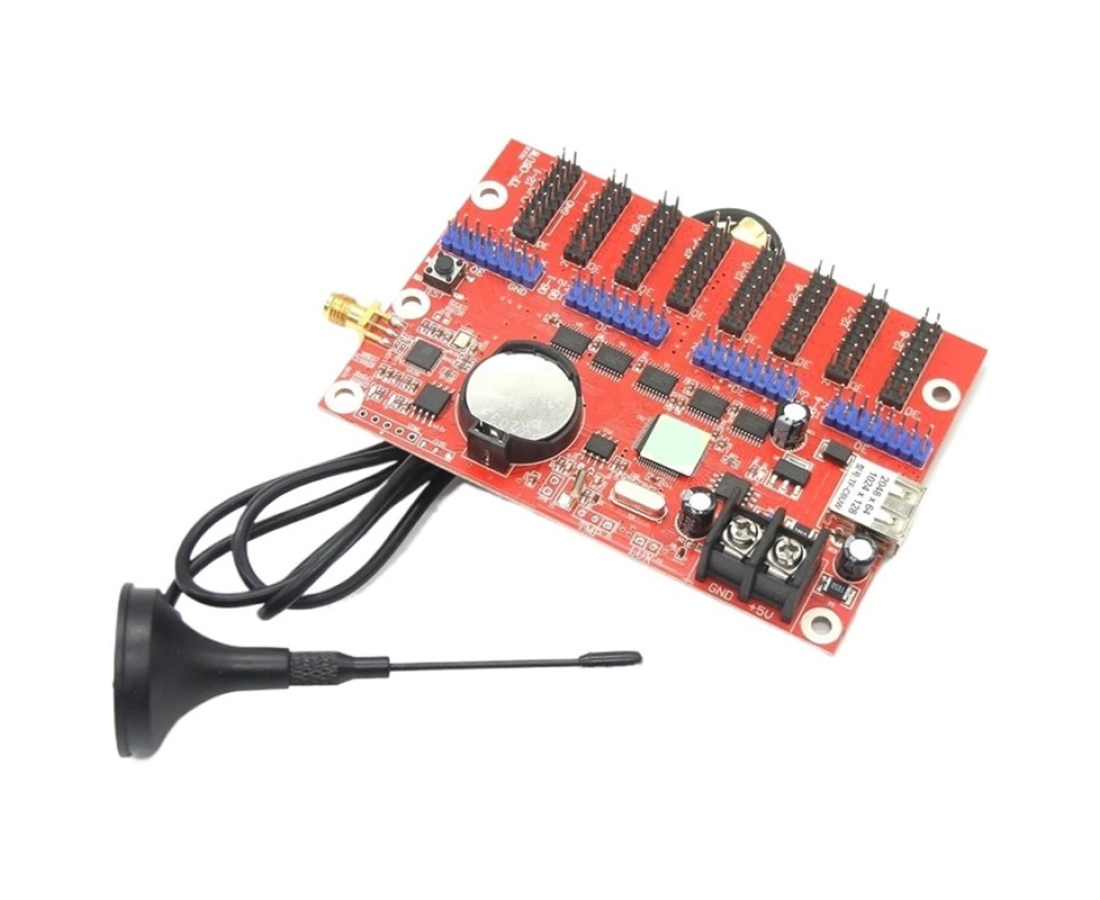

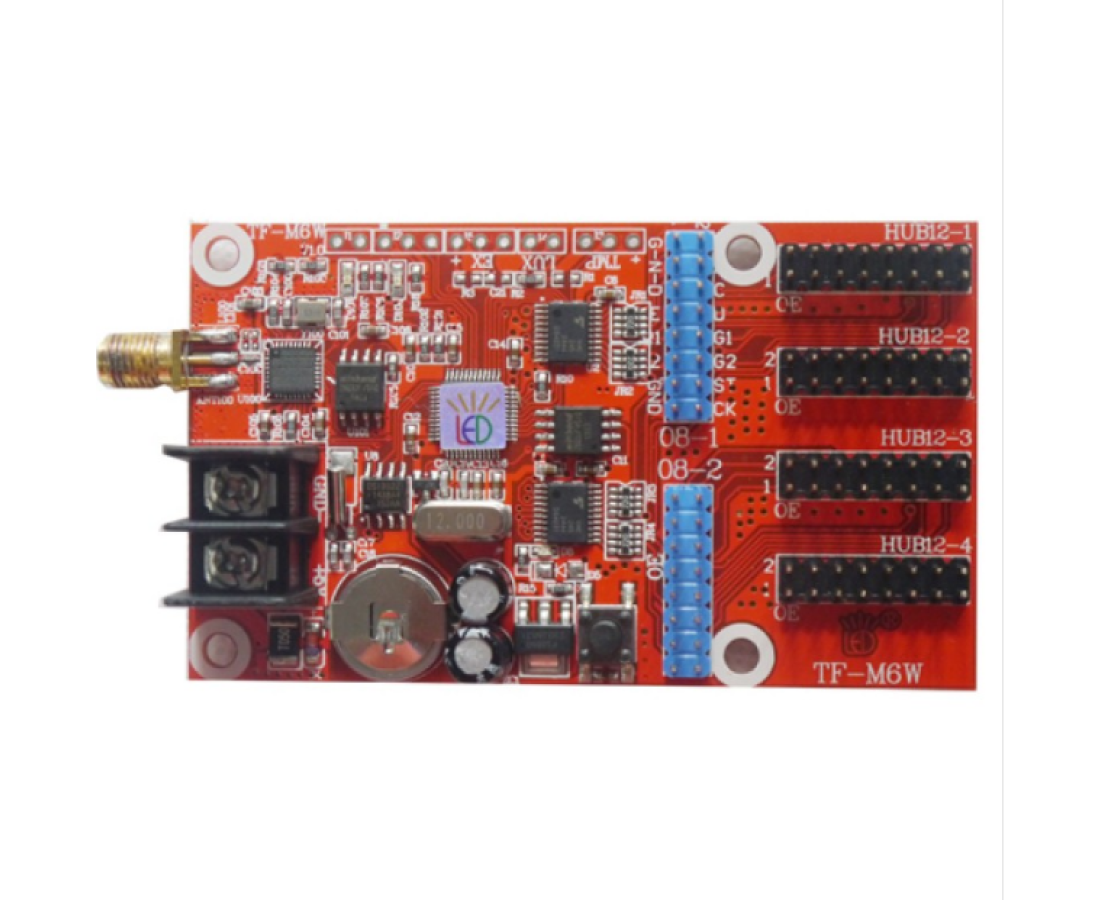

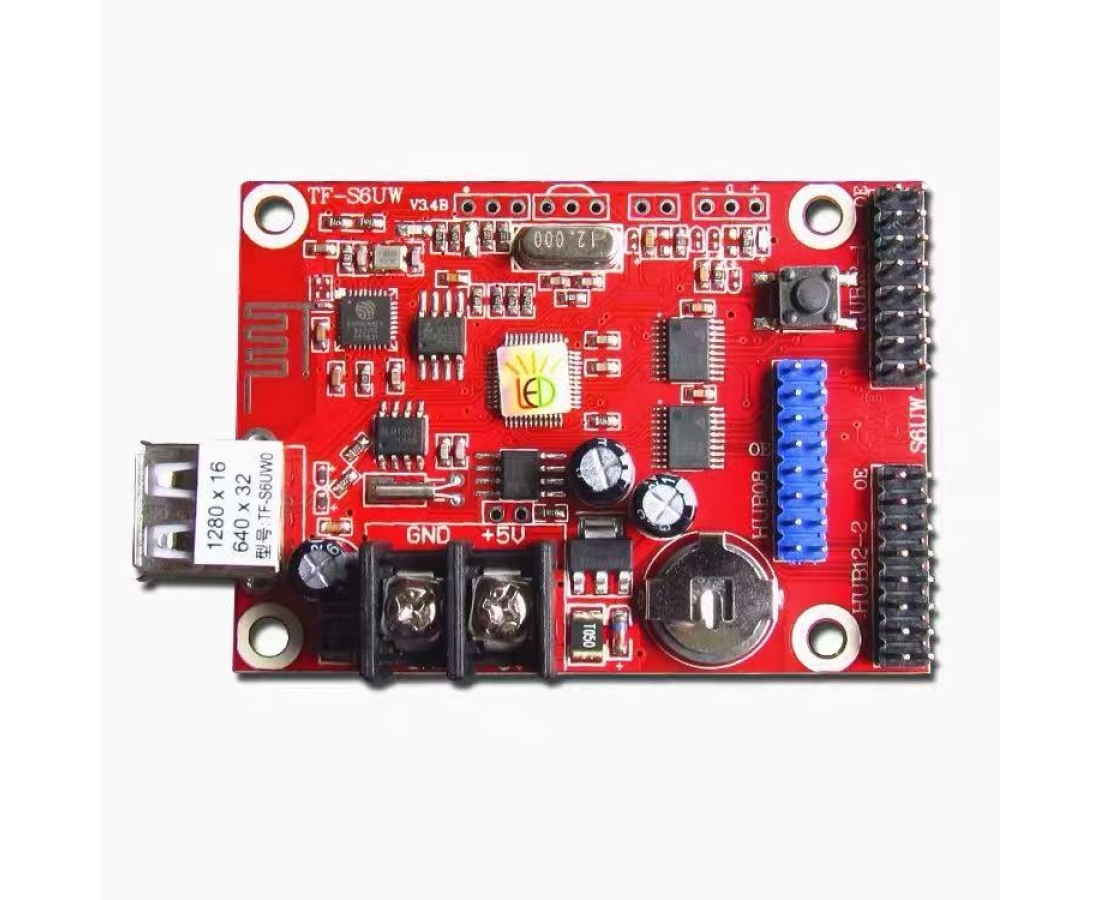

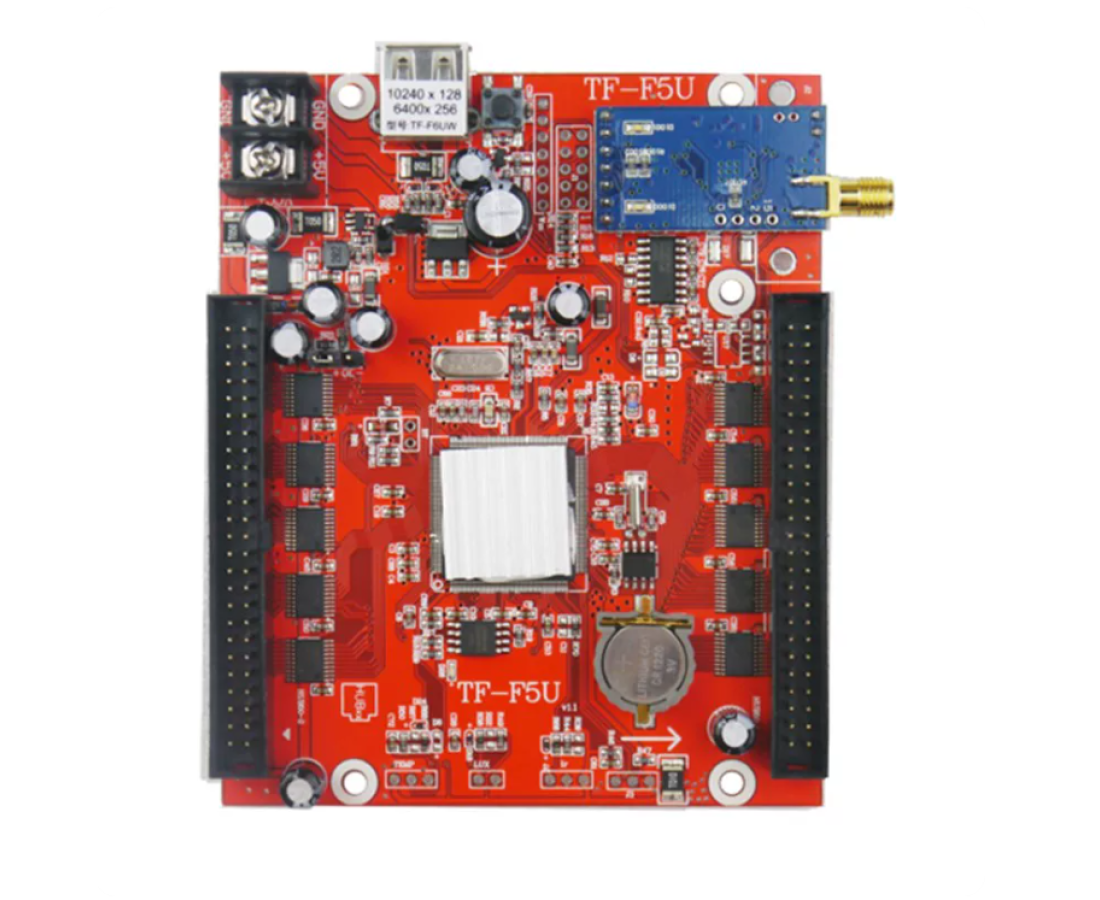

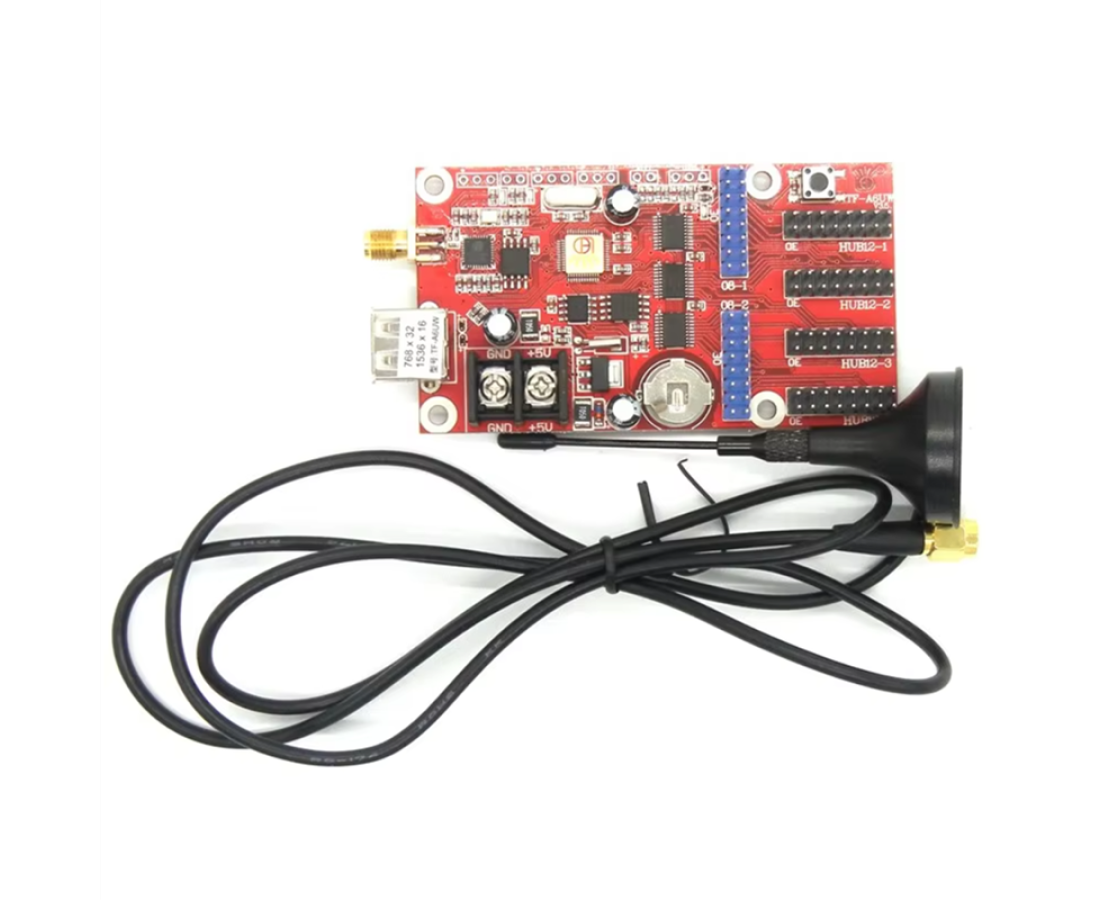

TF-S6UW0 | A6UW | M6W | M6UW | C6UW | F6UW LED display controller
Communication: wifi
Scanning mode: support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Day timer:0-9999 days
Timer :HH/MM/SS , Clock frame embeded
Temperature & Humidity display support (Optional: need additional temperature & humidity sensor), brightness sensor support
Storage capacity:2M
Program number:Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.（Quantity in storage space under the premise of memory）
Display:rain,fountain,scroll and much more
Border:support many Color border,Picture border
Flash format:support GIF,SWF
Image format:support BMP,JPG,GIF,WMF,ICO
Brightness:Level 16 highlighted,support manual
Test buttons:Test buttons on-board,can switch over to test mode and color test mode.
Electrical parameters:+5V DC(4.5V～6V),Power consumption<0.5W
Working temperature:-30℃～70℃
