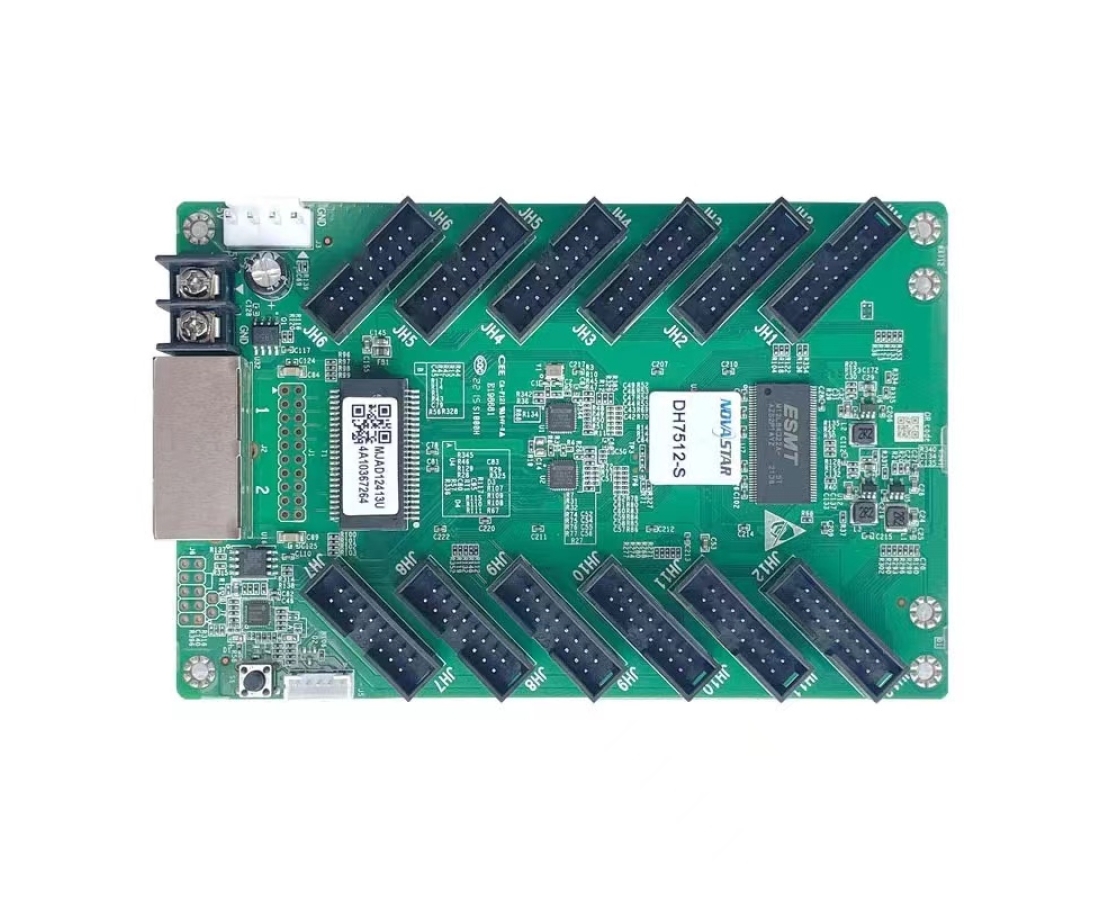

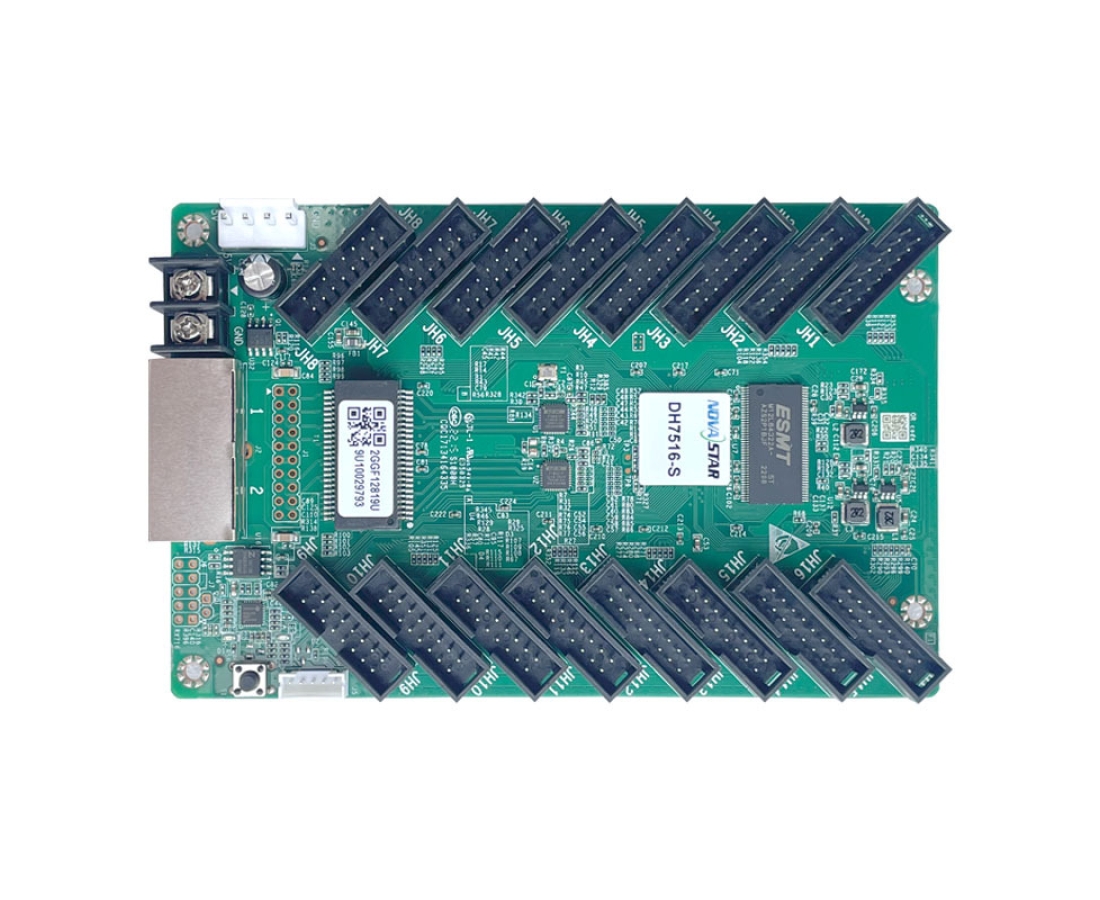

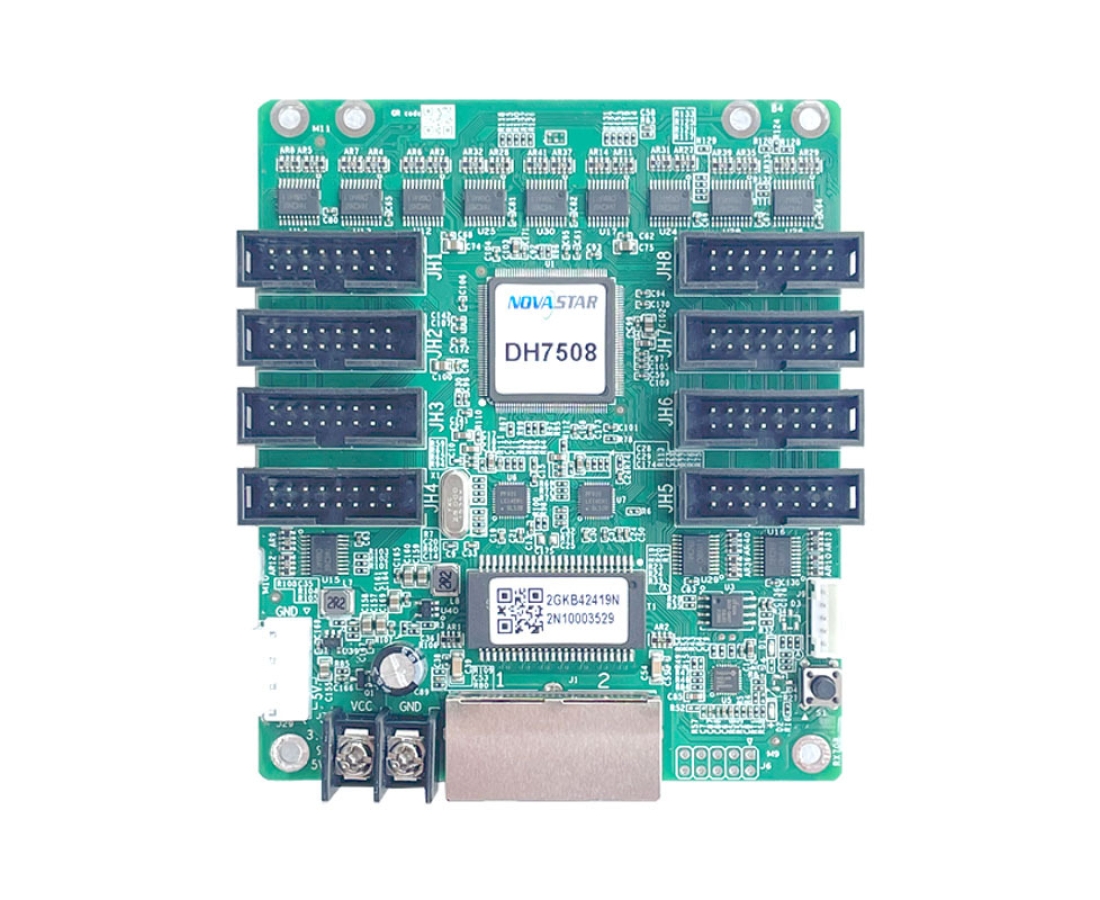

NovaStar LED ReceivingCard DH7508S | DH7512S | DH7516S

Novastar DH Series LED Receiving Card

The DH7508/DH7512/DH7516/DH3208 is a cost-effective receiving card developed by NovaStar. A singleDH7508/DH7512/DH7516/DH3208 supports resolutions up to 256x256@60Hz /512 x384@60Hz/512x512@60Hz. Supporting various functions such as pixel level brightness and chroma calibration, quickadjustment of dark or bright lines, and 3D, the DH7508/DH7512/DH7516/DH3208 can significantly improve the display effect and user experience.

The DH7508/DH7512/DH7516/DH3208 uses 8/12/16 standard HUB75E/HUB320 connectors forcommunication, resulting in high stabiity. It supports up to 16/24/32 groups of parallel RGB data. Thanks to itsEMC compliant hardware design, the DH7508/DH7512/DH7516/DH3208 has improved electromagnetic compatibility and is suitable for various on-site setups.

 *DH Series LED Receiving Card
Powerful performance, no fear of testing

Eliminate chromatic aberration and significantly improve screen picture qualitySupport point-by-point brightness and chromaticity correction, with NovaLCT and NovaCLB, to correct thebrightness and chromaticity of each lamp point, effectively eliminating chromatic aberration Make the brightnessand chroma of the whole screen highly uniform and improve the picture quality of the display.

Seamless screen integration, no black screen
Support the pre-saved screen setting of the receiving card, which can set the specified picture as the power-onscreen of the display. When the network cable is disconnected or there is no video source signal, it ensures thatthe display has no black screen and the picture is seamlessly connected.

3D support to create an immersive viewing experience
Support 3D function, with the independent master control and 3D glasses, you can get the cinema-grade immersive 3D shock effect.

Mapping positioning, easy to connect the screen
Support Mapping function, you can clearly get the location and alignment of the receiving card, so that the box connection is easy and simple, and the problem box can be quickly located.

Self-monitoring, all conditions are clear
Without other peripherals, you can check the temperature and voltage of the receiving card, detect the quality ofnetwork communication between the transmitting device and the receiving card or between the receiving cardand the receiving card, and help eliminate hidden problems in network communication.

Program parameter readback, operation efficiency multiplied
Support firmware program and configuration parameters readback, can read back the receiver card's firmwareprogram and configuration parameters and save them to local, avoid complicated operation and improve workefficiency.

Multiple backup, multiple protection
Support loop backup, configuration parameter backup and dual program backup to ensure smooth displayplayback to the maximum
