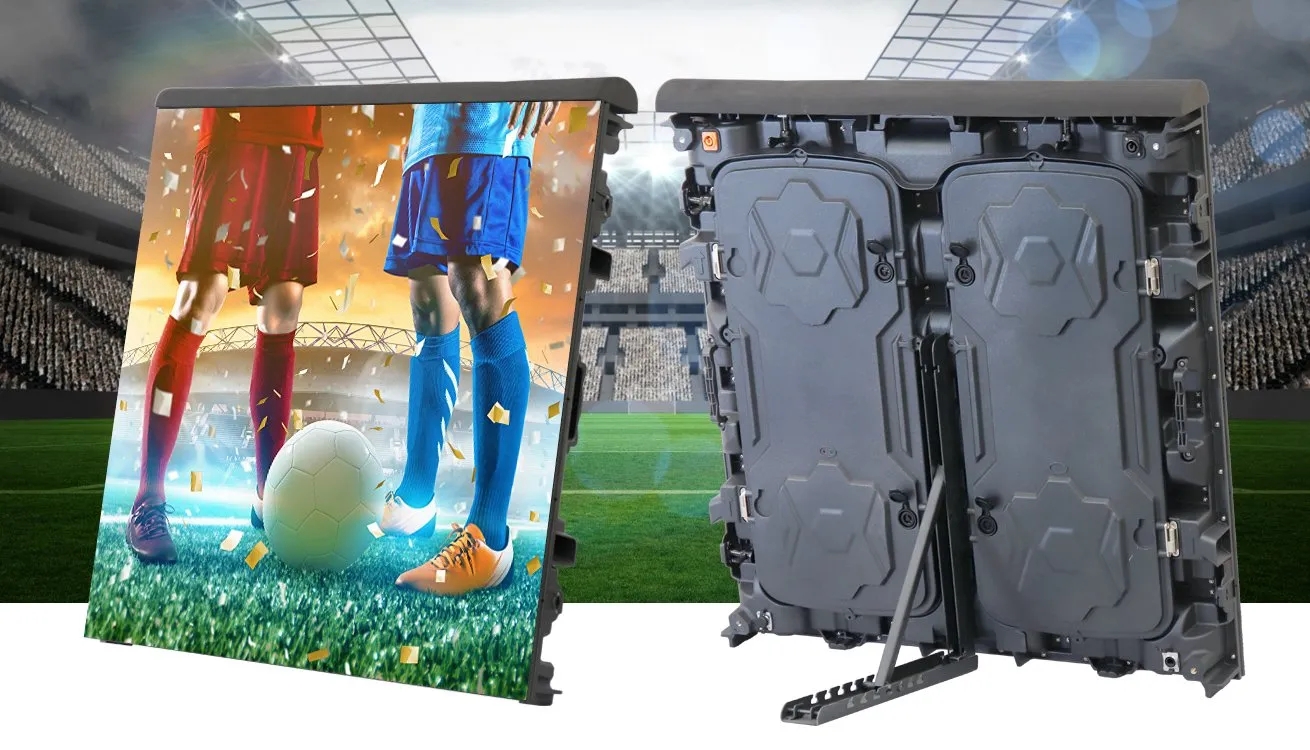

Stadium Perimeter LED Display

* The stadium perimeter LED display is IP65 waterproof, with front service module, adjustable rear bracket,
soft pillow and quick lock.All these features ensure that the LED screen can adapt to various stadium environments.
* 960SP series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps.
Humanization handlebar design make you more easy to move the cabinet.
* With an independent support structure, it can stand even if it is impacted by a strong external force.
The installation angle of the cabinet can be flexibly changed according to the actual situation on site.
* The refresh rate of up to 3800Hz, real-time switching without flicker,
ensures a fine high-definition display screen.

Categories:Rental LED Screen

Add To Basket Get A Quote

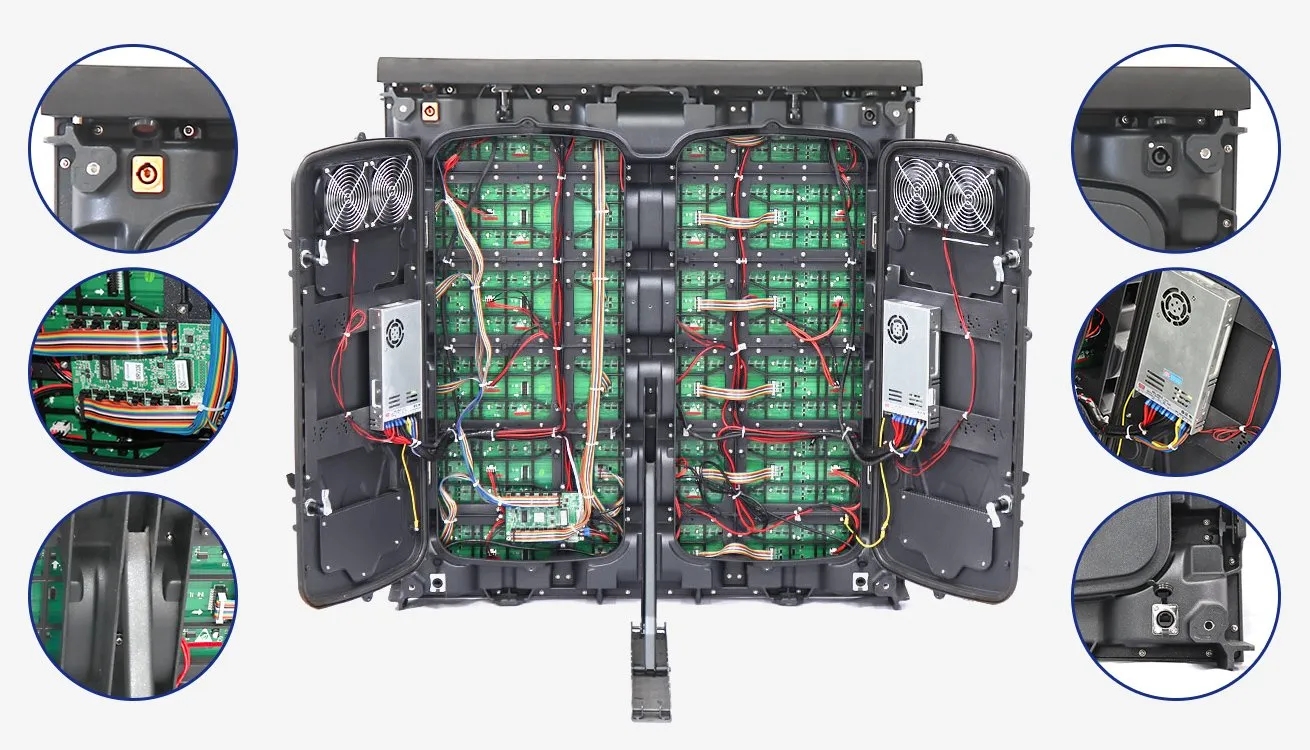

Product Description

960×960mm Stadium Perimeter LED Display

The stadium perimeter LED display is IP65 waterproof, with front service module, adjustable rear bracket,
soft pillow and quick lock.All these features ensure that the LED screen can adapt to various stadium environments.

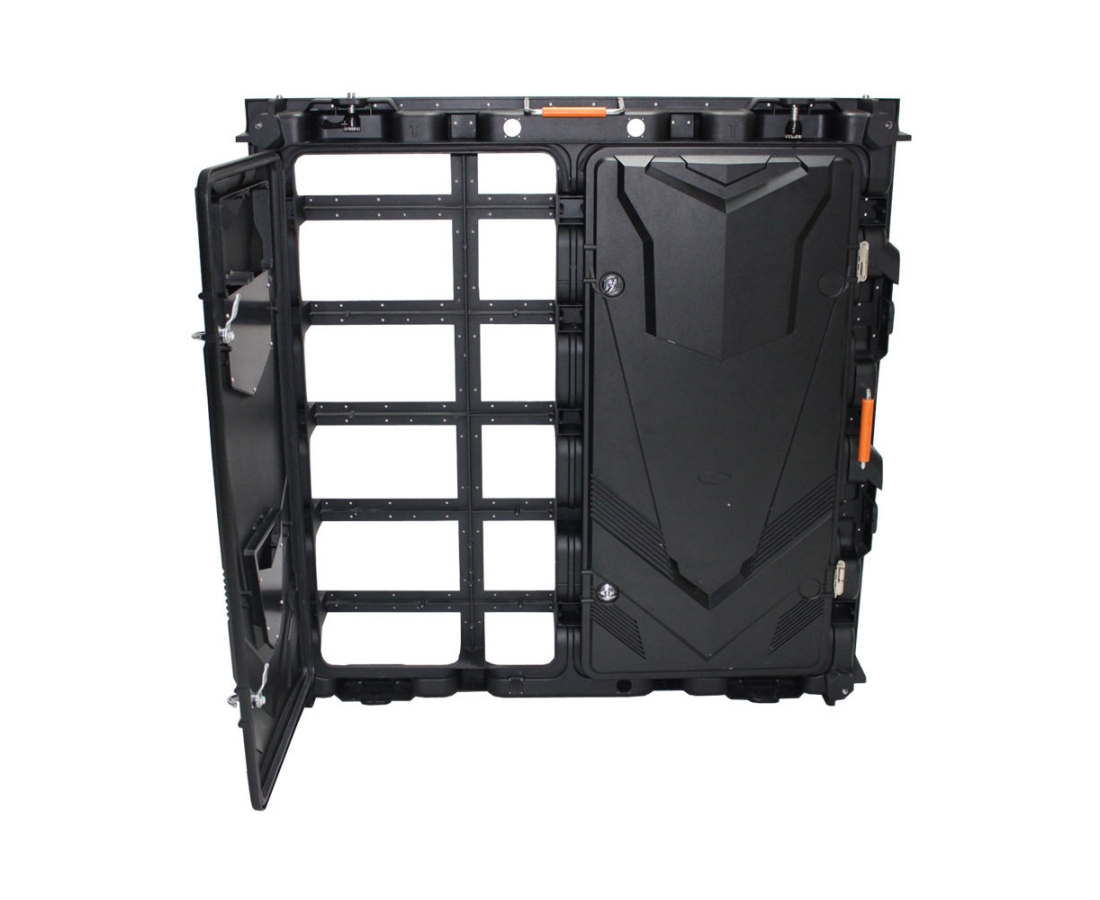

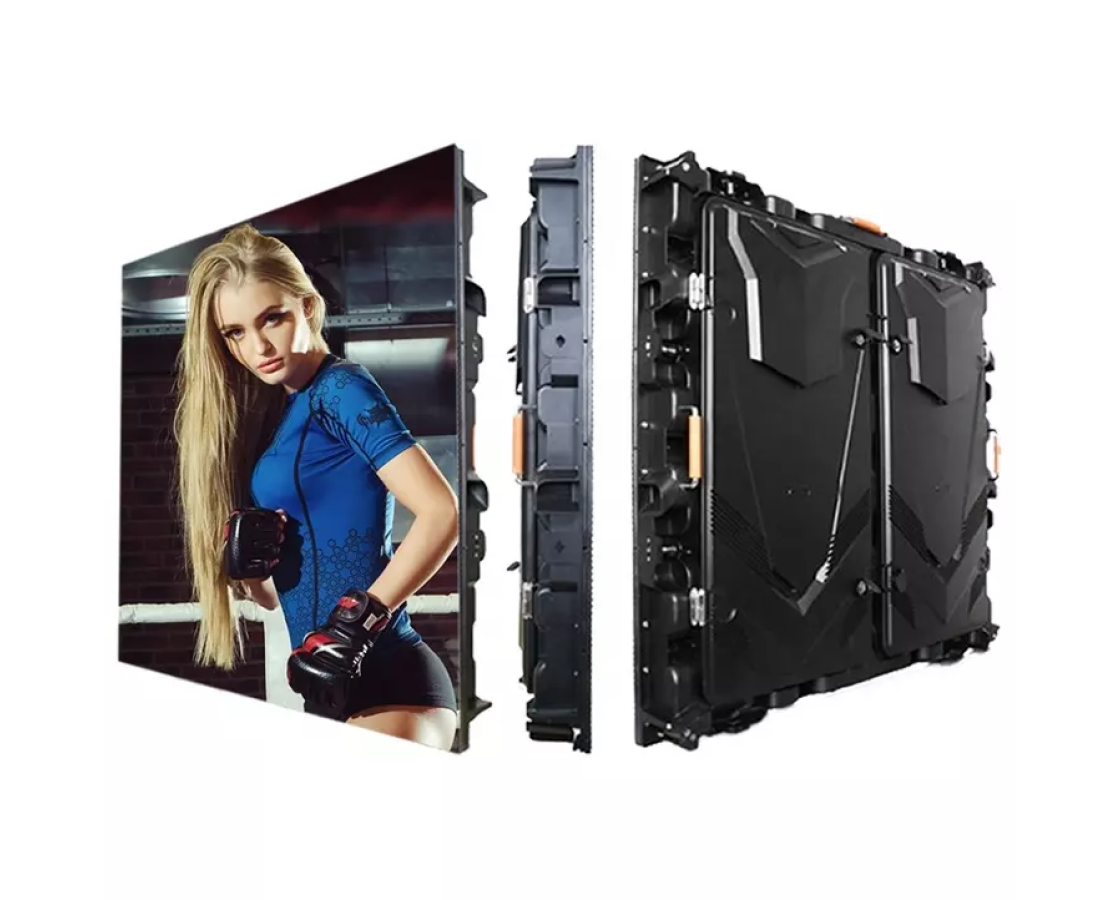

Delicated Cabinet Design

TP 960SP series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps.
Humanization handlebar design make you more easy to move the cabinet.

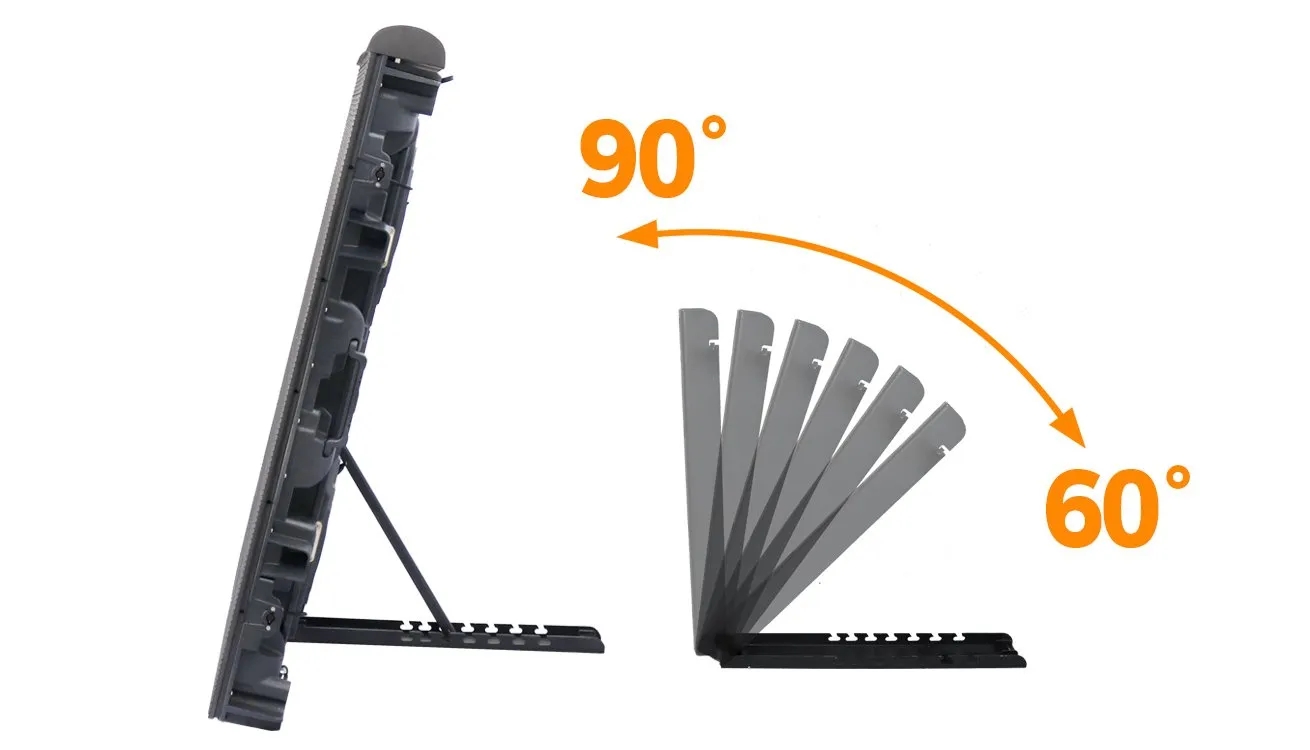

Independent Support Structure

With an independent support structure, it can stand even if it is impacted by a strong external force.
The installation angle of the cabinet can be flexibly changed according to the actual situation on site.

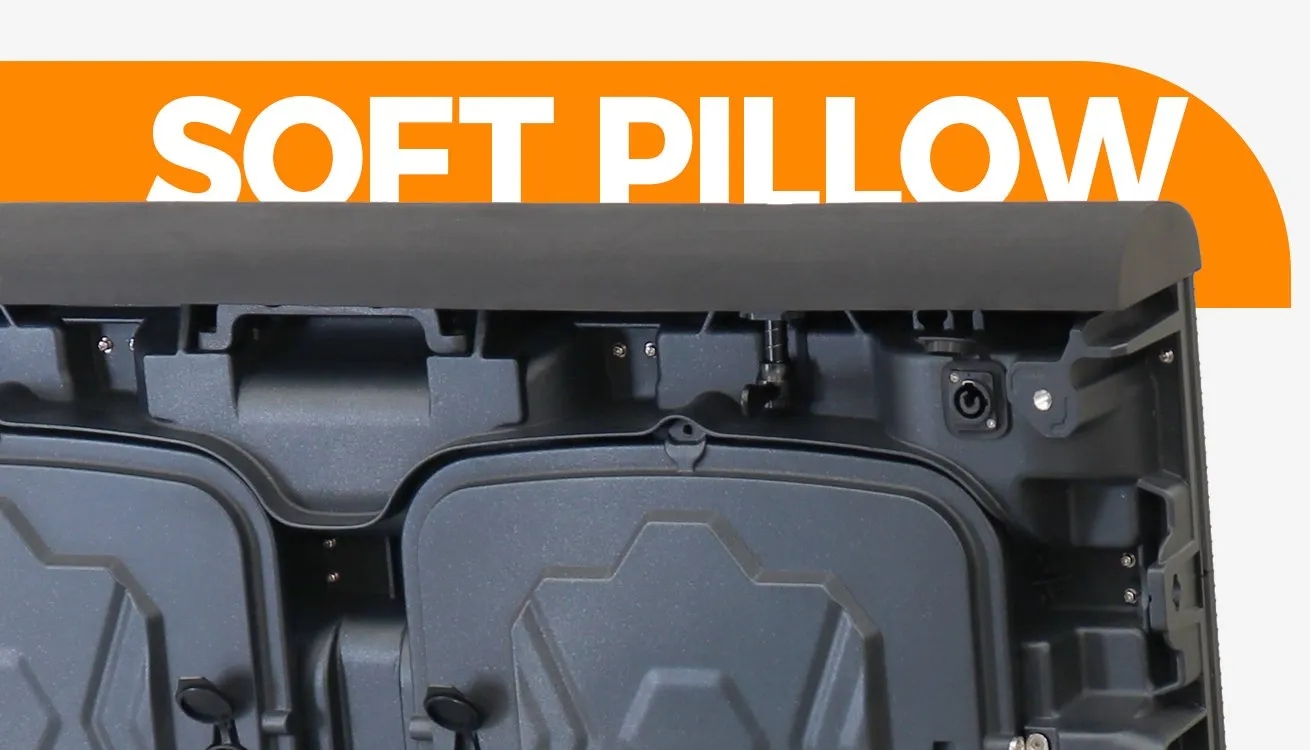

Soft Pillow Design

Because of the special environment of the stadium, the top of the cabinet is equipped with soft pillows.
This special part acts to protect the player and the LED screen.

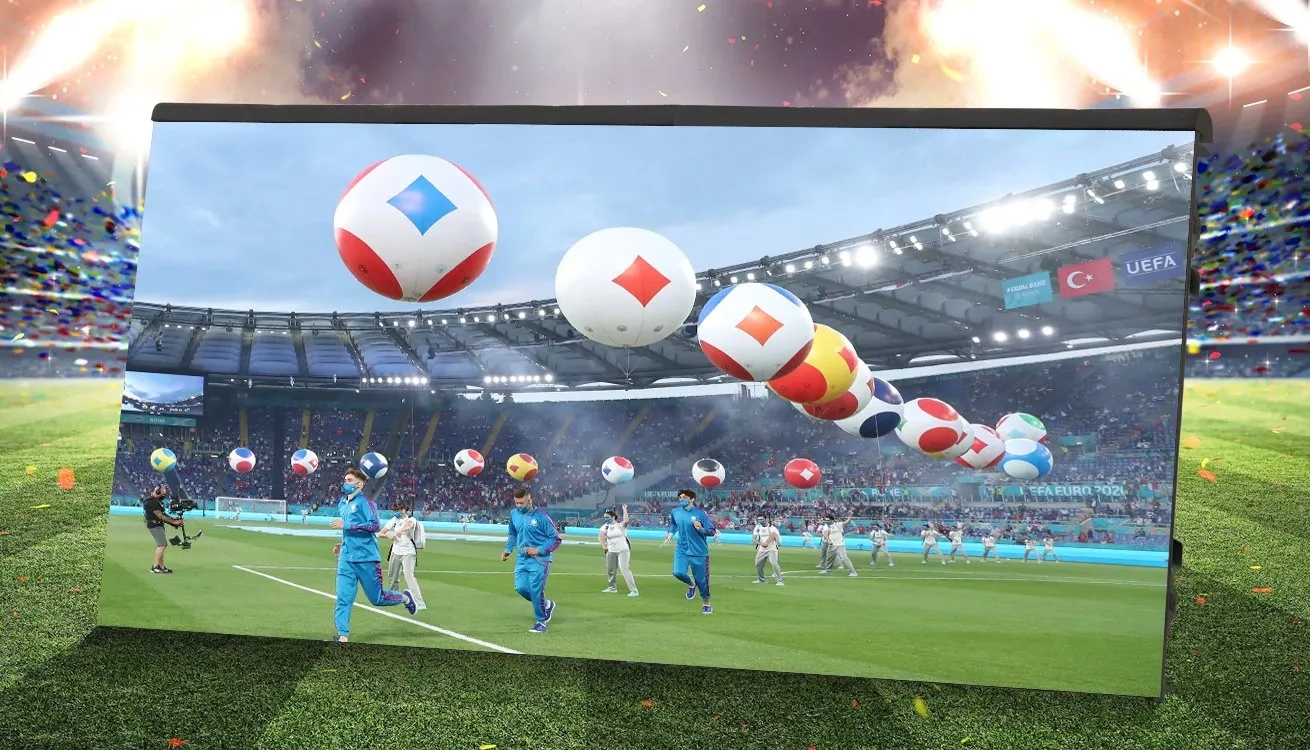

High Refresh Rate

The refresh rate of up to 3800Hz, real-time switching without flicker,
ensures a fine high-definition display screen.

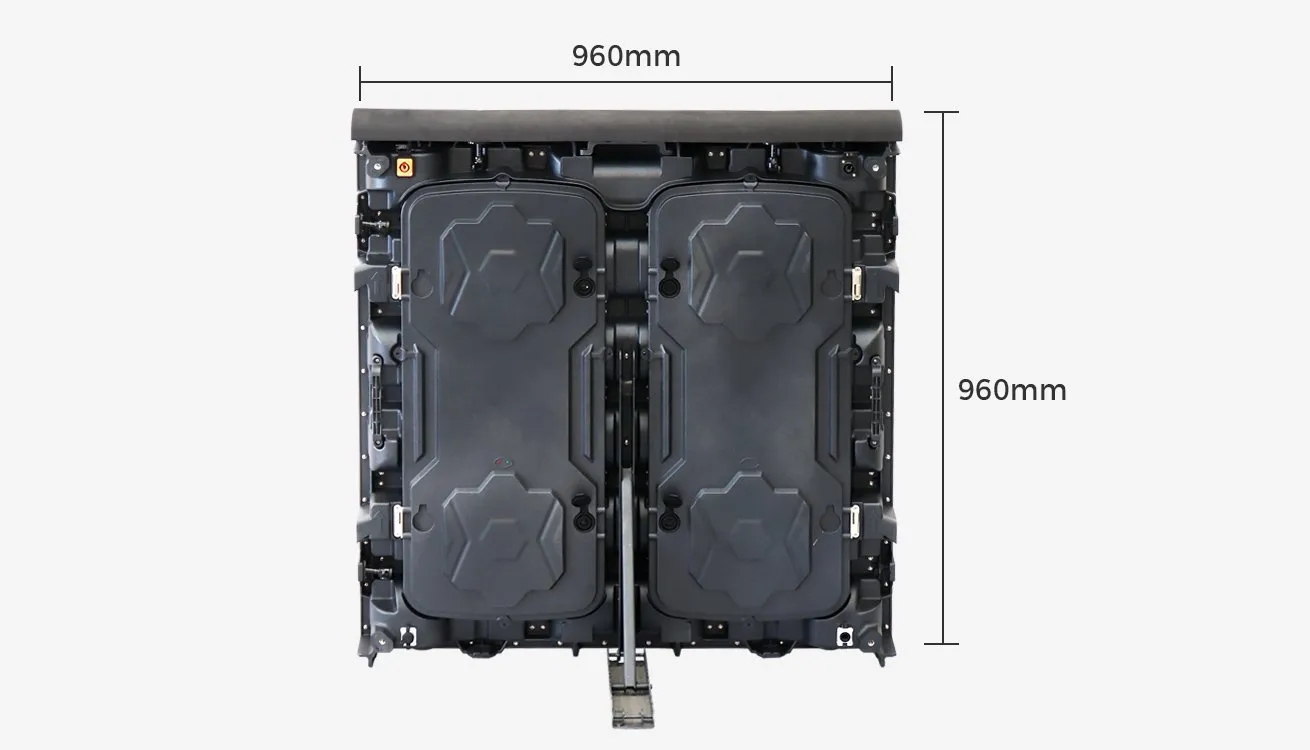

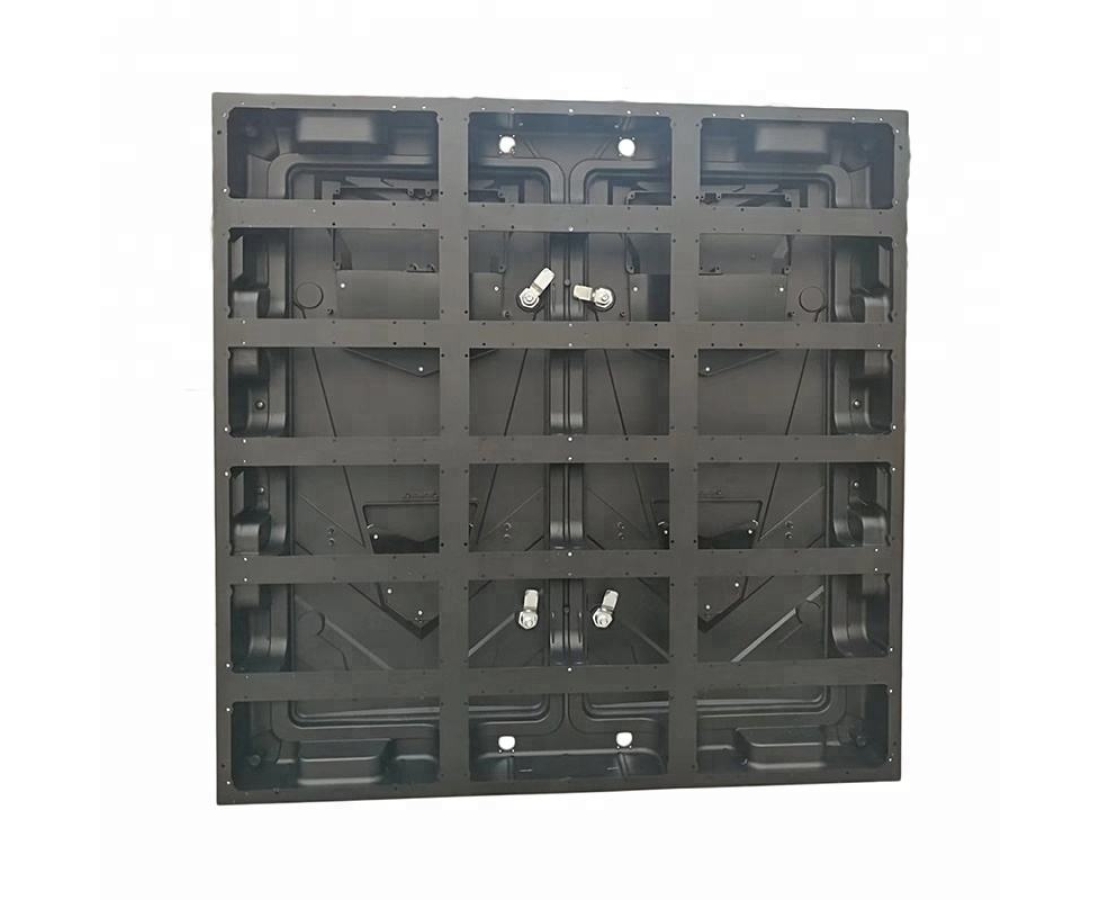

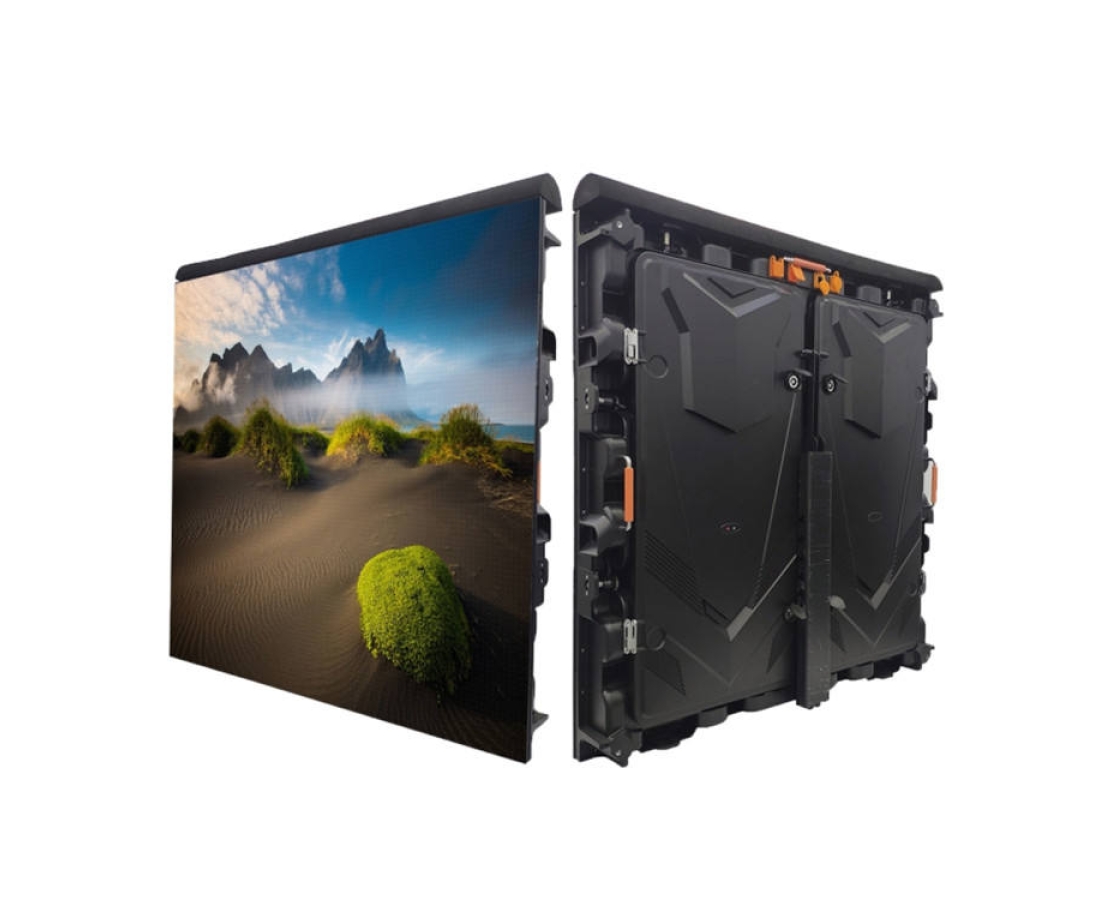

960mmX960mm Standard Display Cabinet

TP 960SP Series LED display with 960mmx960mm standard size cabinet design.
Unify the Standard LED Display Cabinet Screw Holes for all Kinds of standard led module (320*160mm).

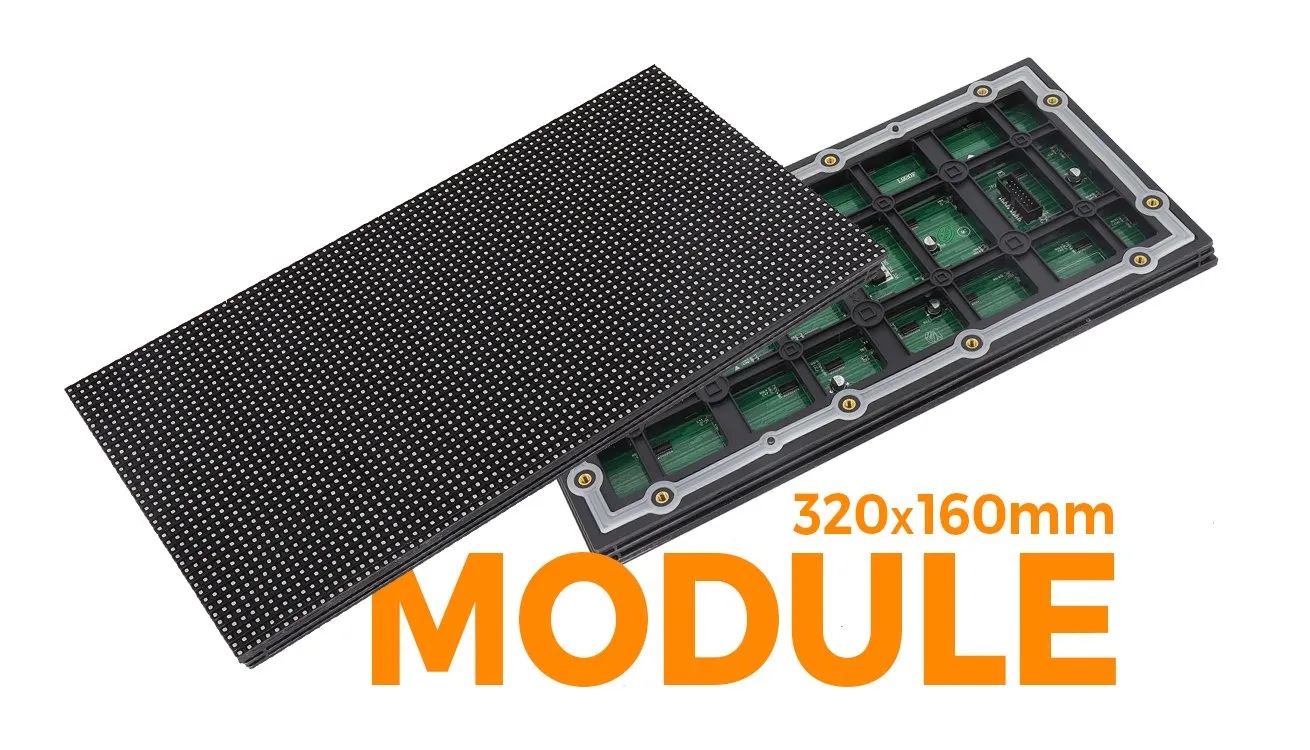

320mmX160mm Standard LED Module

TP 960SP Series LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure

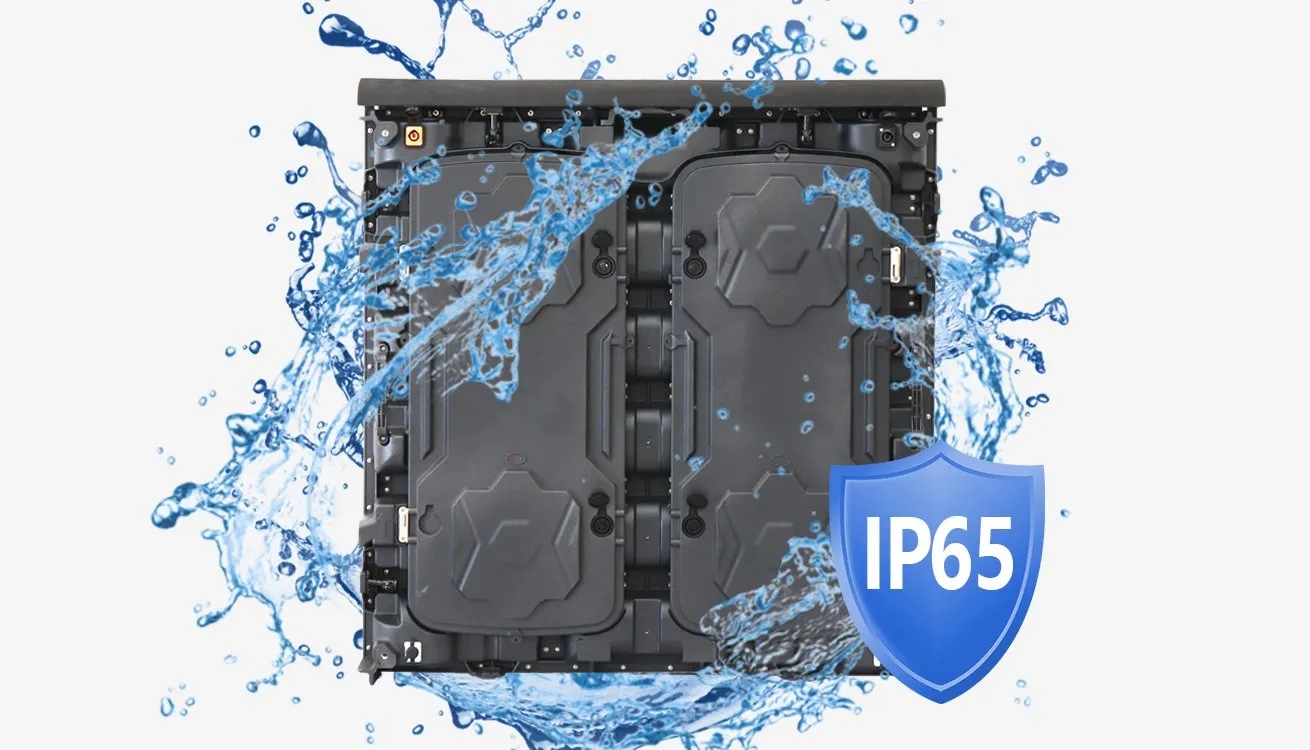

IP65 Waterproof

The ingress protection of cabinet rating up to IP65, the fully sealed cabinet is weatherproof, dustproof, damp-proof,
bringing the ingress protection of led display up to a new level.

Wide Viewing Angle

Viewing angle is up to 120° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area.
It offers you clear and natural images in all directions.

TP 960SP Outdoor 960×960mm Stadium Perimeter LED Display Parameter

Pixel Pitch	P6.67	P8	P10 (2S)	P10 (4S)
Model	960SP-P6.67	960SP-P8	960SP-P10-2S	960SP-P10-4S
Pixel Configuration	SMD3535	SMD3535	SMD3535	SMD3535
Density (Pixels/㎡)	22,478	15,625	10,000	10,000
Module Resolution (Pixel)	48x24	40x20	32x16	32x16
Module Size (mm)	320x160	320x160	320x160	320x160
Driving Mode (Duty)	1/6	1/5	1/2	1/4
Cabinet Size (mm)	960x960	960x960	960x960	960x960
Cabinet Weight (KG)	28.5	28.5	28.5	28.5
Brightness (CD/㎡)	≥6,500	≥6,500	≥7,500	≥6,000
Viewing Angle (°)	140	140	140	140
Gray Grade (Bits)	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	892	600	850	540
Avg. Power Consumption (W/㎡)	298	200	285	180
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000
Protecting Grade	IP65(front),IP54(rear)	IP65(front),IP54(rear)	IP65IP65(front),IP54(rear)	IP65(front),IP54(rear)
