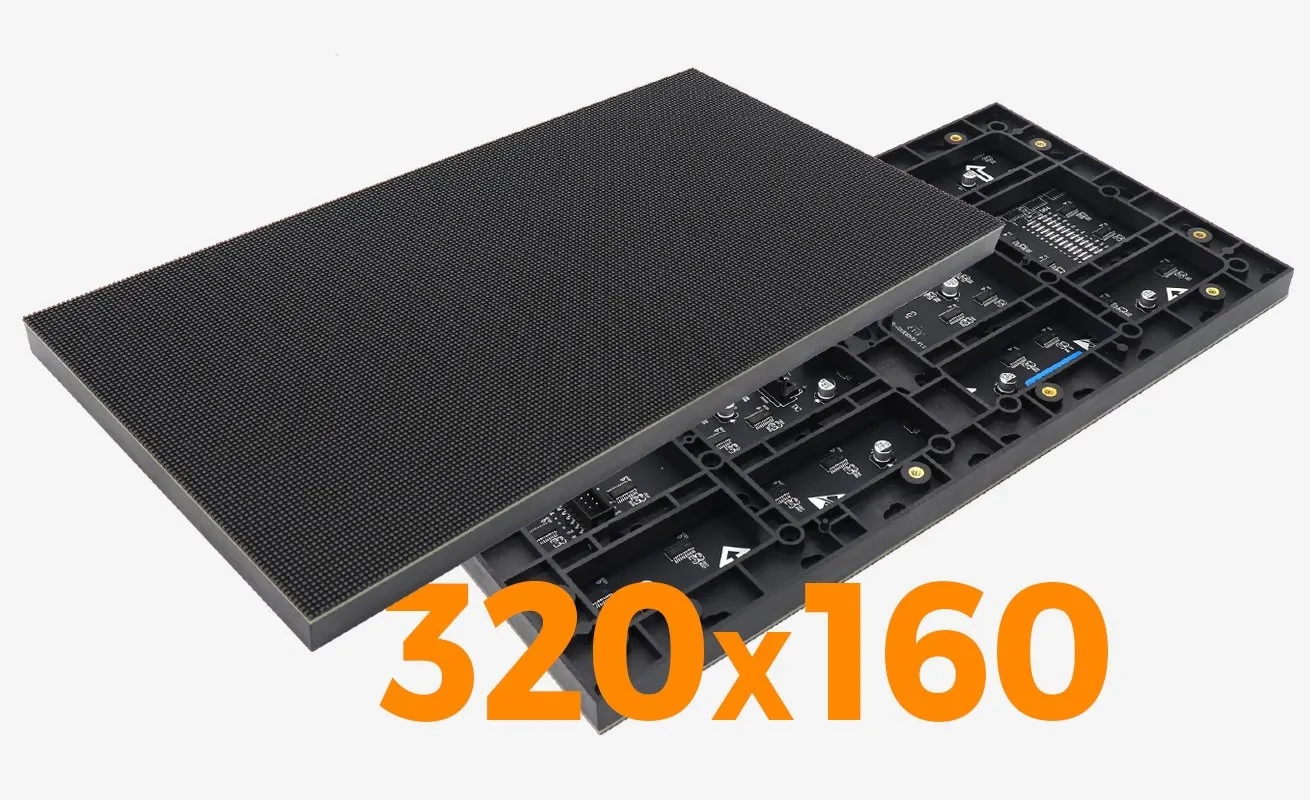

Standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

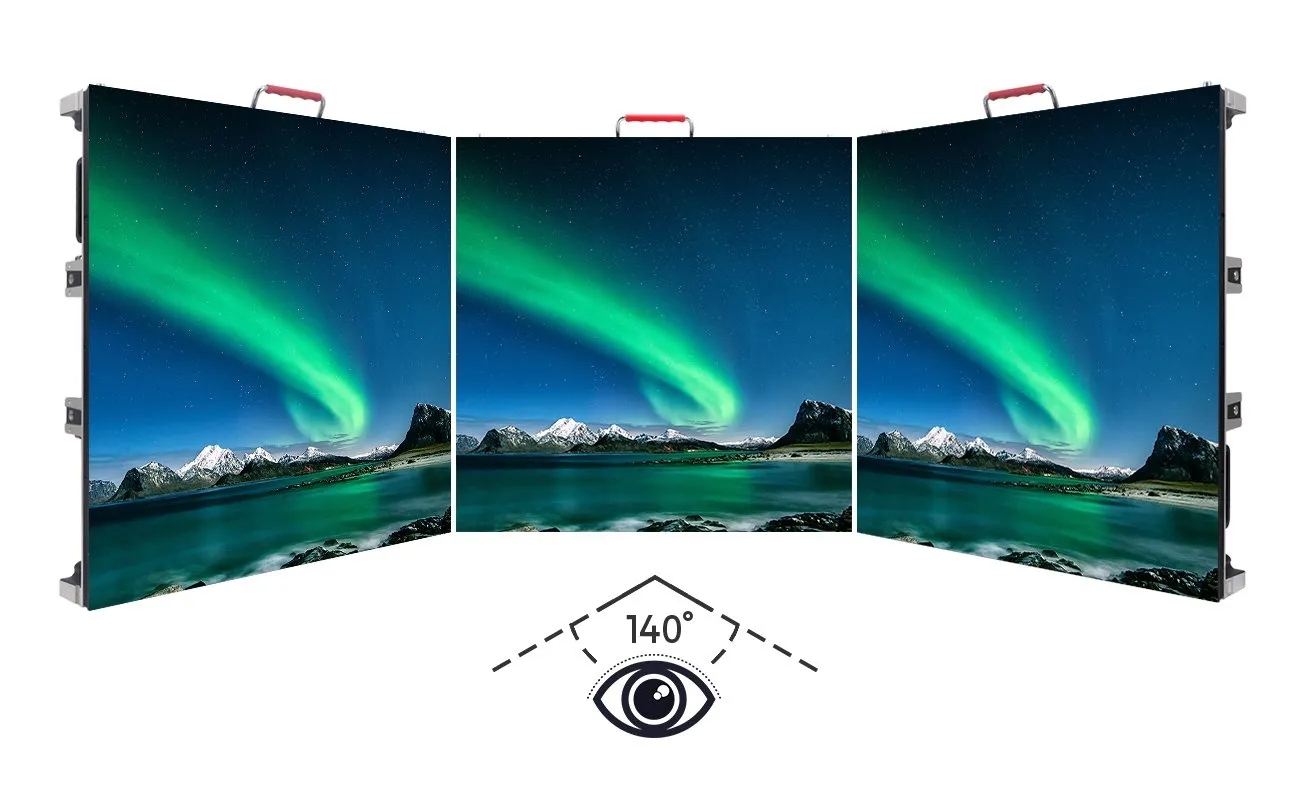

Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

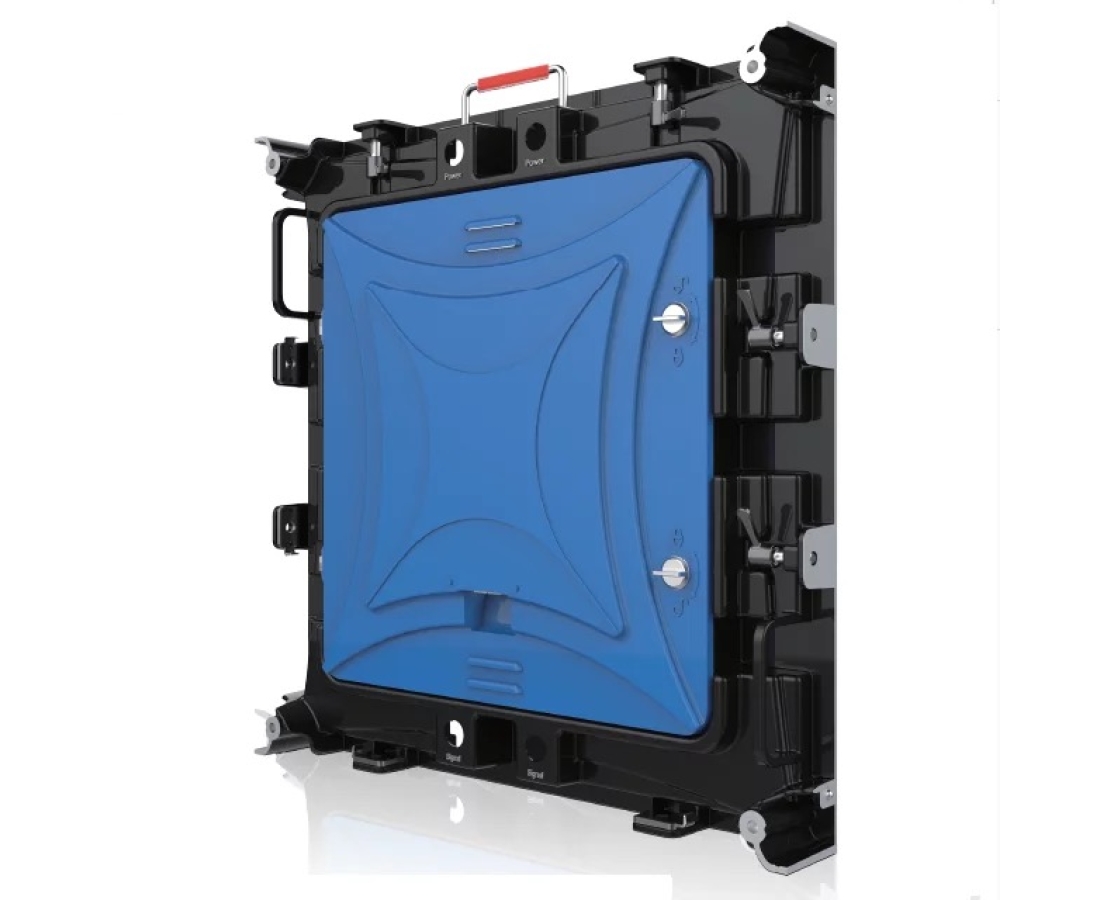

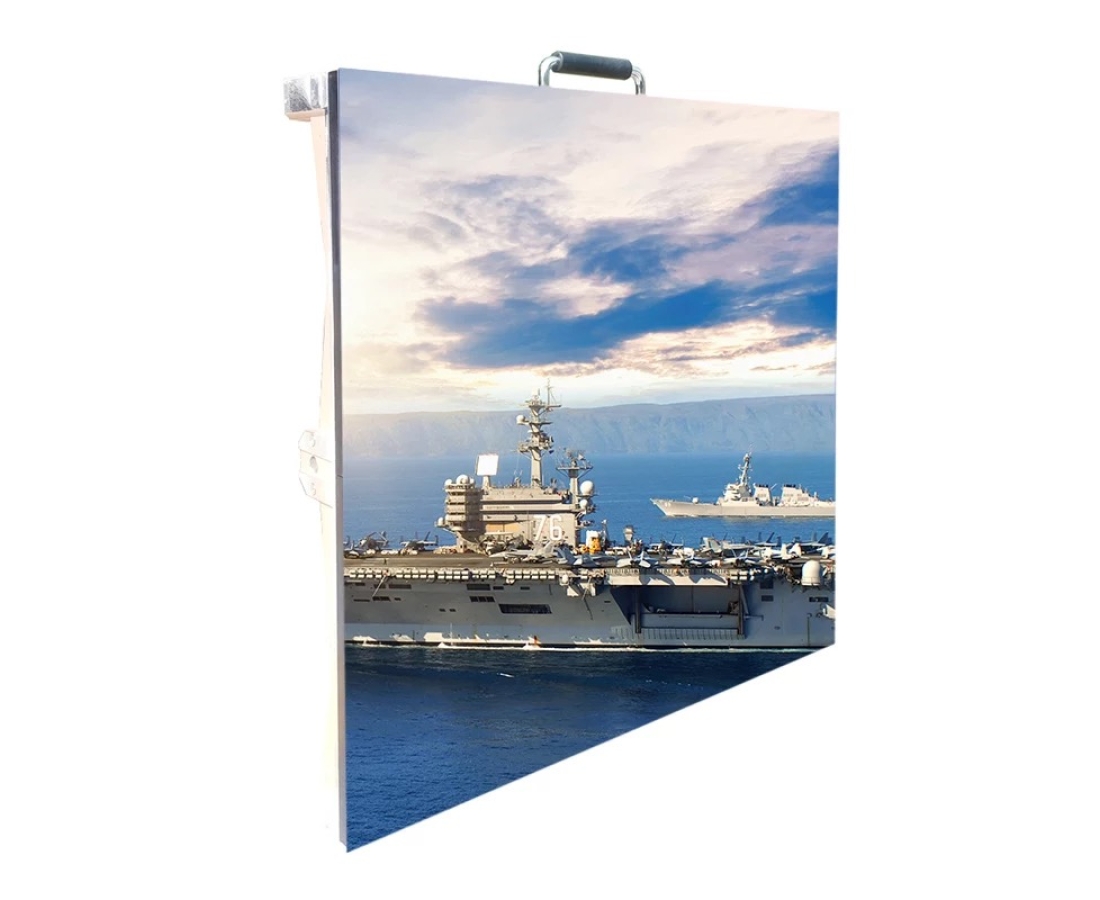

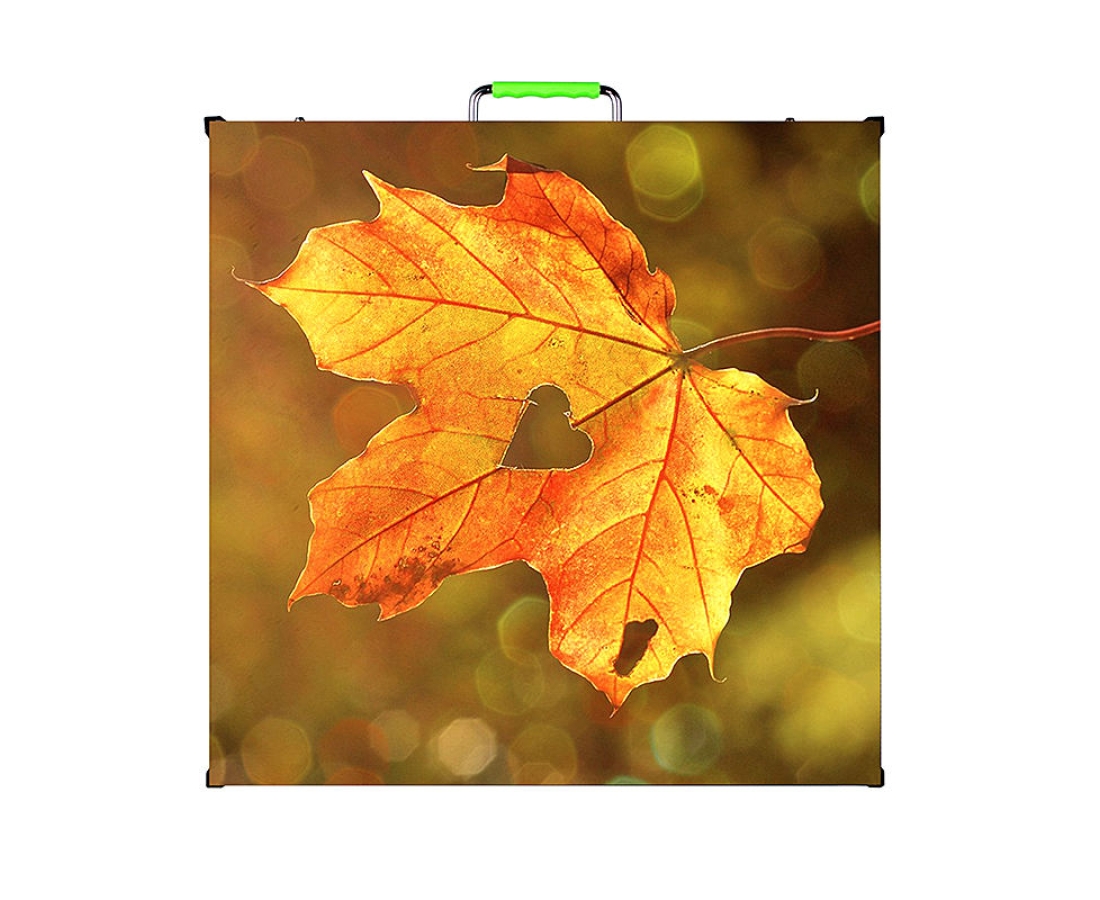

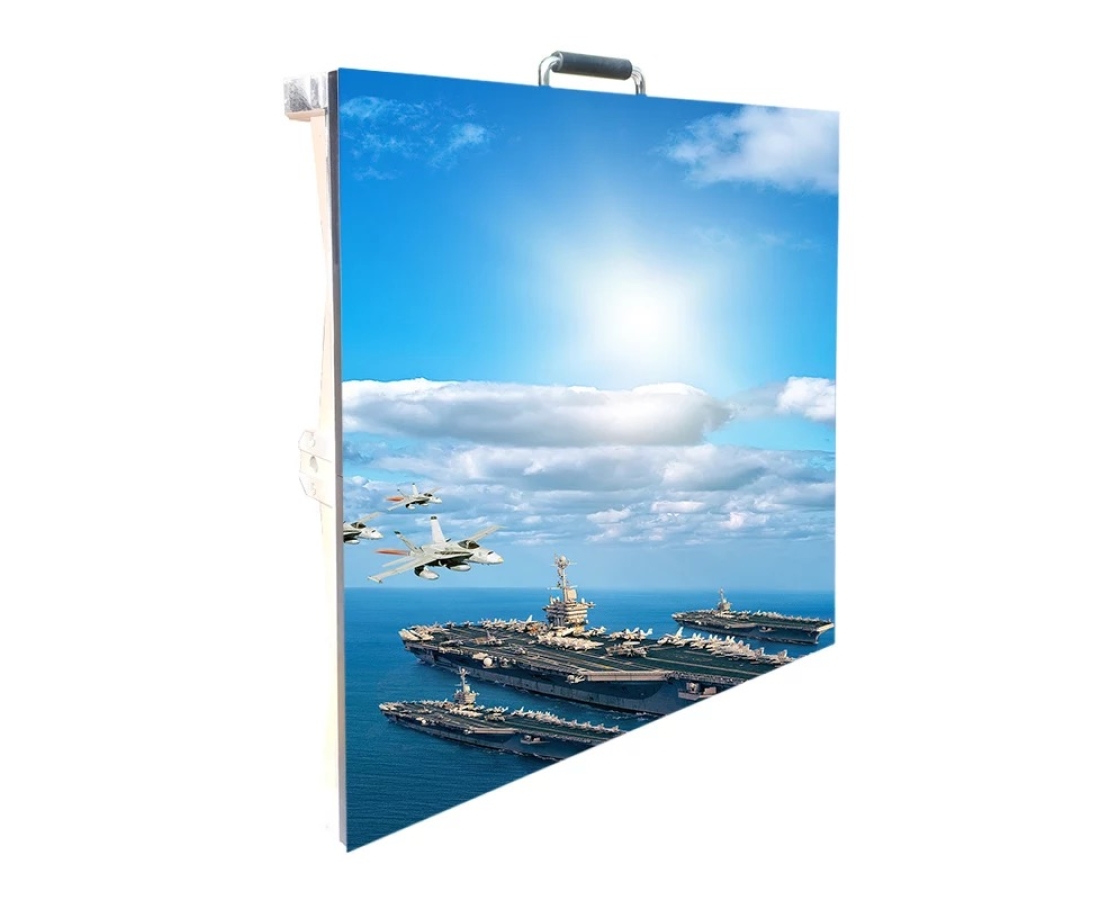

Outdoor 640×640 Rental LED Display Series Parameter
Pixel Pitch (mm) |
P2.5 |
P3.076 |
P4 |
P5 |
P6.67 |
Model |
P2.5 |
P3.076 |
P4 |
P5 |
P6.67 |
Pixel Configuration |
SMD1415 |
SMD1415 |
SMD1921 |
SMD2727 |
SMD3535 |
Density (Pixels/㎡) |
160,000 |
105,688 |
62,500 |
40,000 |
22,500 |
Module Resolution (Pixel) |
128x64 |
104x52 |
80x40 |
64x32 |
48x24 |
Module Size (mm) |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
Driving Mode (Duty) |
1/16 |
1/13 |
1/10 |
1/8 |
1/6 |
Cabinet Size (mm) |
640x640 |
640x640 |
640x640 |
640x640 |
640x640 |
Cabinet Weight (KG) |
12 |
12 |
12 |
12 |
12 |
Brightness (CD/㎡) |
≥5,000 |
≥5,000 |
≥5,500 |
≥6,000 |
≥6,500 |
Viewing Angle (°) |
140 |
140 |
140 |
140 |
140 |
Gray Grade (Bits) |
14 |
14 |
14 |
14 |
14 |
Operation Power |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) |
786 |
786 |
909 |
836 |
892 |
Avg. Power Consumption (W/㎡) |
262 |
262 |
303 |
280 |
298 |
Frame Frequency (Hz) |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
Refresh Frequency (Hz) |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
Working Temperature (ºC) |
-20~+60 |
-20~+60 |
-20~+60 |
-20~+60 |
-20~+60 |
Lifetime (Hours) |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
Protection Grade |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
Pixel Pitch (mm) |
P2 |
P2.5 |
P3.076 |
P4 |
P5 |
Model |
P2 |
P2.5 |
iP3.076 |
P4 |
iP5 |
Pixel Configuration |
SMD1515 |
SMD2121 |
SMD2121 |
SMD2121 |
SMD2121 |
Density (Pixels/㎡) |
250,000 |
160,000 |
105,688 |
62,500 |
40,000 |
Module Resolution (Pixel) |
160x80 |
128x64 |
104x52 |
80x40 |
64x32 |
Module Size (mm) |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
Driving Mode (Duty) |
1/40 |
1/32 |
1/26 |
1/20 |
1/16 |
Cabinet Size (mm) |
640x640 |
640x640 |
640x640 |
640x640 |
640x640 |
Cabinet Weight (KG) |
9 |
9 |
9 |
9 |
9 |
Brightness (CD/㎡) |
≥800 |
≥800 |
≥1,000 |
≥800 |
≥800 |
Viewing Angle (°) |
140 |
140 |
140 |
140 |
140 |
Gray Grade (Bits) |
14 |
14 |
14 |
14 |
14 |
Operation Power |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) |
439 |
457 |
413 |
351 |
312 |
Avg. Power Consumption (W/㎡) |
150 |
153 |
138 |
117 |
104 |
Frame Frequency (Hz) |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
Refresh Frequency (Hz) |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
Working Temperature (ºC) |
-20~+60 |
-20~+60 |
-20~+60 |
-20~+60 |
-20~+60 |
Lifetime (Hours) |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
Protection Grade |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
