500x500 Rental LED Display

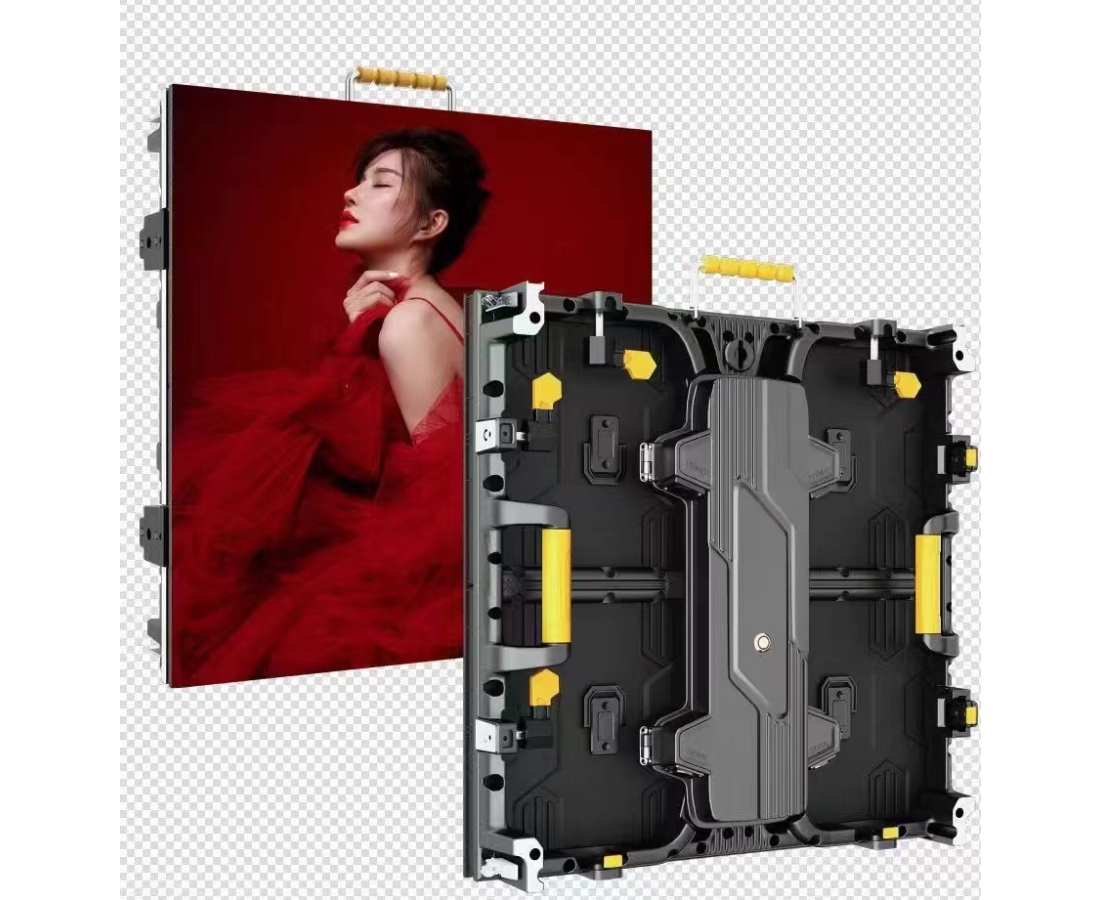

* 500*500mm cabinet with ultra-thin design, removable back cover, high-precision curve lock for curved installation, LED corner protector, magnetic module.

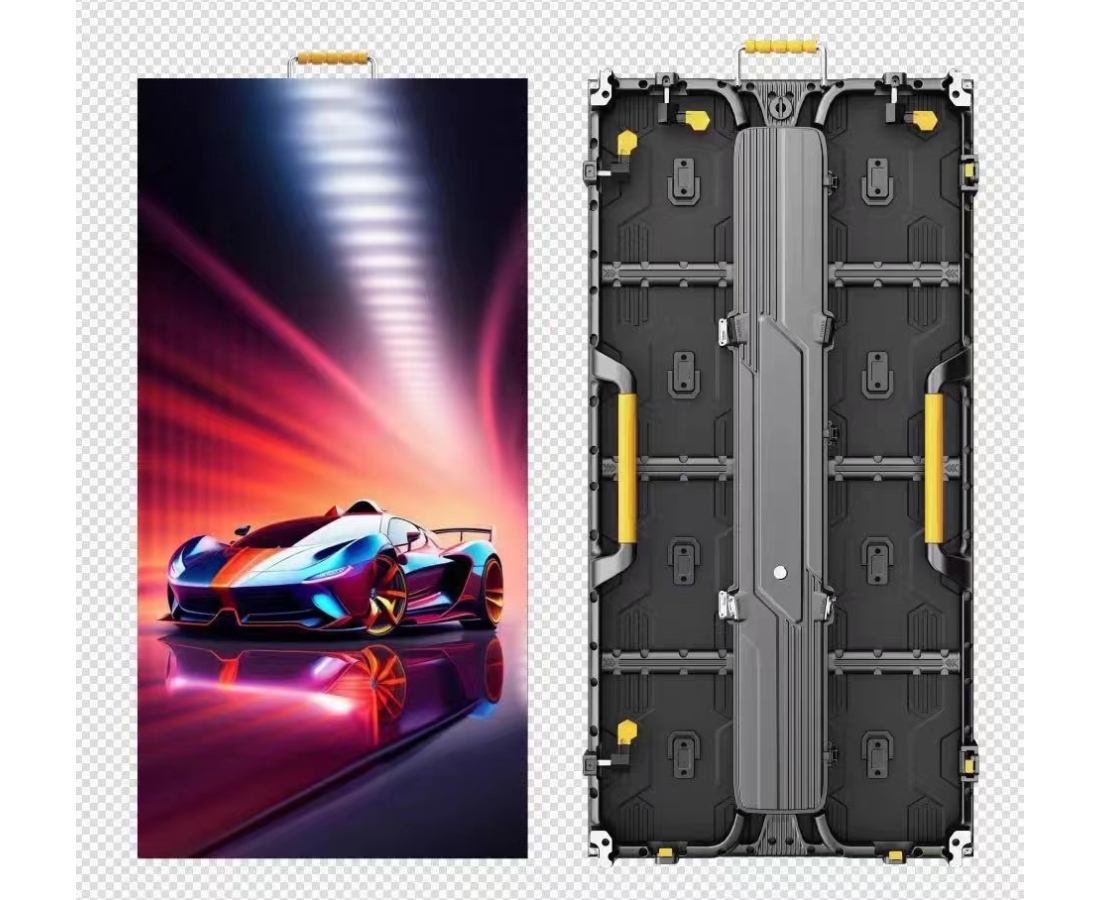

* 500*1000mm standard cabinet size, Ultra-Light die-casting aluminum., ultra-thin thickness with 80mm. For easy transport and Portable.

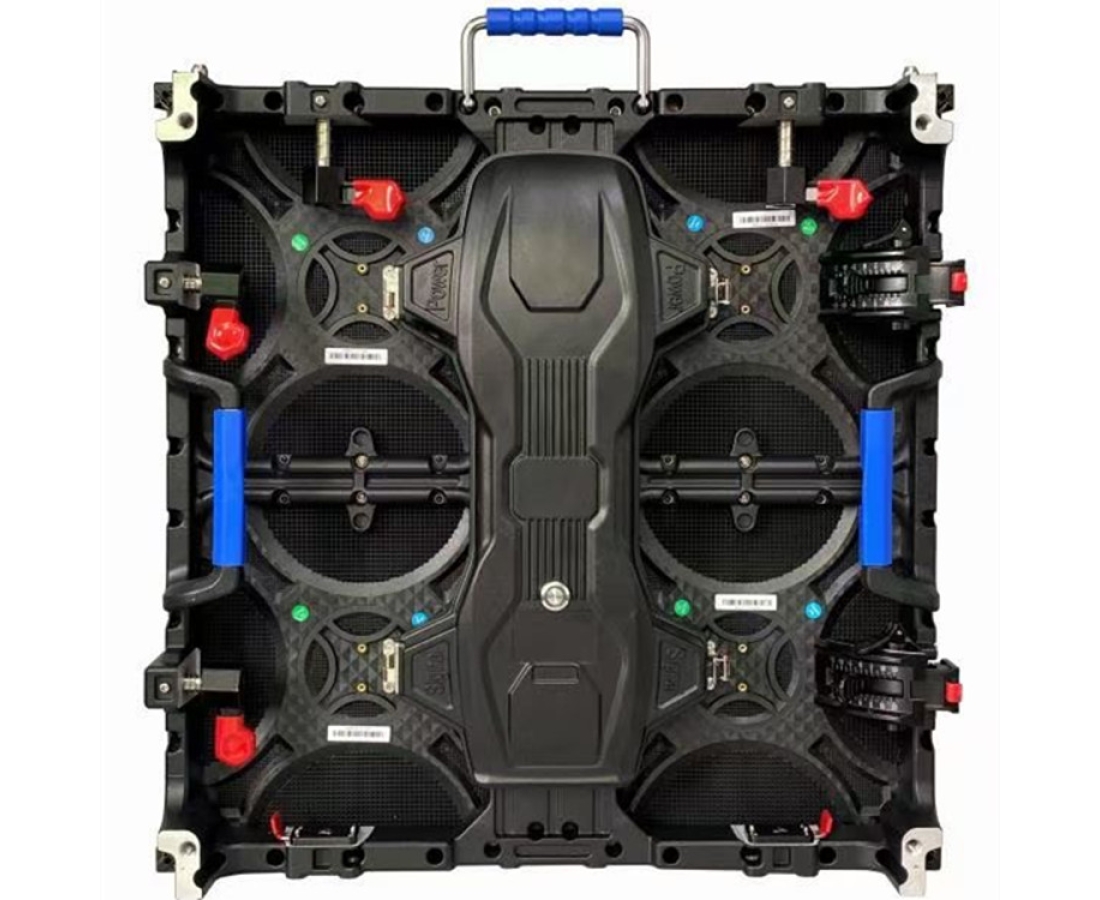

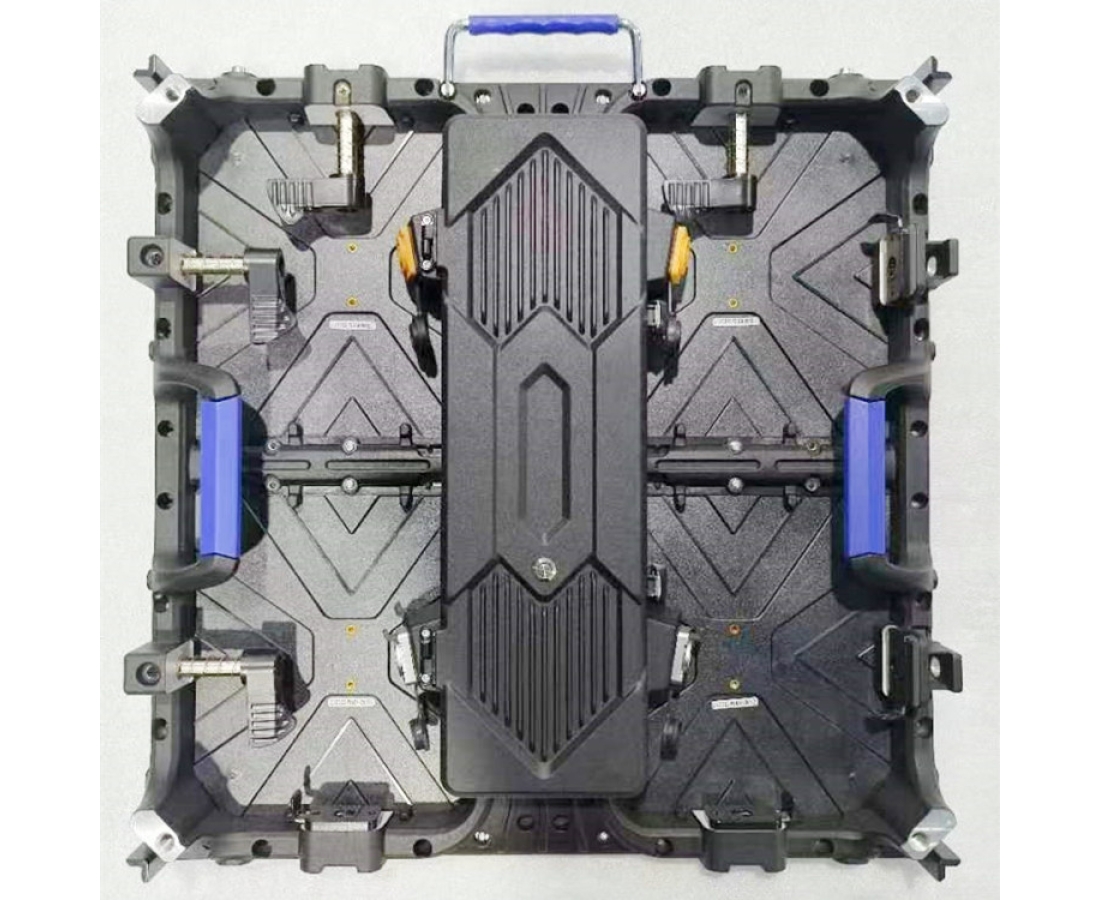

* Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more.
* Hard Connection Design with detachable Power box and HUB Poard, High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assamble and disassamble of back cover.
* Adopt high-precision curve lock design (-10° to +10°), rotation control, more accurate,
easy to use, and quickly adjust the degree of curve.

Categories:Rental LED Screen

Add To Basket Get A Quote

Product Description

Cabinet Size	500mm500mm76.5mm(The Max. Thickness )
Cabinet Weight	6kg(Aluminum door)Suite and Power supply
Cabinet Material	Aluminum
Installation ways	Crane girder hoisting/Ground Stacking/Fixed
Maintain Methods	Front/Back
Working Invironment	Outdoor (-40°~60°)
Standard accessories	1 Movable door 1 Handle,Grasped from 3 sides 2 positioning pins 1 electrical installation board 4 connection piece Holes 4 Quick Locks(2 Quick lock+2 Radian locks)
Suite Quan.	4 pcs of 250mm*250mm modules / cabinet
Application Scope of Pixel Pitch	P1.953/P2.5/P2.604/P2.976/P3.91/P4.81/P5.95
Optional	Navigation power plug Navigation signal plug Indicator Light Hanging Beam
