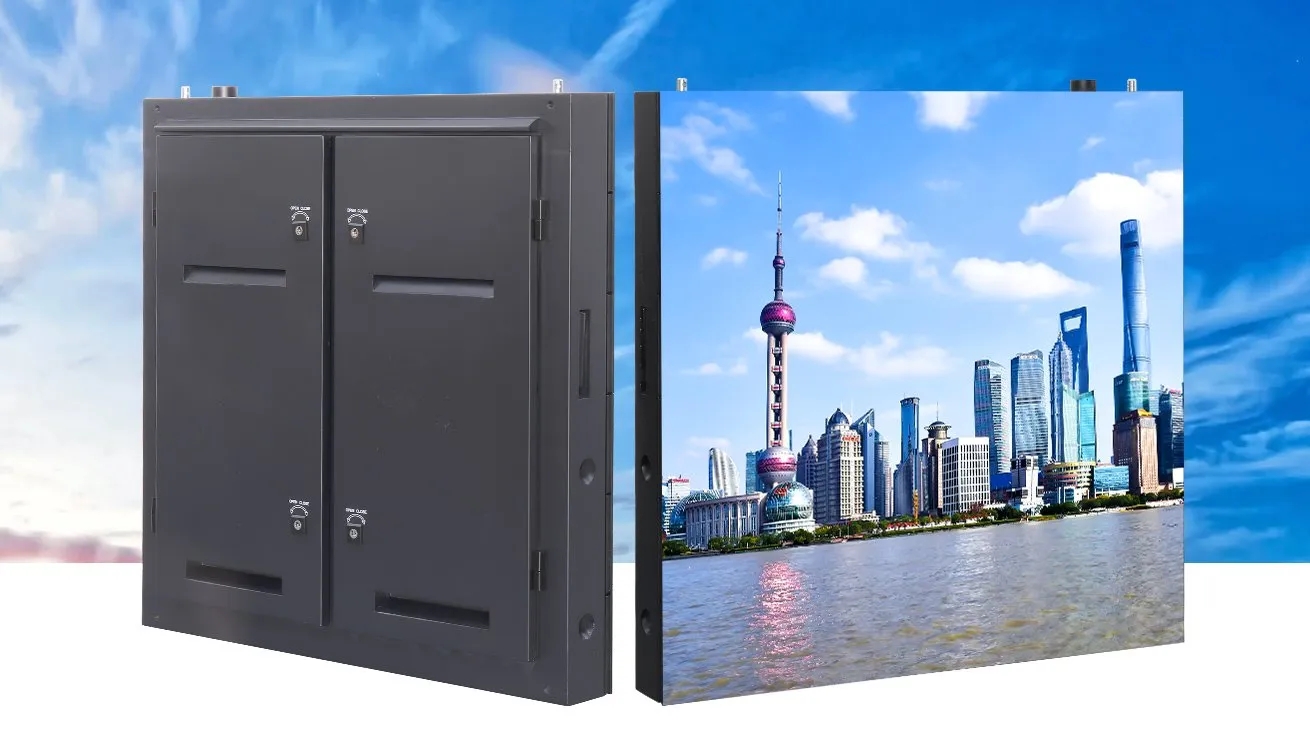

The SMD Encapsulation technology with high brightness makes the Outdoor Fixed LED display has a Vivid and smoother pictures when in use.
We choose the best driver IC for outdoor LEDs, with high reliability and contrast ratio,
to meet the needs of high brightness, high refresh rate, high grayscale, and the best color uniformity.

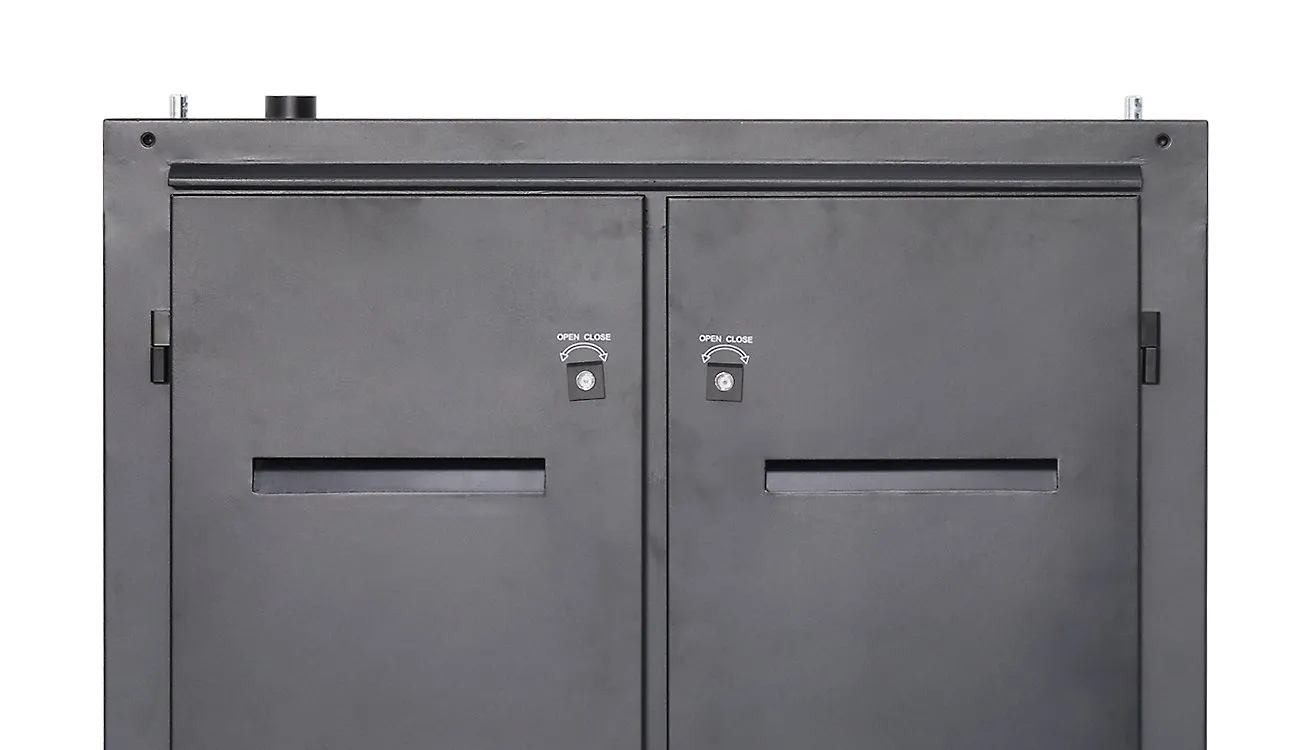

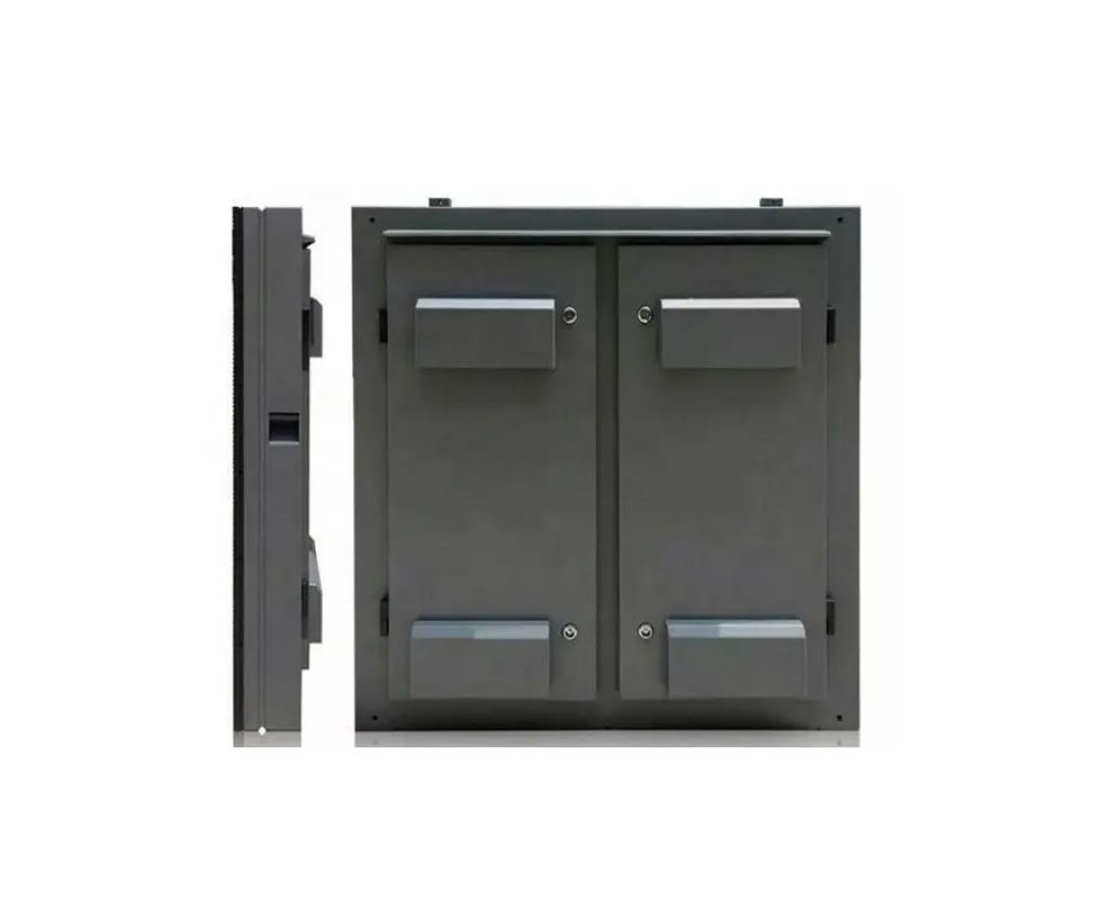

Outdoor fixed-installation LED display cabinets are heat-treated with iron materials to improve heat resistance.
The cabinet has high hardness and excellent wind and cold resistance.

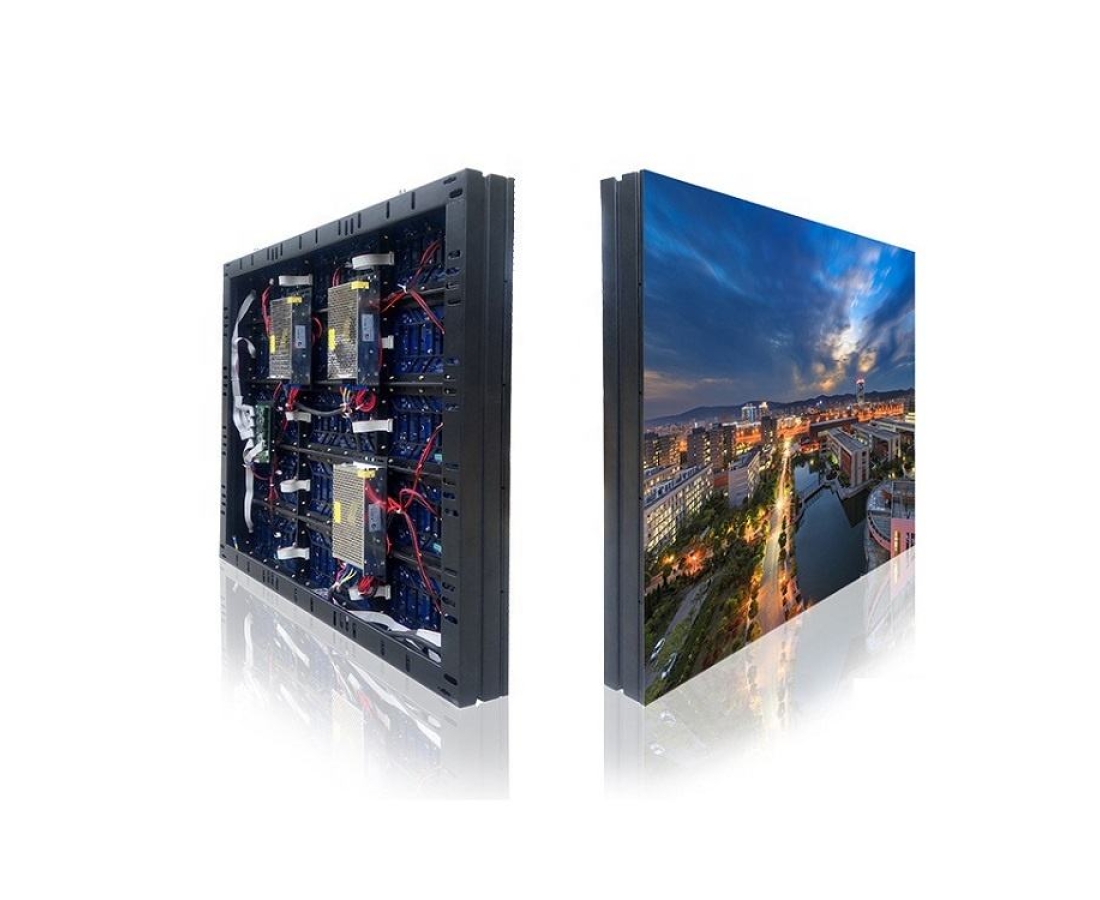

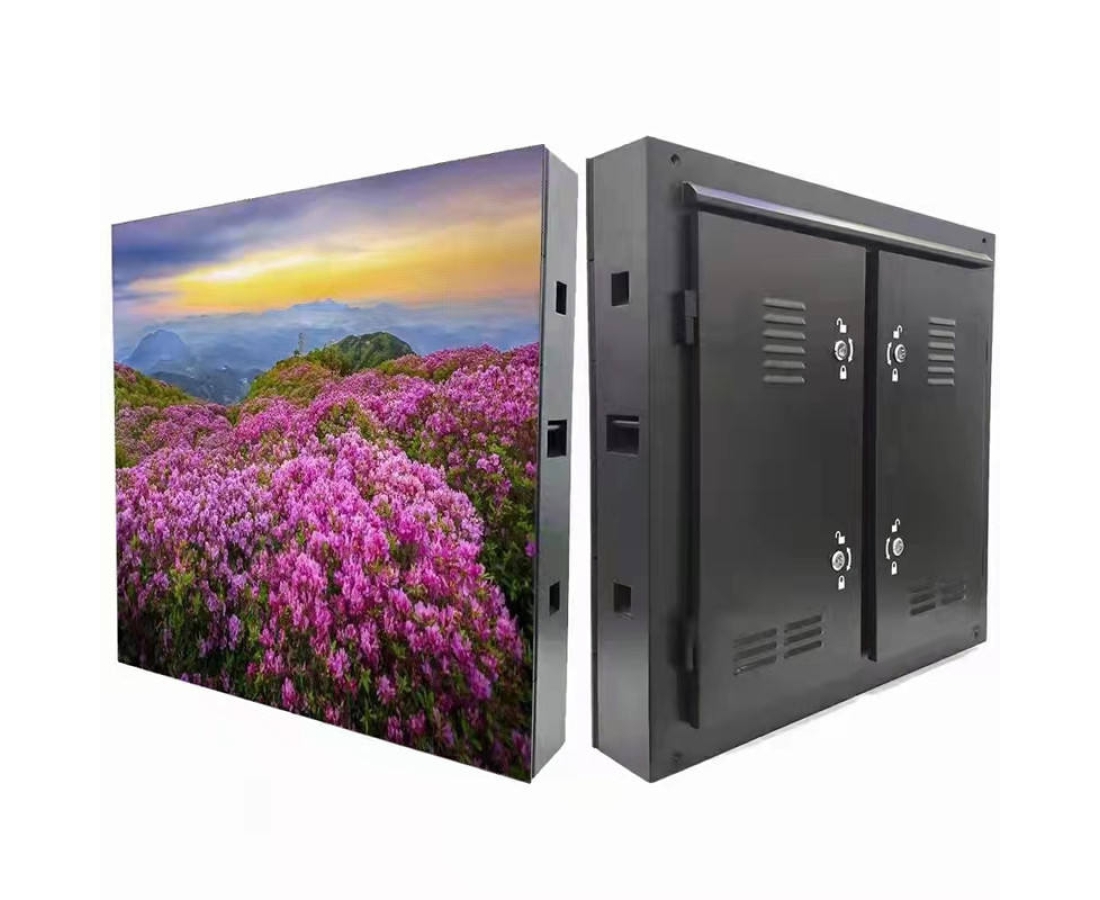

Outdoor fixed full LED display products are lighter in weight, LED display with quick lock function, compact structure,
easy to install, no gaps.The user-friendly handlebar design makes it easier to move the cabinet.

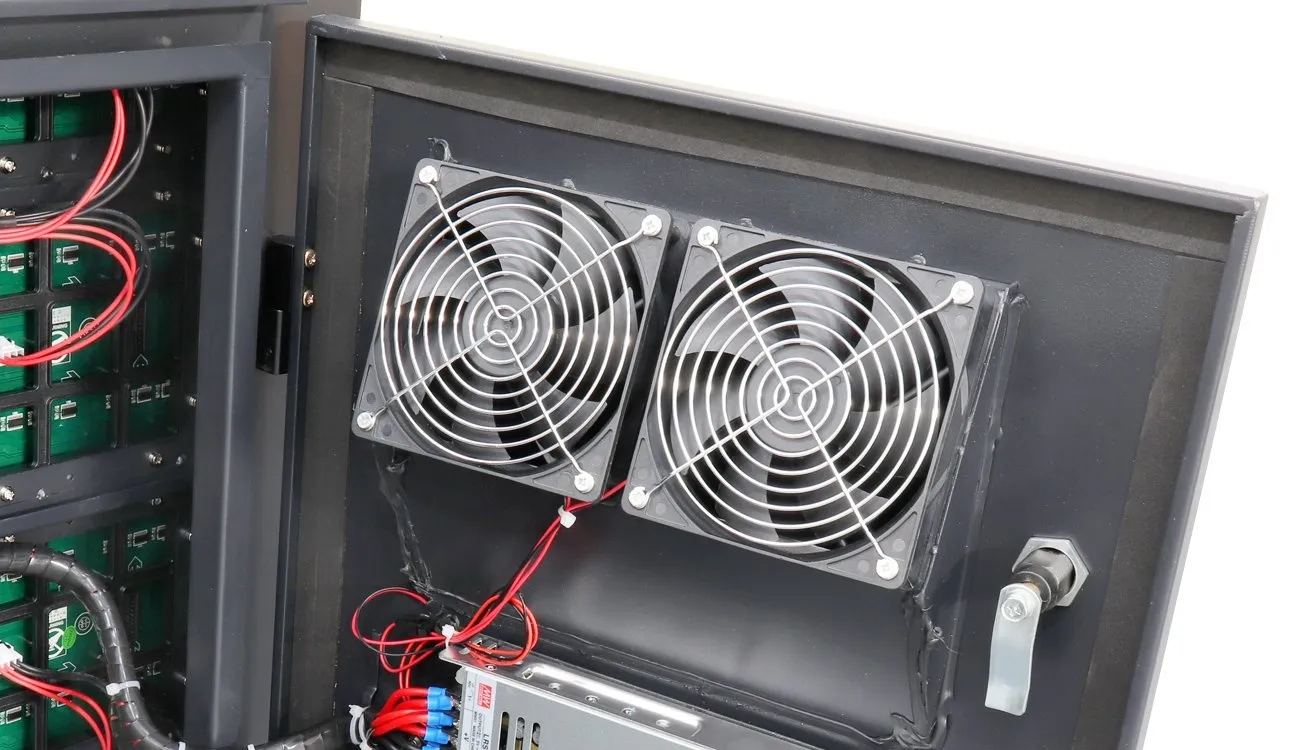

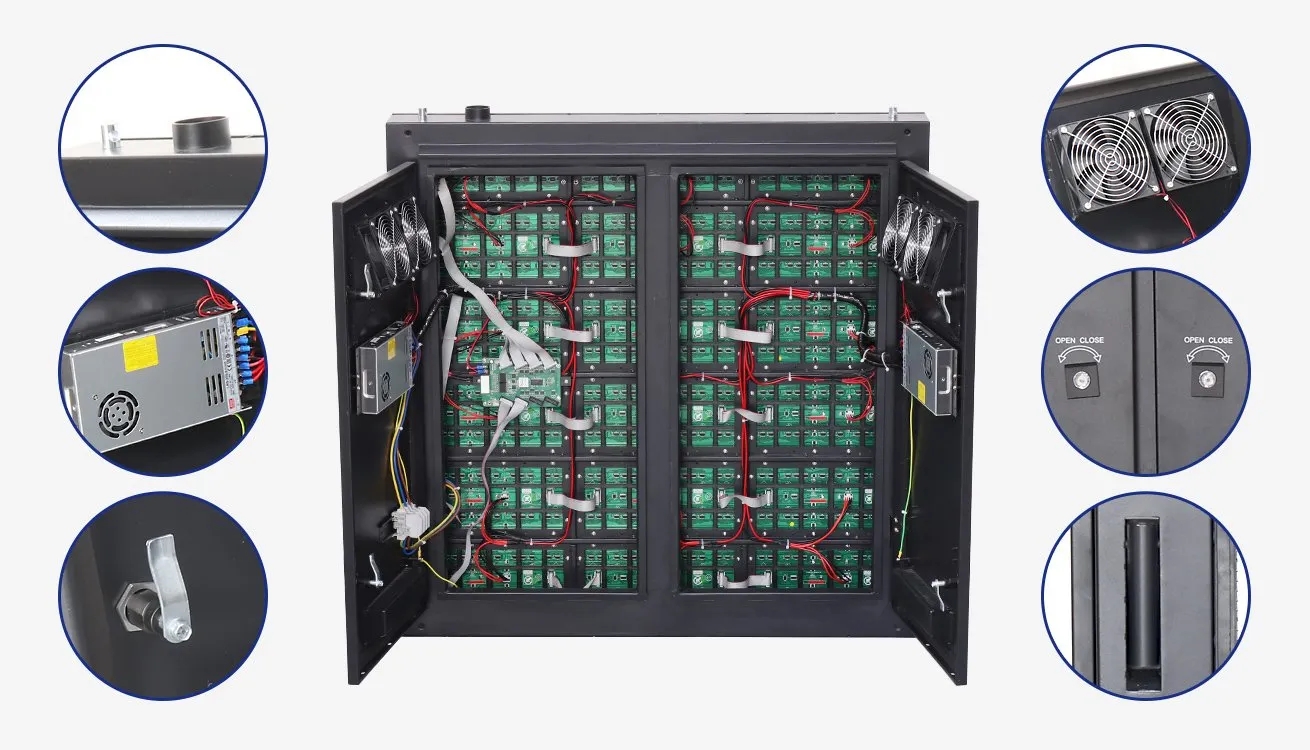

There are 4 aerofoil fans in each cabinet to make 960×960 Outdoor Fixed LED display cooling immediately.
entilation volume is 6.6 cubic meter per minute, air circulation 25 times every minute inside the cabinet.

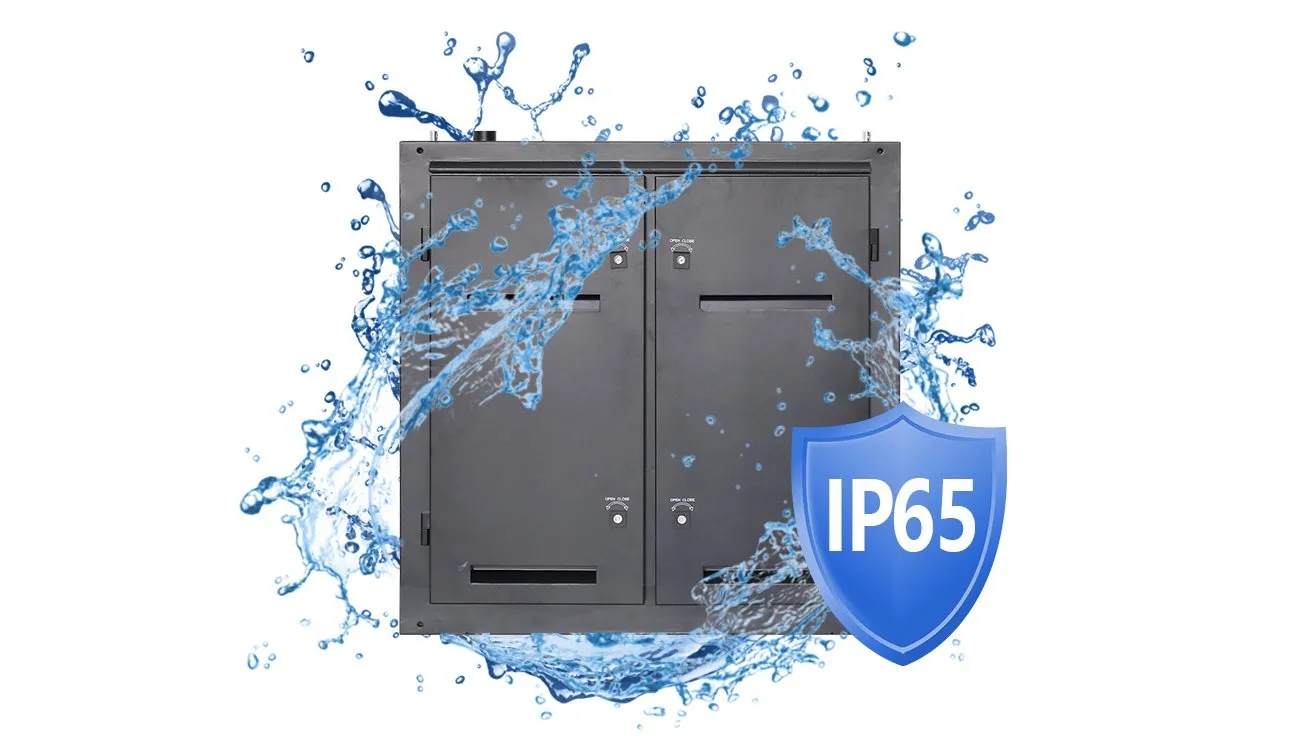

Using TPLED’s unique protection technology, the display can work normally under any weather conditions!
High level of protection is guaranteed, durable, reliable, anti-ultraviolet, and stable.
IP65 dustproof and waterproof, can resist some bad weather in outdoor activities.

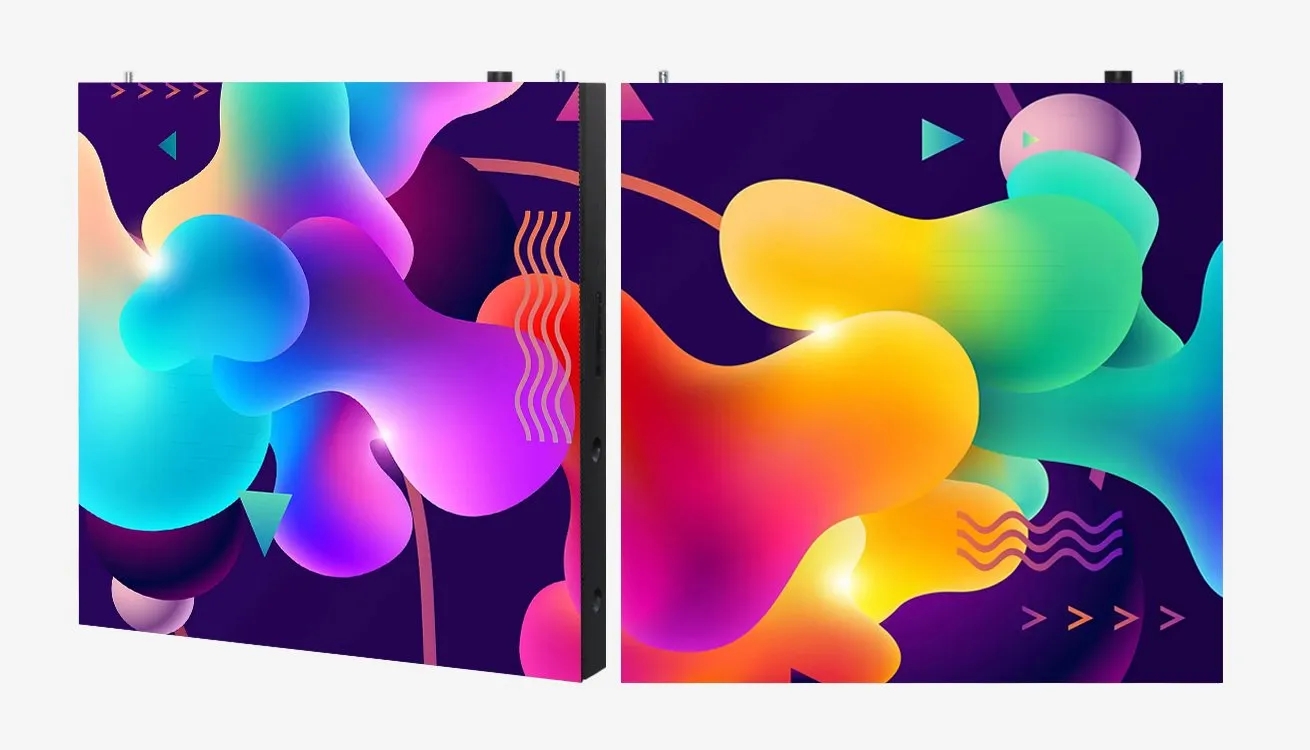

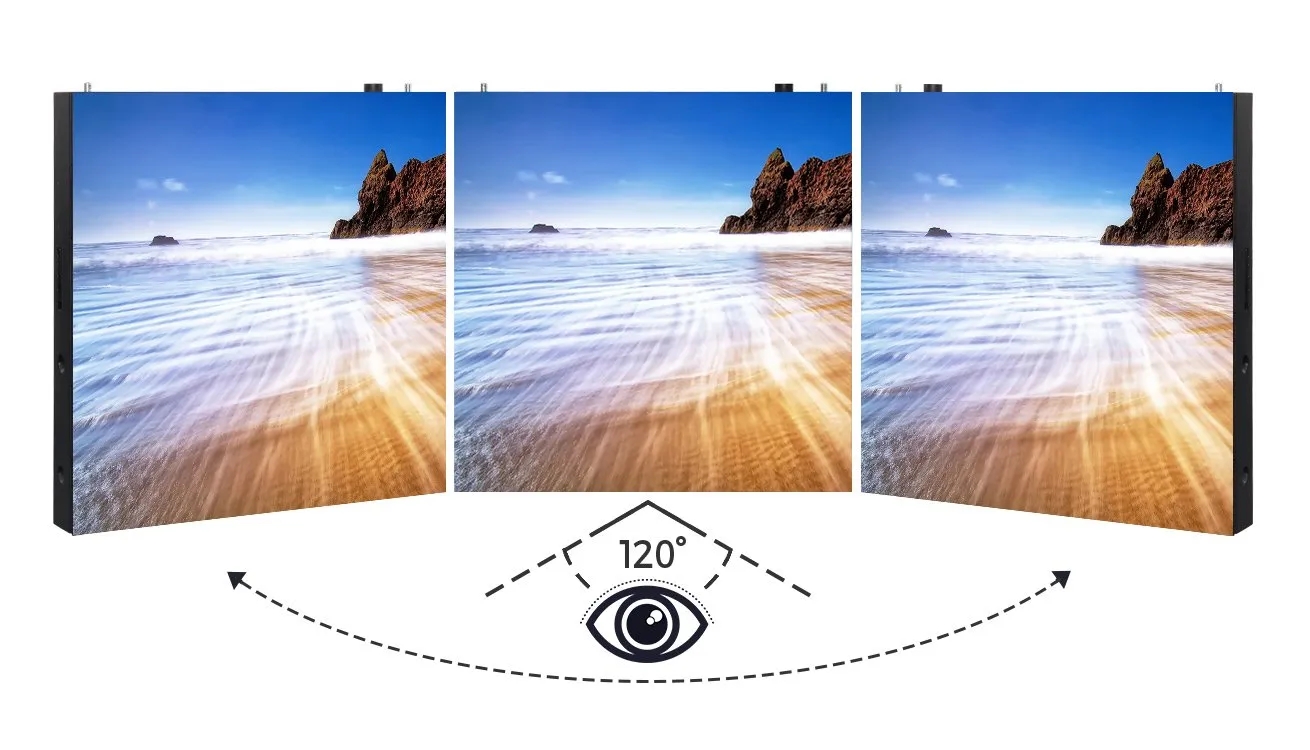

Viewing angle is up to 120° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
|
Pixel Pitch (mm) |
P3 |
P4 |
P5 |
P6 |
P8 |
P10 (2S) |
P10 (4S) |
|
Model |
P3-576x576 |
P4-512x512 |
P5-640x640 |
P6-768x768 |
P8-1024x768 |
P10-2S-960x960 |
P10-4S-960x960 |
|
Pixel Configuration |
SMD1415 |
SMD1921 |
SMD1921 |
SMD3535 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Density (Pixels/㎡) |
111,111 |
62,500 |
40,000 |
27,778 |
15,625 |
10,000 |
10,000 |
|
Module Resolution (Pixels) |
64x64 |
64x32 |
64x32 |
32x32 |
32x16 |
32x16 |
32x16 |
|
Module Size (mm) |
192x192 |
256x128 |
320x160 |
192x192 |
256x128 |
320x160 |
320x160 |
|
Driving Mode (Duty) |
1/16 |
1/8 |
1/8 |
1/8 |
1/4 |
1/2 |
1/4 |
|
Cabinet Size (mm) |
576x576 |
512x512 |
640x640 |
768x768 |
1024x768 |
960x960 |
960x960 |
|
Cabinet Weight (KG) |
15 |
11 |
16 |
23.5 |
30 |
36 |
36 |
|
Brightness (CD/㎡) |
≥5,500 |
≥5,500 |
≥6,000 |
≥6,500 |
≥6,500 |
≥7,500 |
≥6,000 |
|
Viewing Angle (°) |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
|
Gray Grade (Bits) |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
Operation Power |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
|
Max. Power Consumption (W/㎡) |
810 |
900 |
836 |
840 |
760 |
850 |
540 |
|
Avg. Power Consumption (W/㎡) |
270 |
300 |
280 |
280 |
260 |
285 |
180 |
|
Frame Frequency (Hz) |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
|
Refresh Frequency (Hz) |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
|
Working Temperature (ºC) |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
|
Lifetime (Hours) |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
|
Protection Grade |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
Outdoor Fixed Installation LED Display (die-cast) Parameter
|
Pixel Pitch (mm) |
P3(die-cast) |
P4(die-cast) |
P4(die-cast) |
P6(die-cast) |
P8(die-cast) |
P8(die-cast) |
|
Avg. Power Consumption (W/㎡) |
270 |
300 |
300 |
280 |
260 |
260 |
|
Brightness (CD/㎡) |
≥5,500 |
≥5,500 |
≥5,500 |
≥6,500 |
≥6,500 |
≥6,500 |
|
Cabinet Size (mm) |
768x768 |
768x768 |
1024x768 |
768x768 |
768x768 |
1024x768 |
|
Cabinet Weight (KG) |
23 |
23 |
30 |
23 |
23 |
30 |
|
Density (Pixels/㎡) |
111,111 |
62,500 |
62,500 |
27,778 |
15,625 |
15,625 |
|
Driving Mode (Duty) |
1/16 |
1/8 |
1/8 |
1/8 |
1/4 |
1/4 |
|
Frame Frequency (Hz) |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
|
Gray Grade (Bits) |
14 |
14 |
14 |
14 |
14 |
14 |
|
Lifetime (Hours) |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
|
Max. Power Consumption (W/㎡) |
810 |
900 |
900 |
840 |
760 |
760 |
|
Model |
P3-576x576 |
P4-768x768 |
P4-1024x768 |
P6-768x768 |
P8-768x768 |
P8-1024x768 |
|
Module Resolution (Pixels) |
64x64 |
64x32 |
64x32 |
32x32 |
32x16 |
32x16 |
|
Module Size (mm) |
192x192 |
256x128 |
256x128 |
192x192 |
256x128 |
256x128 |
|
Operation Power |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
|
Pixel Configuration |
SMD1415 |
SMD1921 |
SMD1921 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Protection Grade |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
IP65(front), IP54(rear) |
|
Refresh Frequency (Hz) |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
|
Viewing Angle (°) |
140 |
140 |
140 |
140 |
140 |
140 |
|
Working Temperature (ºC) |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
