LED Poster Display

*As its name suggests, poster LED screen is widely used as posters for shopping mall,
fashion store, exhibition show, hotel lobby and bank lobby. With its simple structure and easy operation,
poster LED display are used for advertising, information release and product presentation.
*Our company designs this poster screen and publishes new products now and then.

Categories:Fixed LED Display

Add To Basket Get A Quote

Product Description

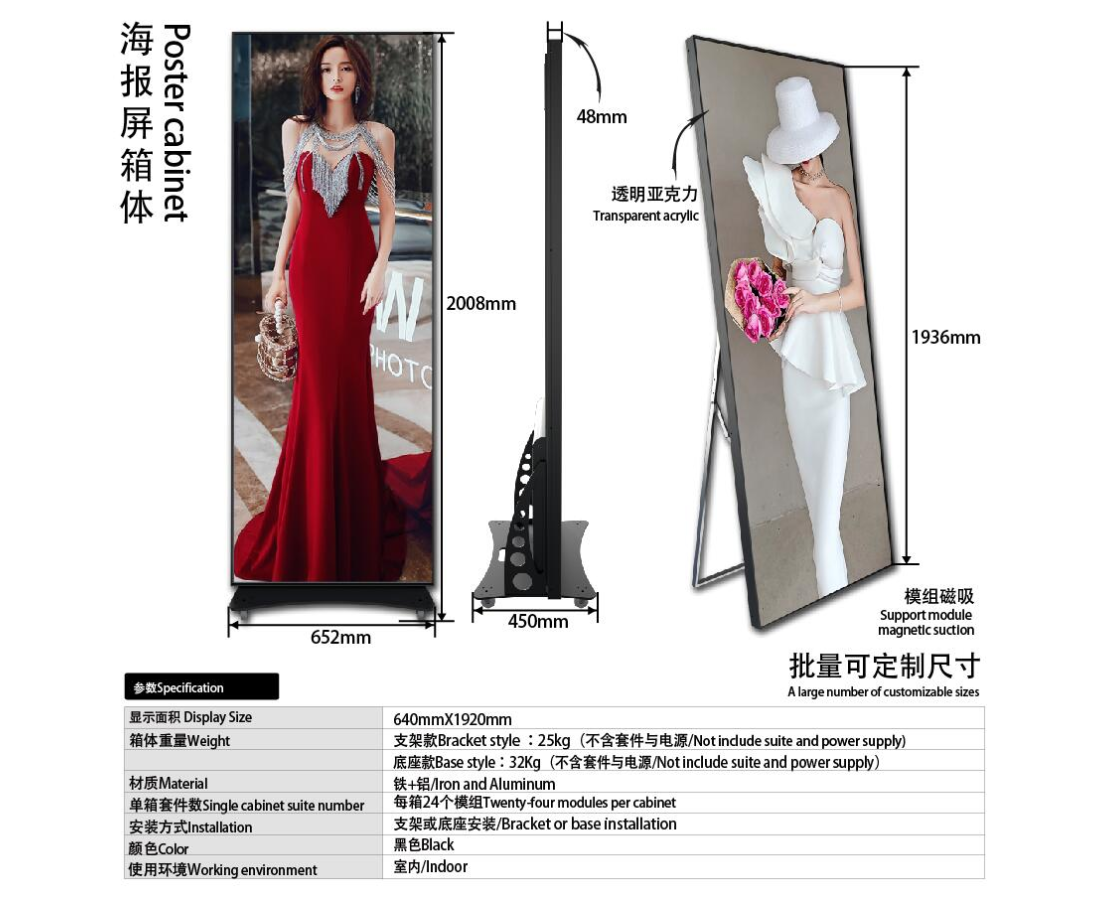

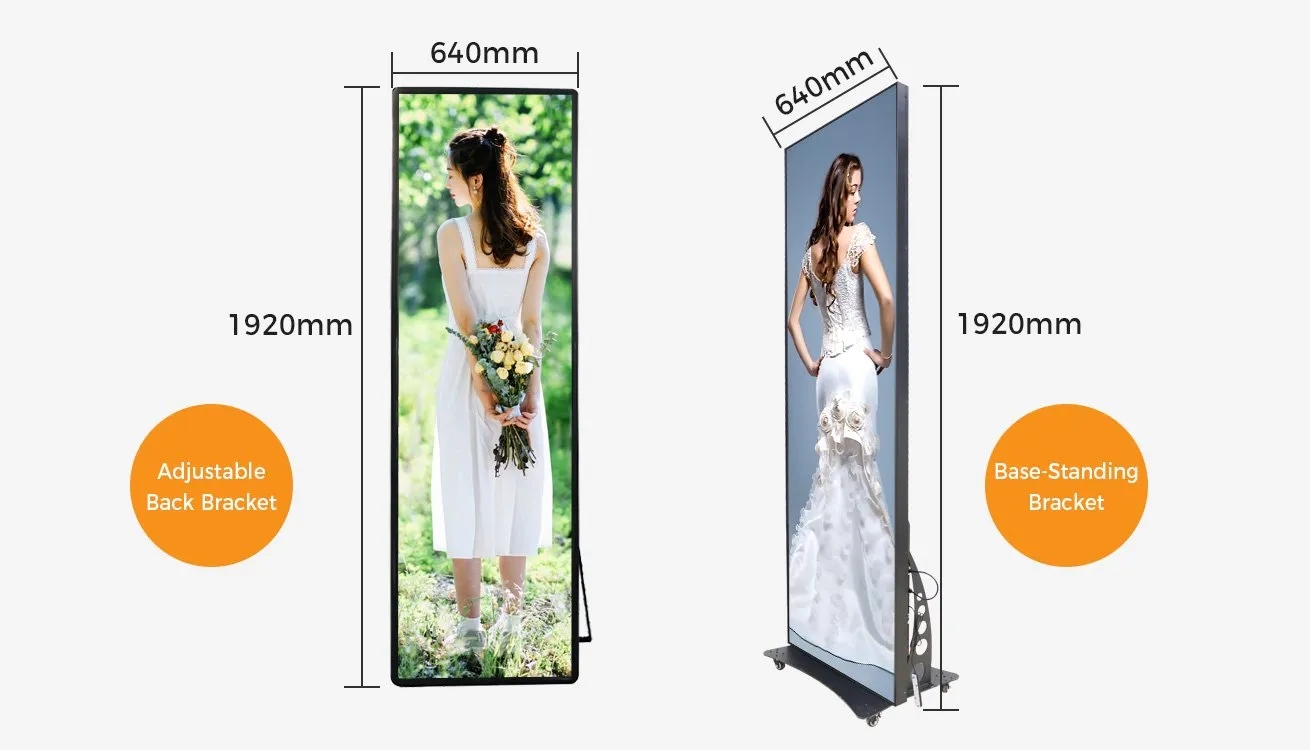

640mmx1920mm Standard Size Cabinet

640x1920mm standard size cabinet design.Suitable for all 320x160mm LED display modules

Suitable for 320x160mm Standard Size Modules

640x1920mm LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

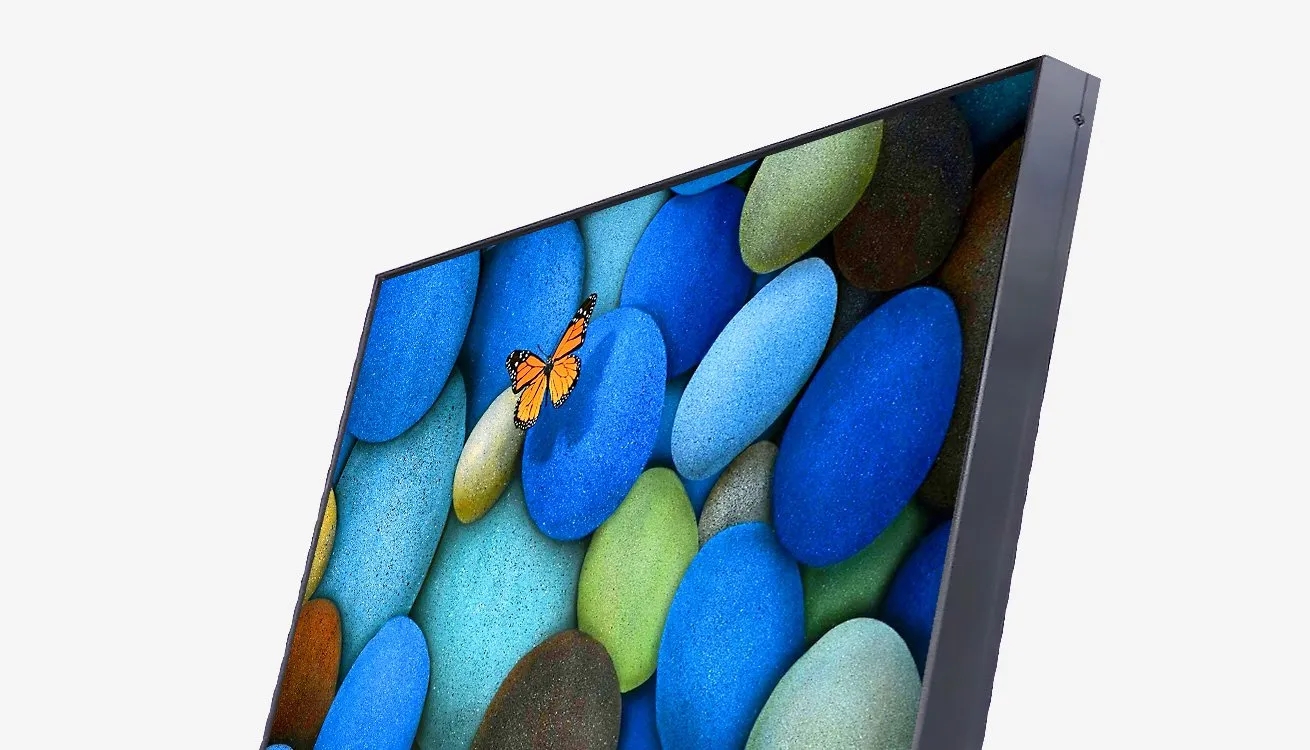

Ultra Thin

640x1920mm cabinet Standard Size series LED display with ultra thin cabinet design, the thickness is 100mm.
Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.

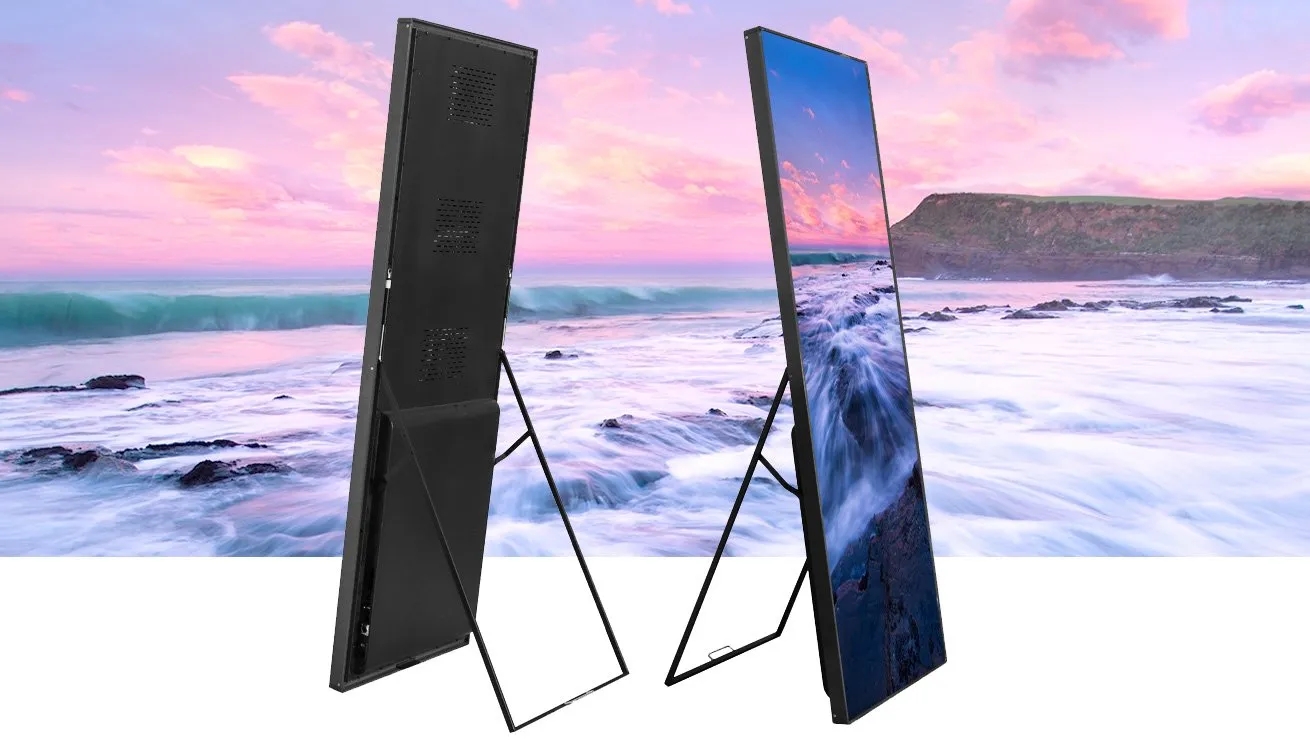

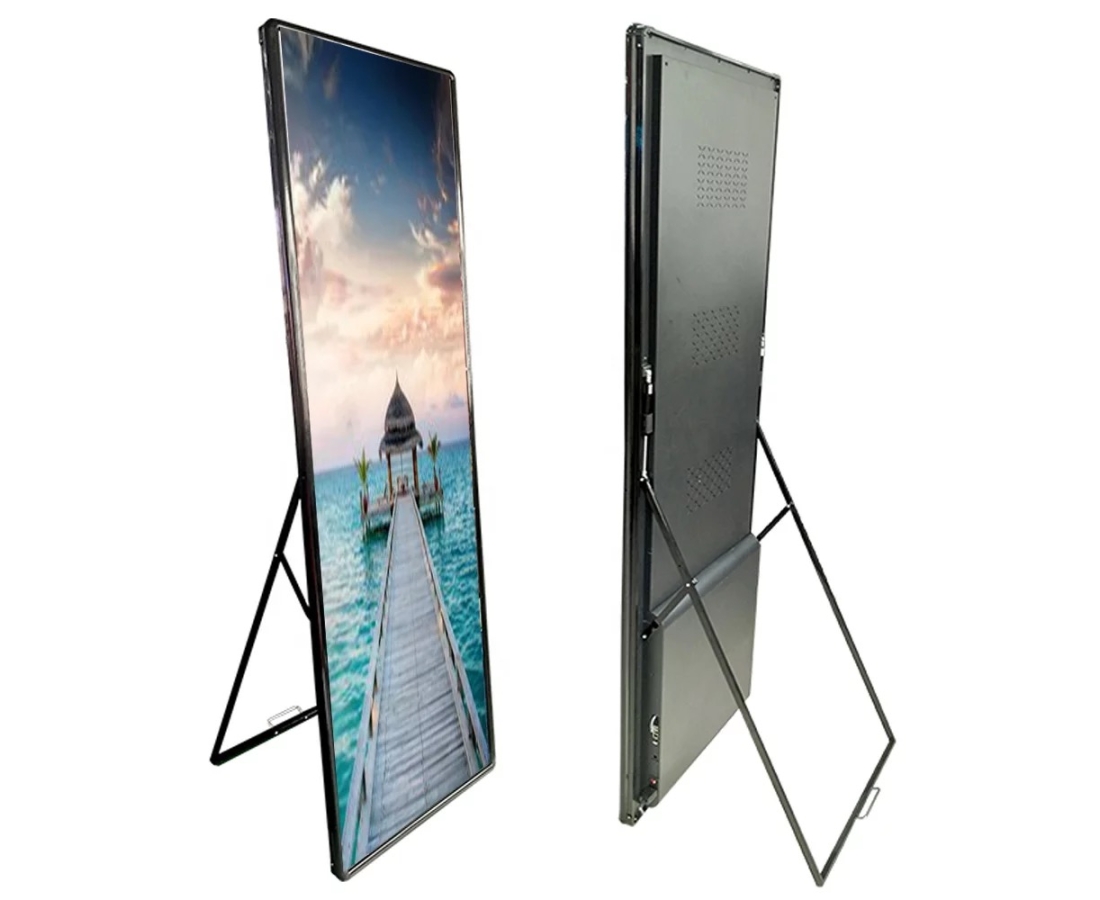

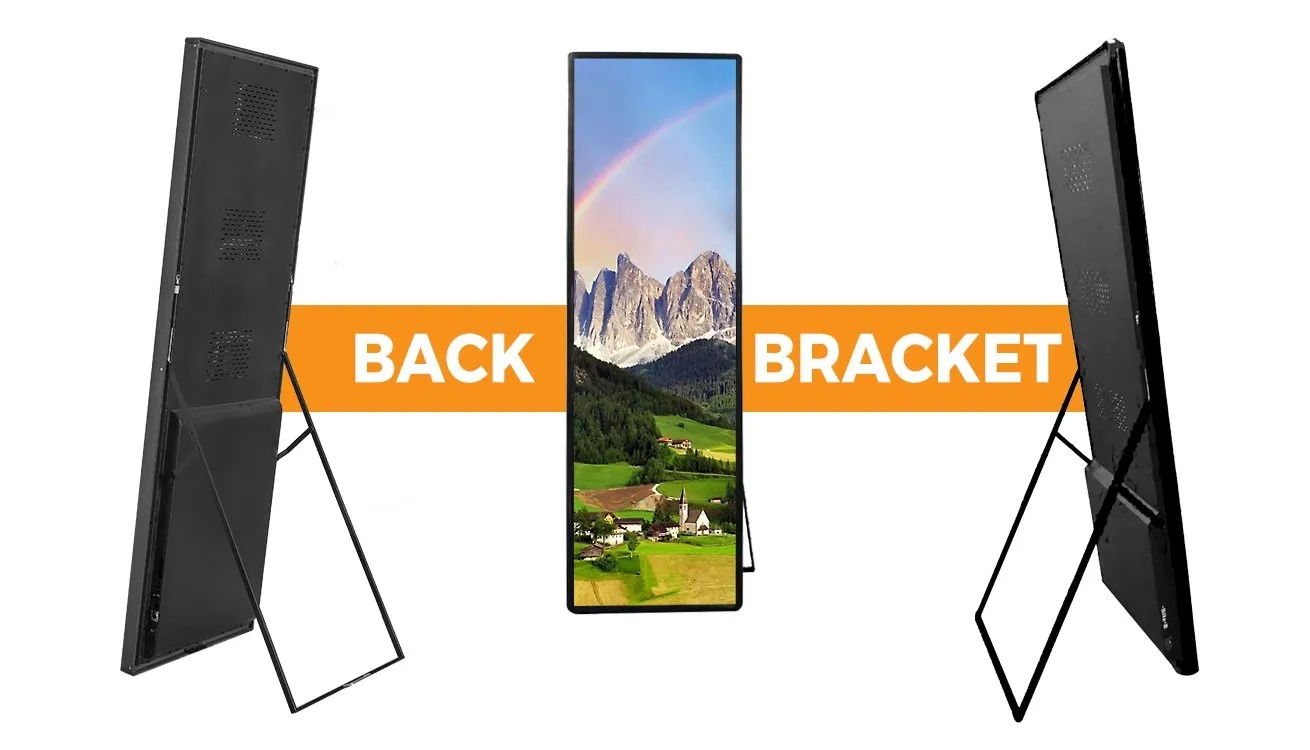

Adjustable Back Bracket

EA1920iP Series LED Poster Screen equiped with Hydraulic Back Bracket, which make it stably standing on ground.
Also this unique feature to make adjustable viewing angle available, and more and more audience can be reached.
Back Bracket is easily pull out when you want to support the LED poster and put in when you dont need it.

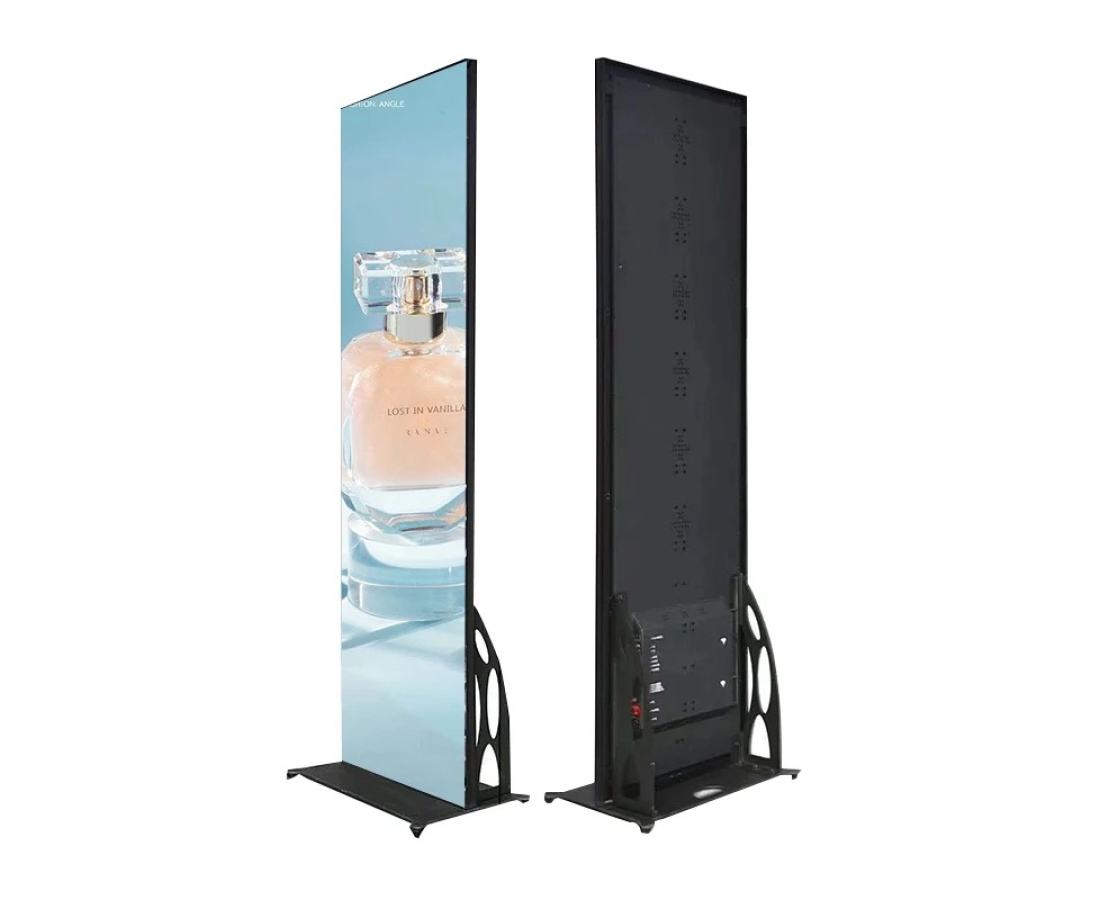

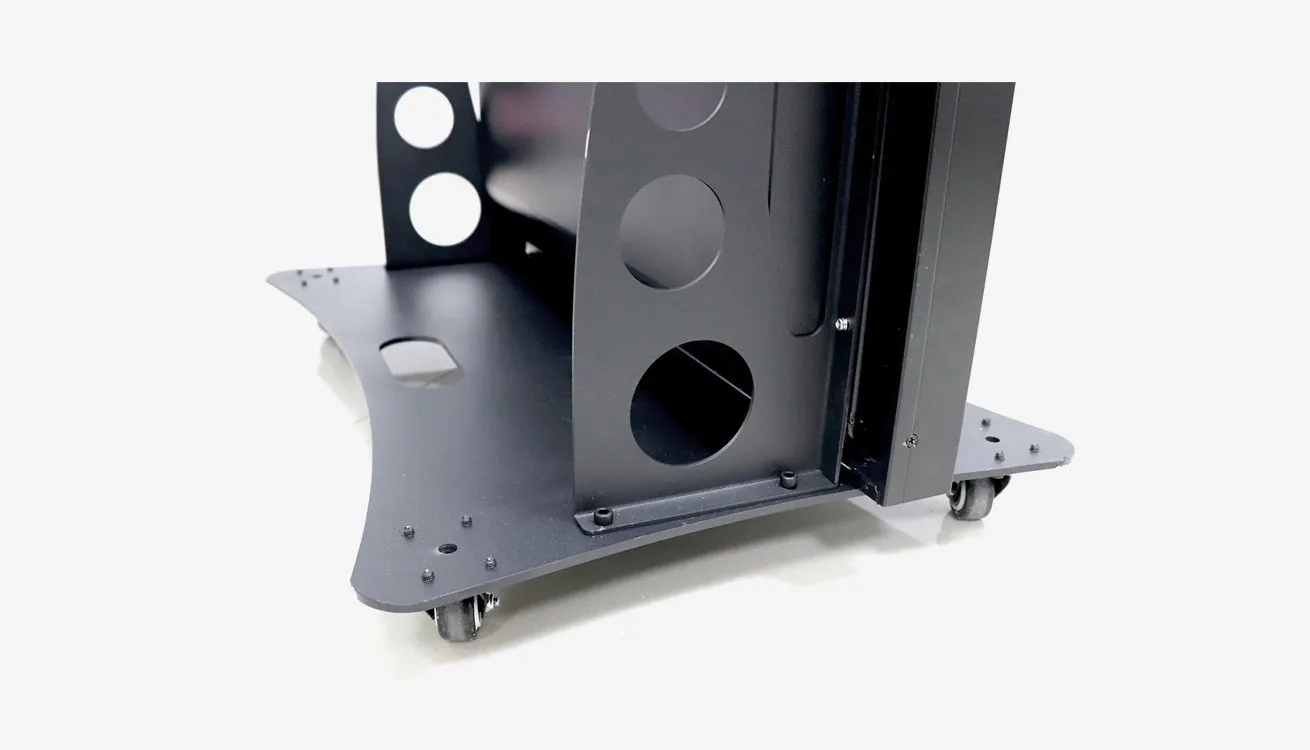

Unique Base-Standing Bracket

The base stand comes with 4 wheels that make the poster LED screen rotate freely and allow free movement in all directions.

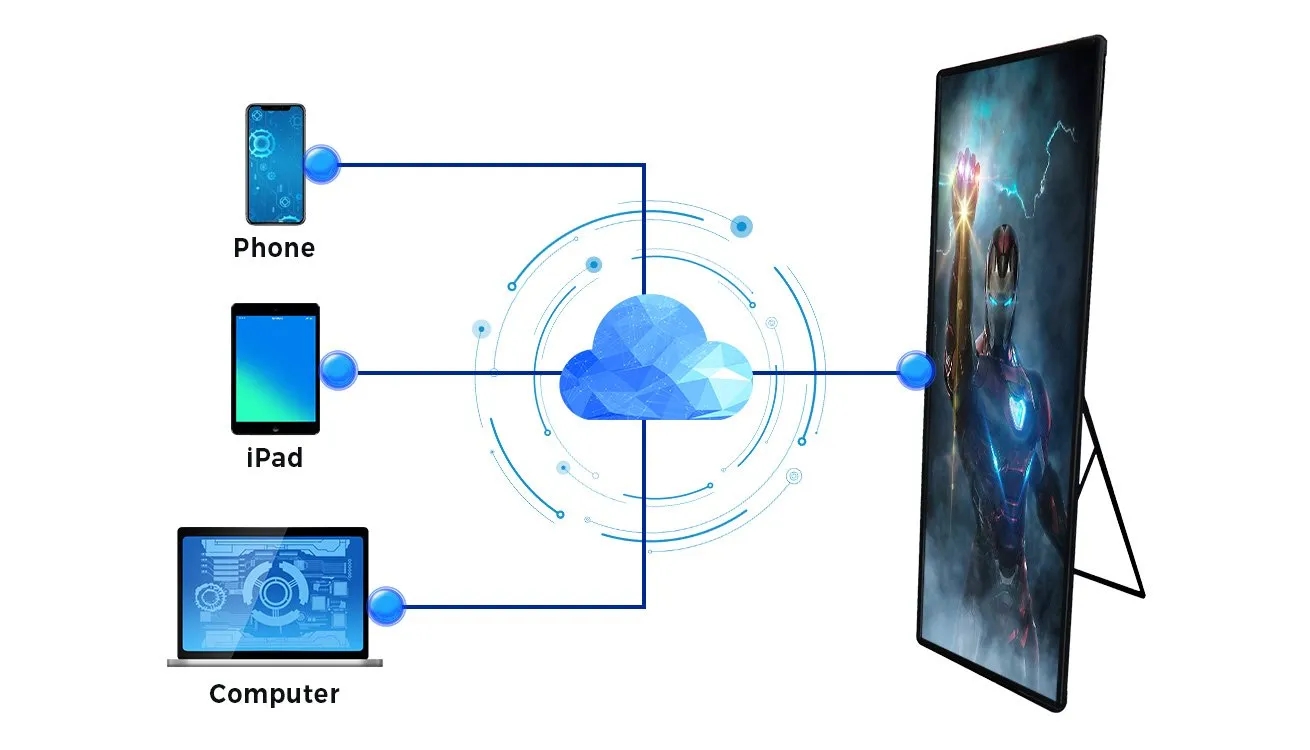

Smart Cloud Management

EA1920iP Series poster LED Screen support Synchronous & asynchronous control system,the LED screen content can be
updated via ipad, phone, PC computer, or notebook.Real time play, Cross-platform publish. Support USB or WIFI,
Support operation by IOS or Android devices.Support built-in media player to store and play content.

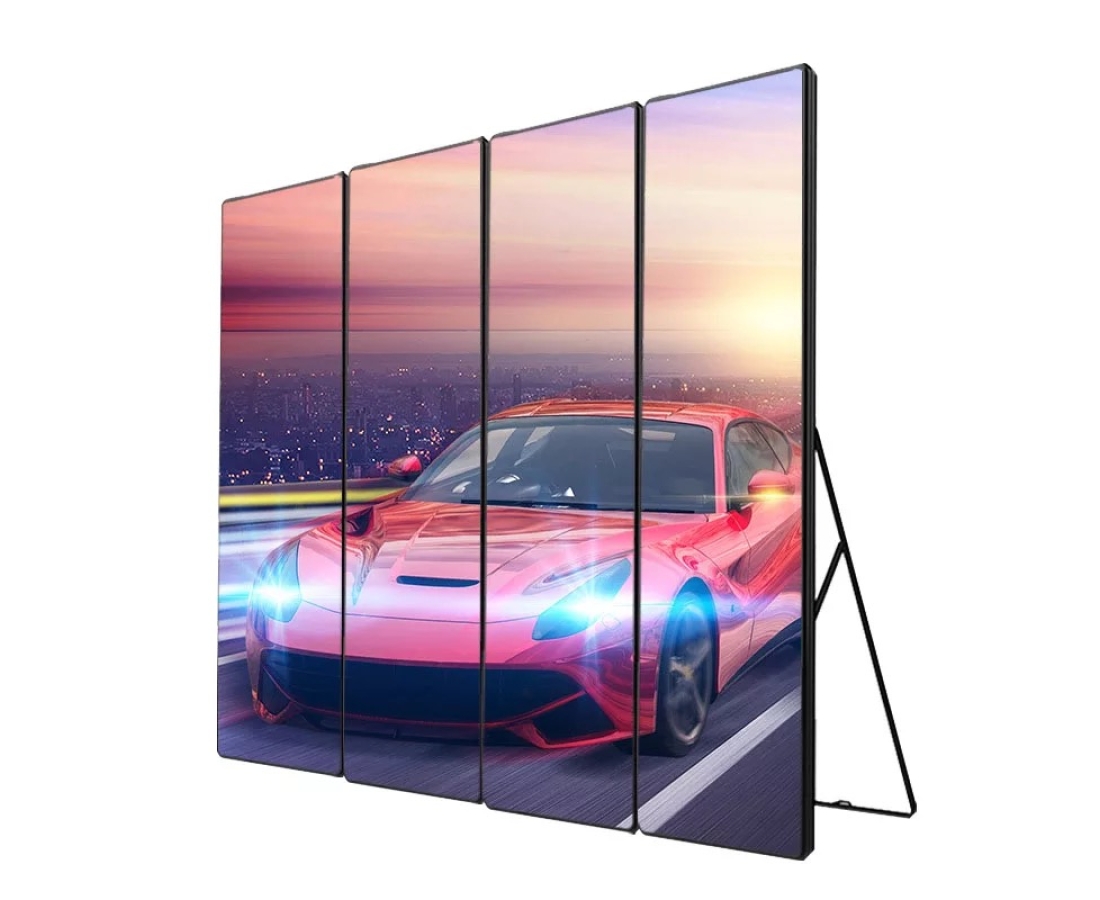

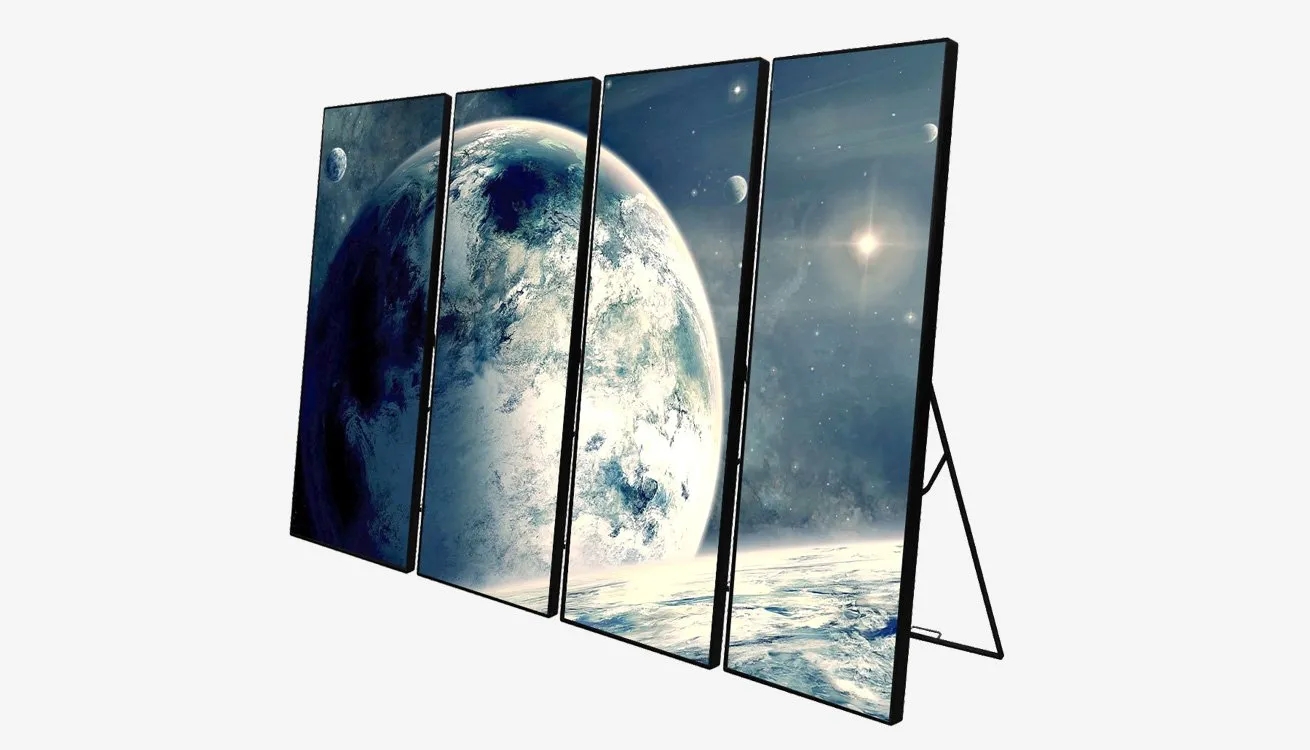

Seamless Cascade

EA1920iP Series poster LED display can be seamless cascade with multi screen to reach a large one.
LED screen can play as one big screen or separately.

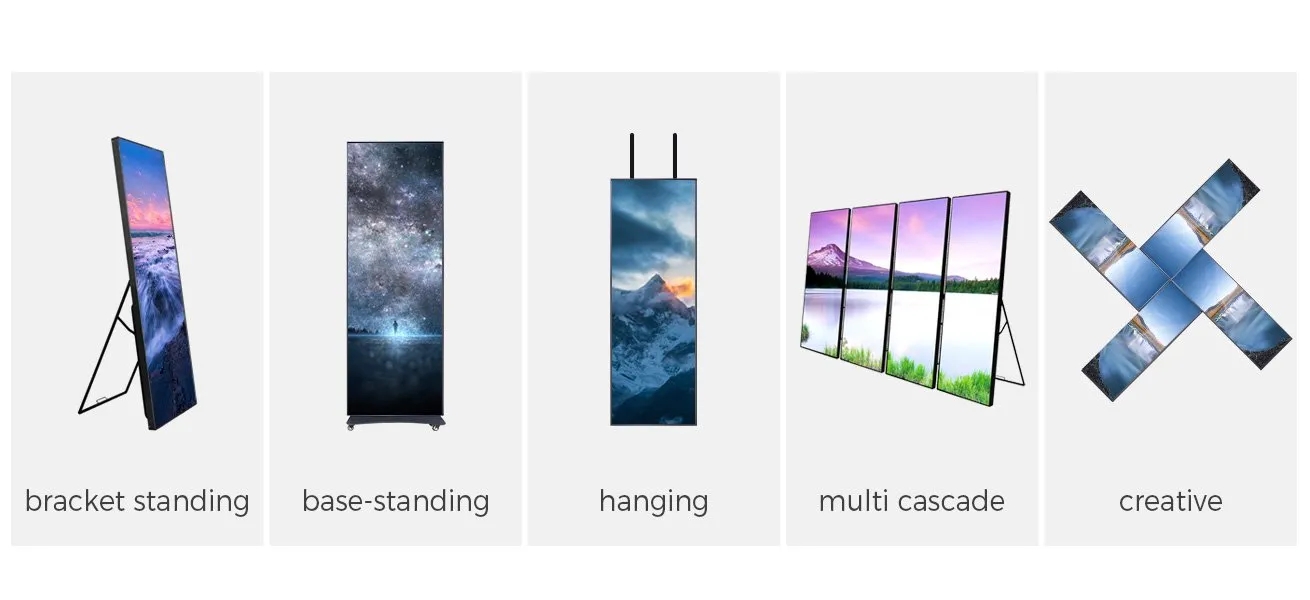

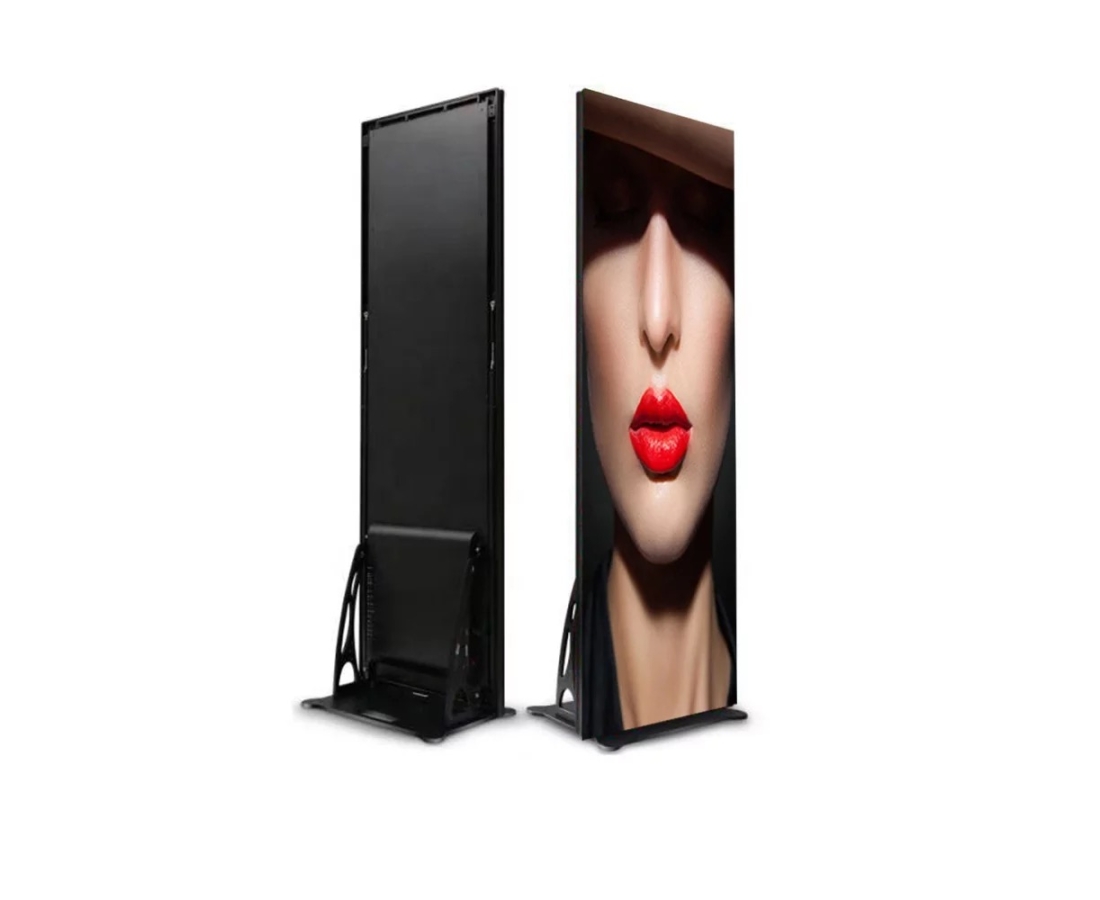

Multi-installation Method

EA1920iP Series poster LED display support Multi-installation ways,
The product is suitable for bracket standing installation, base-standing installation, lifting or hanging installation,
multi cascade installation and creative installation. no need steel structure to install, convenient and quickly.

Indoor 640x1920mm LED Poster Display Series Parameter

Pixel Pitch (mm)	P1.86	P2	P2.5	P3.076
Model	P1.86	P2	P2.5	P3.076
Pixel Configuration	SMD1515	SMD1515	SMD2121	SMD2121
Density (Pixels/㎡)	288,906	250,000	160,000	105,689
Module Resolution (Pixel)	172x86	160x80	128x64	104x52
Module Size (mm)	320x160	320x160	320x160	320x160
Driving Mode (Duty)	1/43	1/40	1/32	1/26
Cabinet Size (mm)	640x1920	640x1920	640x1920	640x1920
Cabinet Weight (KG)	40	40	40	40
Brightness (CD/㎡)	≥500	≥800	≥1,000	≥1,000
Viewing Angle (°)	140	140	140	140
Gray Grade (Bits)	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	580	439	457	413
Avg. Power Consumption (W/㎡)	195	150	153	138
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥1,920	≥1,920	≥1,920	≥1,920
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000
Protection Grade	IP31	IP31	IP31	IP31
