We select the best driver ICs for indoor LEDs with high reliability,
and contrast ratio to meet the needs of high refresh rate, high grayscale and optimal color uniformity.

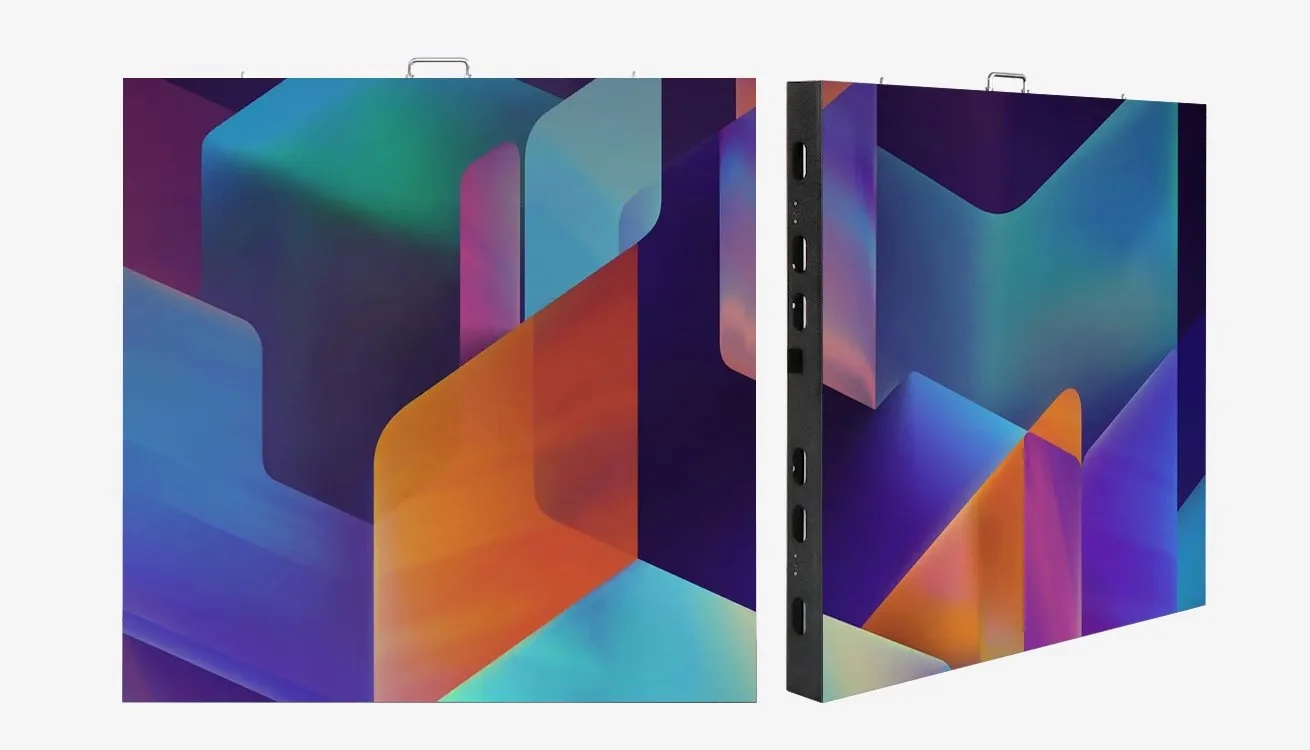

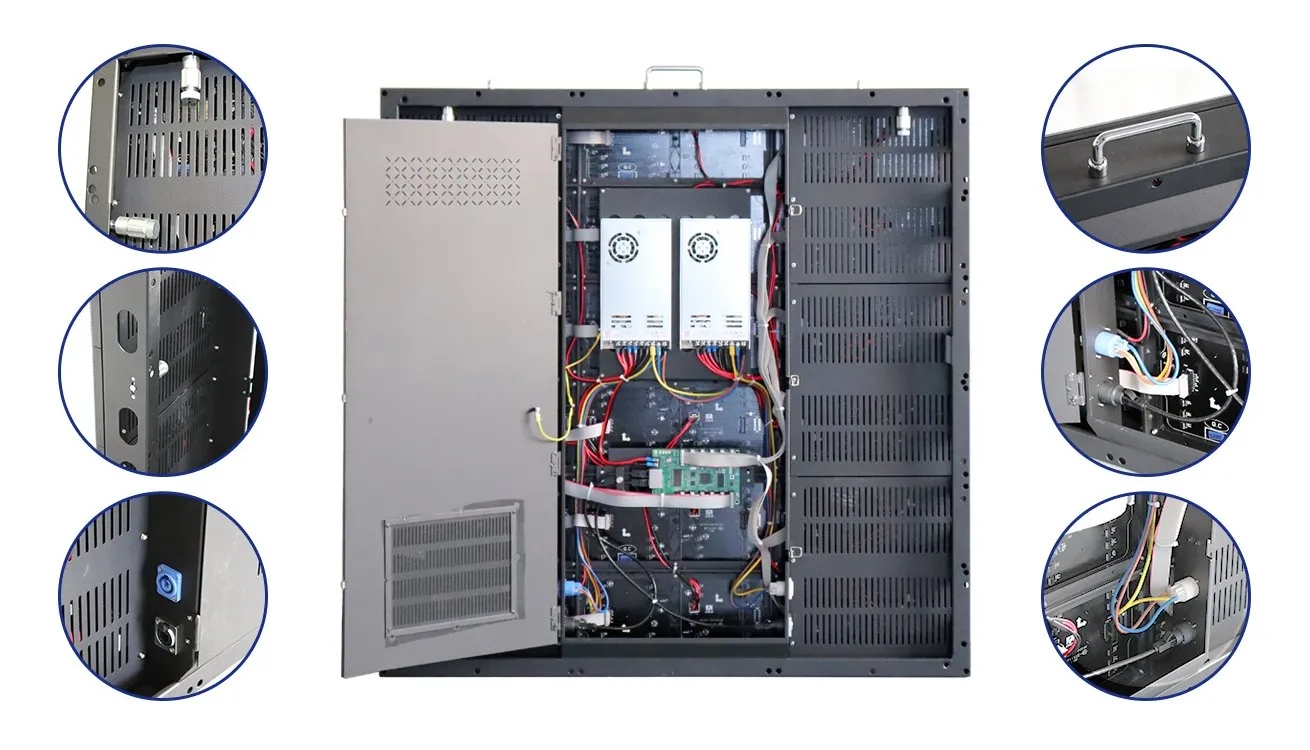

Indoor fixed installation LED display products are lighter in weight, LED display with quick lock function,
compact structure, easy to install.The user-friendly handlebar design makes it easier to move the cabinet

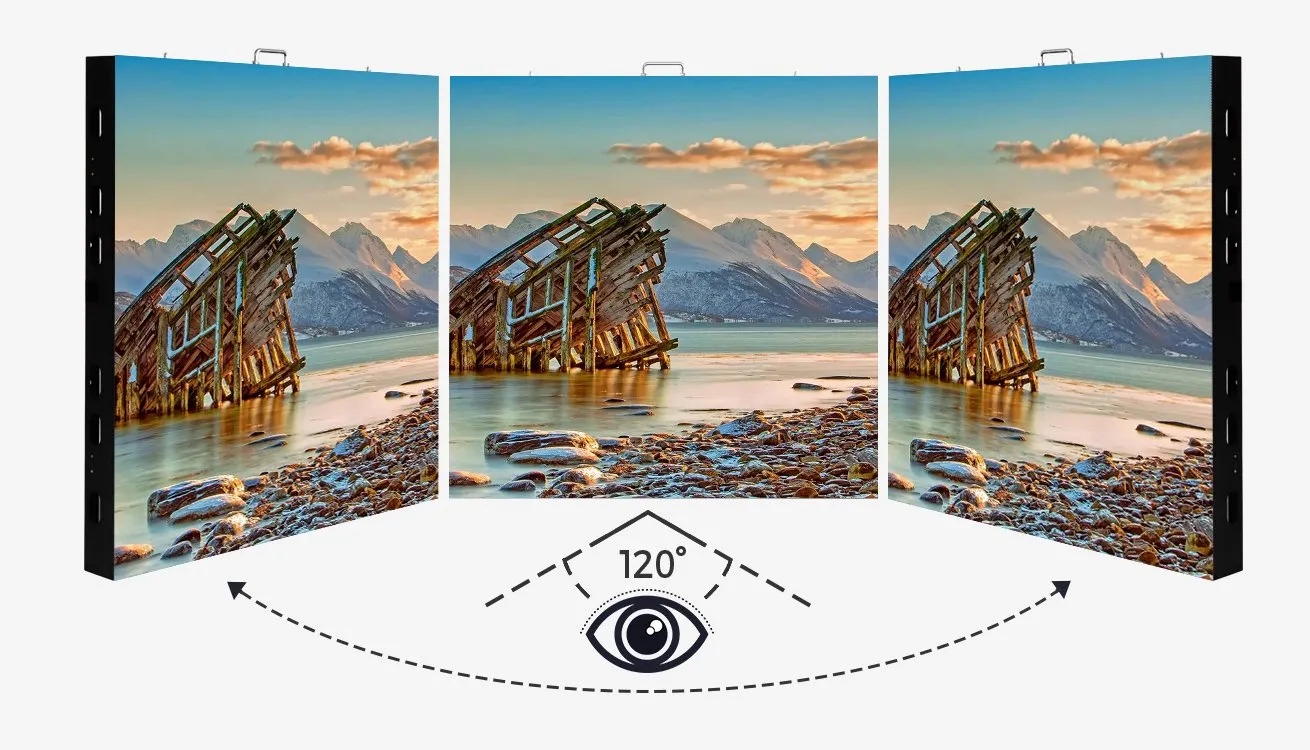

Viewing angle is up to 120° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
Pixel Pitch |
P3 |
P3(die-cast) |
P4 |
P4(die-cast) |
P4(die-cast) |
P5 |
Pixel Configuration |
P3-768x768 |
P3-C768x768 |
P4-512x512 |
-P4-C768x768 |
P4-C1024x768 |
P5-640x640 |
Pixel Configuration |
SMD2121 |
SMD2121 |
SMD2121 |
SMD2121 |
SMD2121 |
SMD2121 |
Density (Pixels/㎡) |
111,111 |
111,111 |
62,500 |
62,500 |
62,500 |
40,000 |
Module Resolution (Pixel) |
64x64 |
64x64 |
64x32 |
64x32 |
64x32 |
64x32 |
Module Size (mm) |
192x192 |
192x192 |
256x128 |
256x128 |
256x128 |
320x160 |
Driving Mode (Duty) |
1/32 |
1/32 |
1/16 |
1/16 |
1/16 |
1/16 |
Cabinet Size (mm) |
768x768 |
768x768 |
512x512 |
768x768 |
1024x768 |
640x640 |
Cabinet Weight (KG) |
12 |
12 |
8 |
12 |
16 |
11 |
Brightness (CD/㎡) |
≥1,000 |
≥1,000 |
≥1,200 |
≥1,200 |
≥1,200 |
≥1,000 |
Viewing Angle (°) |
140 |
140 |
140 |
140 |
140 |
140 |
Gray Grade (Bits) |
14 |
14 |
14 |
14 |
14 |
14 |
Operation Power |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) |
525 |
525 |
580 |
580 |
580 |
312 |
Avg. Power Consumption (W/㎡) |
175 |
175 |
190 |
190 |
190 |
104 |
Frame Frequency (Hz) |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
Refresh Frequency (Hz) |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
Working Temperature (ºC) |
-20~+60 |
-20~+60 |
-20~+60 |
-20~+60 |
-20~+60 |
-20~+60 |
Lifetime (Hours) |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
Protection Grade |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
