NovaStar LED Display Controller MSD300-1 | MSD600-1 LED Sending Card

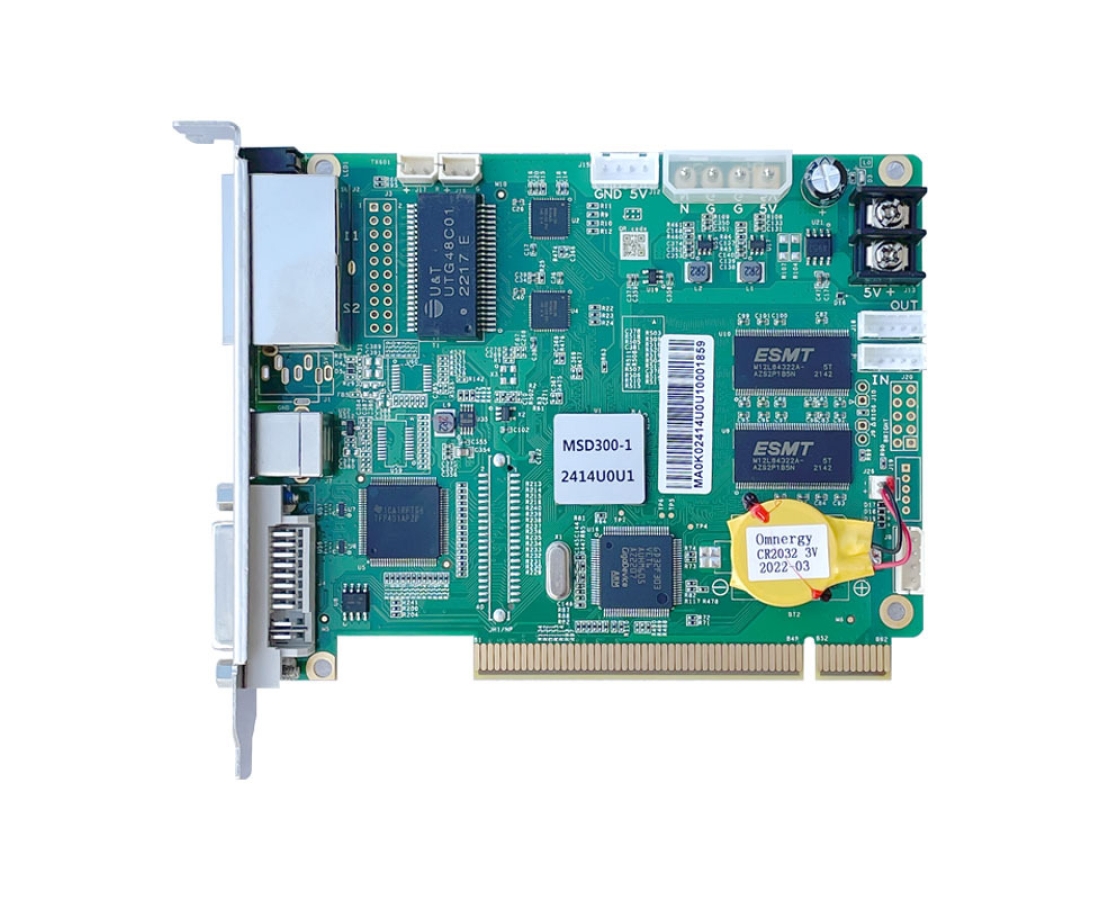

LED Sending Card Appearance


LED Sending Card Working Diagram

Novastar MSD300-1 LED Display Sending Card Description

The Novastar MSD300-1 LED Display Sending Card is a high-performance yet cost-effective solution for LED display systems, ideal for rental, live events, monitoring centers, and large sports venues. It supports single-link DVI video input up to 1920×1200@60Hz, dual Gigabit Ethernet output, pixel-level calibration, and cascading up to 20 devices. With USB Type-B control and light sensor compatibility, the MSD300-1 ensures reliable content delivery, consistent brightness and color, and flexible deployment for various professional LED installations.

Product Features:
• 1× SL-DVI video input supporting resolutions up to 1920×1200@60Hz
• Dual RJ45 Gigabit Ethernet outputs with redundancy support
• Maximum loading capacity: 650,000 pixels per port, 1,300,000 pixels per card
• USB Type-B control port for PC communication
• 2× UART ports for cascading up to 20 units
• Light sensor connector for automatic brightness adjustment
• Pixel-level brightness and chroma calibration using NovaLCT + NovaCLB
• Custom resolutions supported, interlaced input not supported
• Ideal for concerts, live events, rental setups, monitoring centers, and stadiums

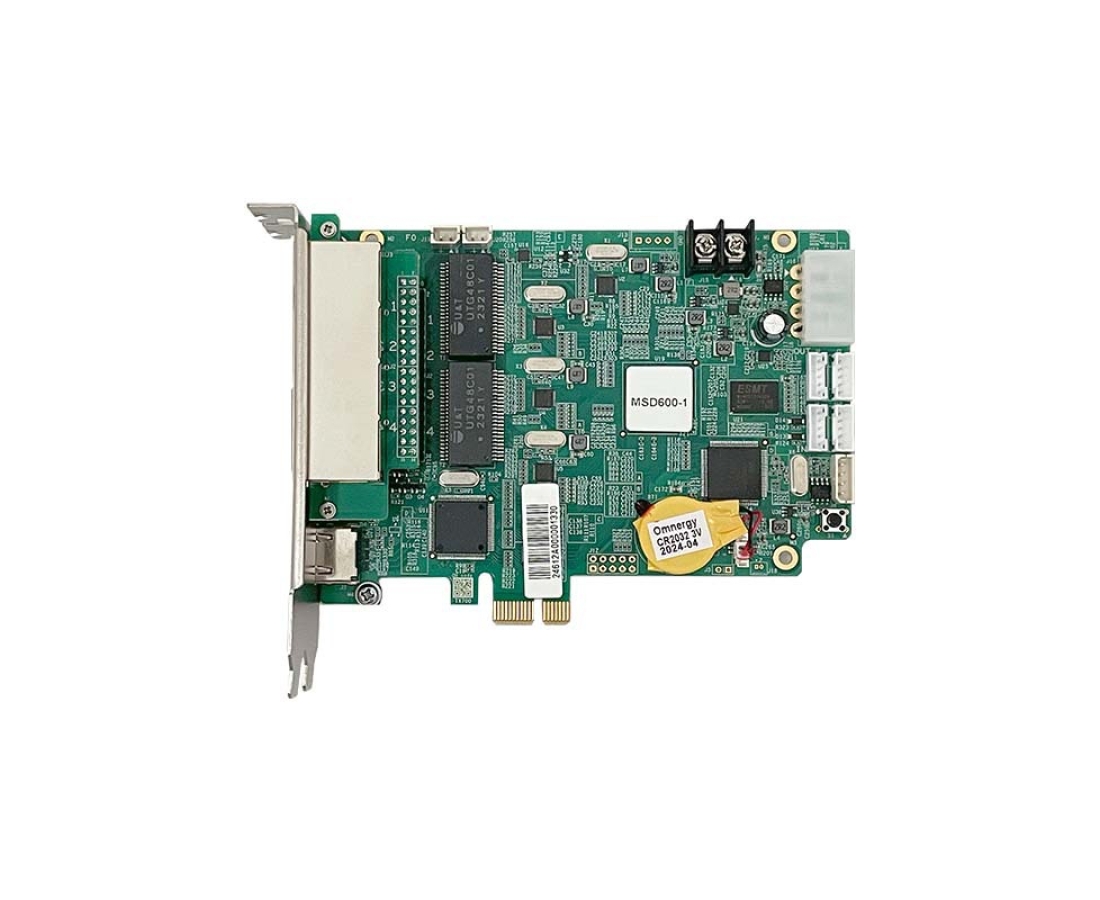

Novastar MSD600 LED Display Sending Card Description

The Novastar MSD600 is a cost-effective and reliable LED display sending card, purpose-built for both fixed and rental LED installations. It supports multiple input types, four Gigabit Ethernet outputs for data distribution, and pixel-level brightness and chroma calibration to ensure consistent visual quality. Its wide compatibility, cascading capability, and light-sensor interface make it ideal for live events, concerts, command and control centers, and large-format LED walls.

Product Features:
● Multiple Video Inputs: Supports one SL-DVI input and one HDMI 1.3 input, allowing compatibility with standard video sources.
● Audio Transmission: Dedicated AUDIO input enables direct transmission of synchronized audio content along with the video signal.
● Four Gigabit Ethernet Outputs: Distributes video data efficiently across the LED display system with stable, high-speed transmission.
● Flexible Connectivity & Control:
Type-B USB Port for PC communication and configuration
Two UART Ports for cascading up to 20 units in large-scale deployments
Light Sensor Interface for auto-brightness adjustment with supported sensors
● High Input Resolution Support: Handles resolutions up to 1920×1200@60Hz, making it ideal for Full HD content.
● Pixel-Level Brightness & Chroma Calibration: When paired with NovaStar’s precision calibration tools, the MSD600 enables consistent brightness and accurate color across every pixel of the LED display.
● Certified for Global Use: Complies with EMC, RoHS, PFoS, and FCC certifications. For use in specific regions, verify certification compliance with NovaStar.
